SANY SY95C - Machine Configuration Screen; Failure Codes Screen

3-10
MACHINE CONTROLS
SY95C Excavator OMM

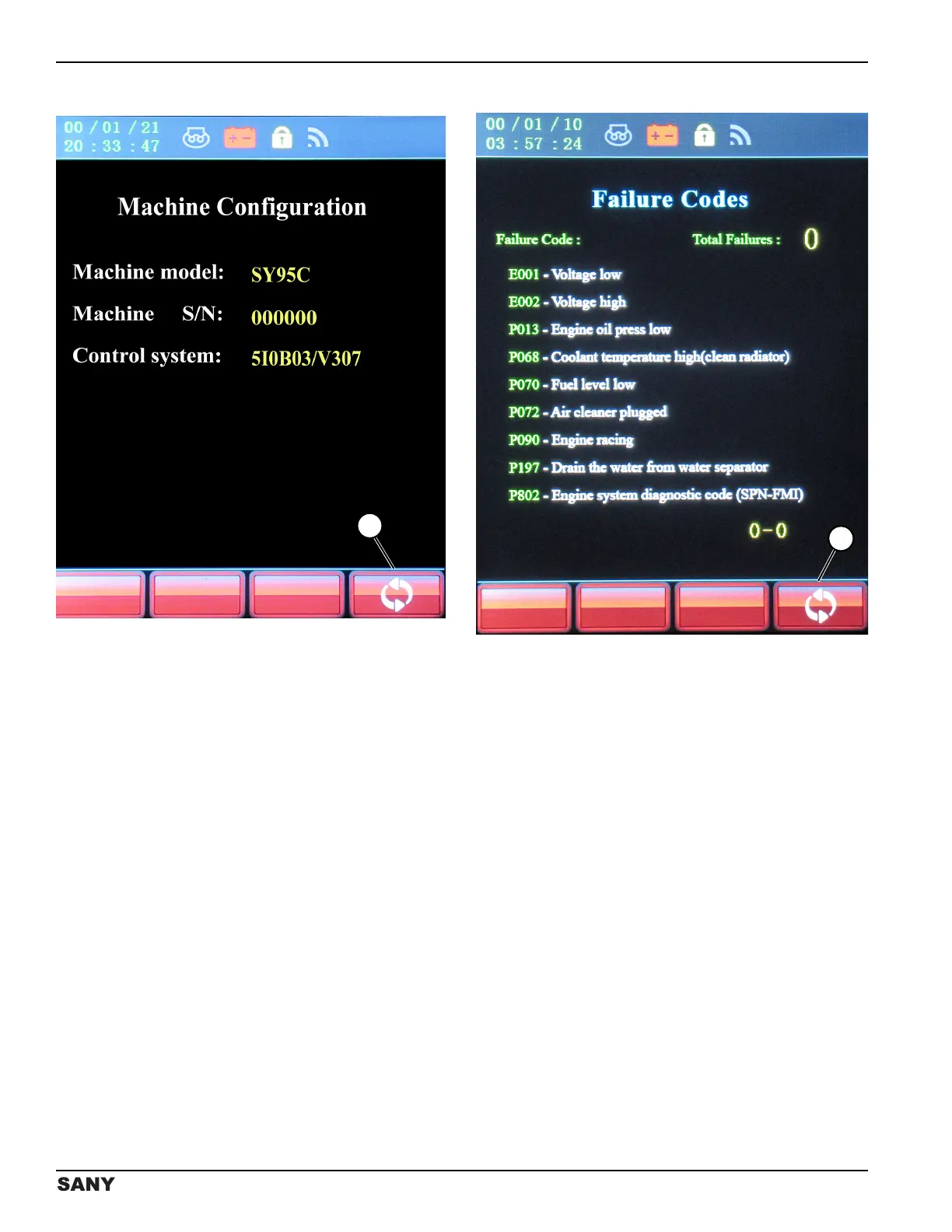

Machine Configuration Screen
0003110
Figure 3-12
Accessed from the Main Menu screen, the Machine
Configuration screen displays machine model number,
serial number, and control system information.
Press the button below the return icon (1) to return to the
previous screen.
Failure Codes Screen
0003822
Figure 3-13
The Failure Codes screen is accessed from the Main
Menu screen.
When a failure occurs, the failure information icon will
change color to blue and the failure code will be
displayed on the home screen.
The Failure Codes screen displays possible failure
codes.
Press the button below the return icon (1) to return to the
previous screen.
NOTE: SPN and FMI codes are engine diagnostic failure
codes.
