SANY SY95C - Switches

MACHINE CONTROLS
3-17SY95C Excavator OMM
Switches
15
6
14
7
12
5
10
1
2
3
4
9
13
11
8
0004467, 0004468

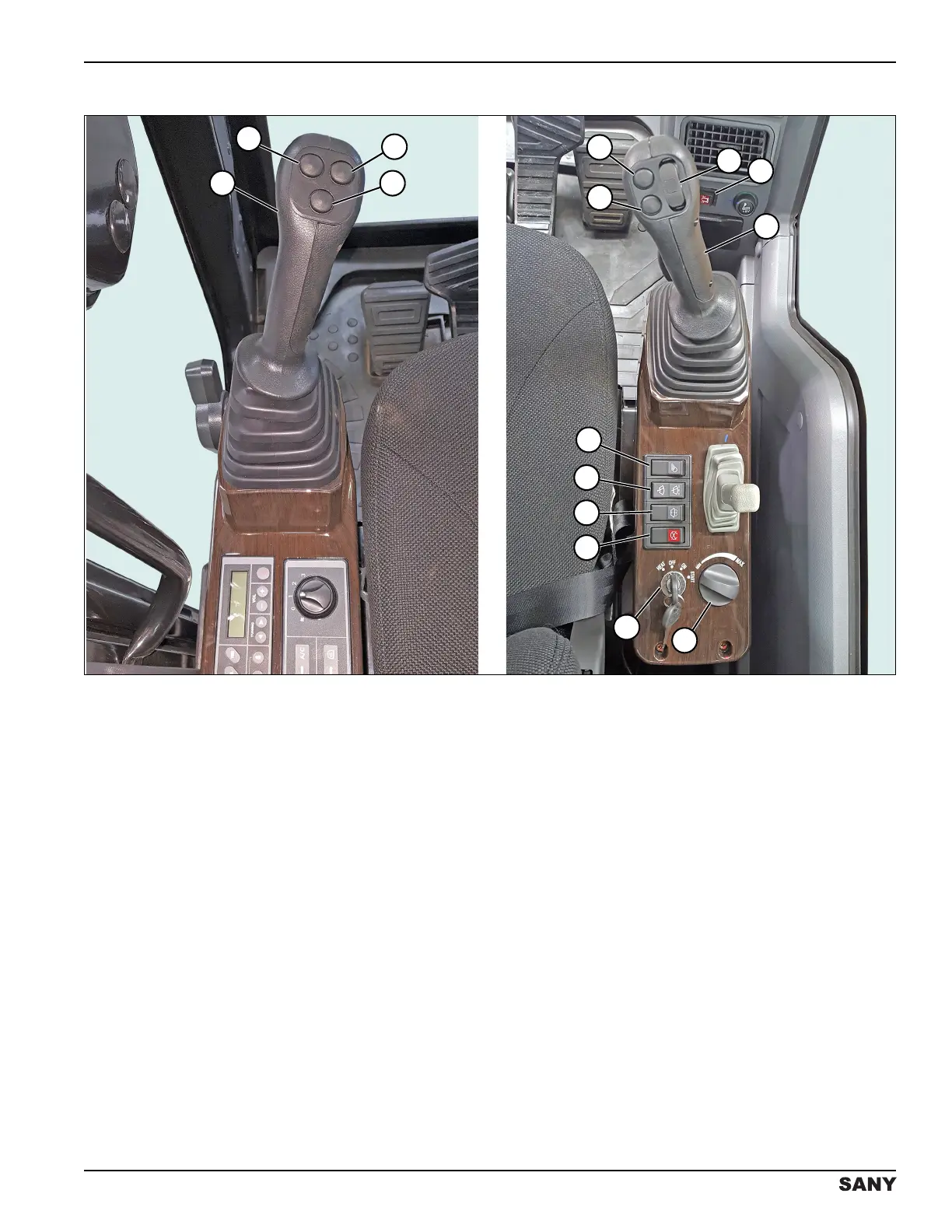

Figure 3-23
1) Left joystick (page 3-23) 9) Right joystick ( page 3-23 )
2) Quick coupler function lock (page 3-13) 10) Work light switch (
page 3-18 )
3) Quick coupler function unlock (page 3-13) 11) Windshield wiper switch (
page 3-19 )
4) Not used 12) Windshield washer switch (page 3-19)
5) Not used 13) Emergency stop switch (page 3-19)
6) Horn button (page 3-18) 14) Key switch (page 3-19)
7) Auxiliary hydraulic switch (page 3-18) 15) Throttle control dial (page 3-20)
8) Travel alarm switch (page 3-20)
