MAINTENANCE
5-45SY95C Excavator OMM
Cab

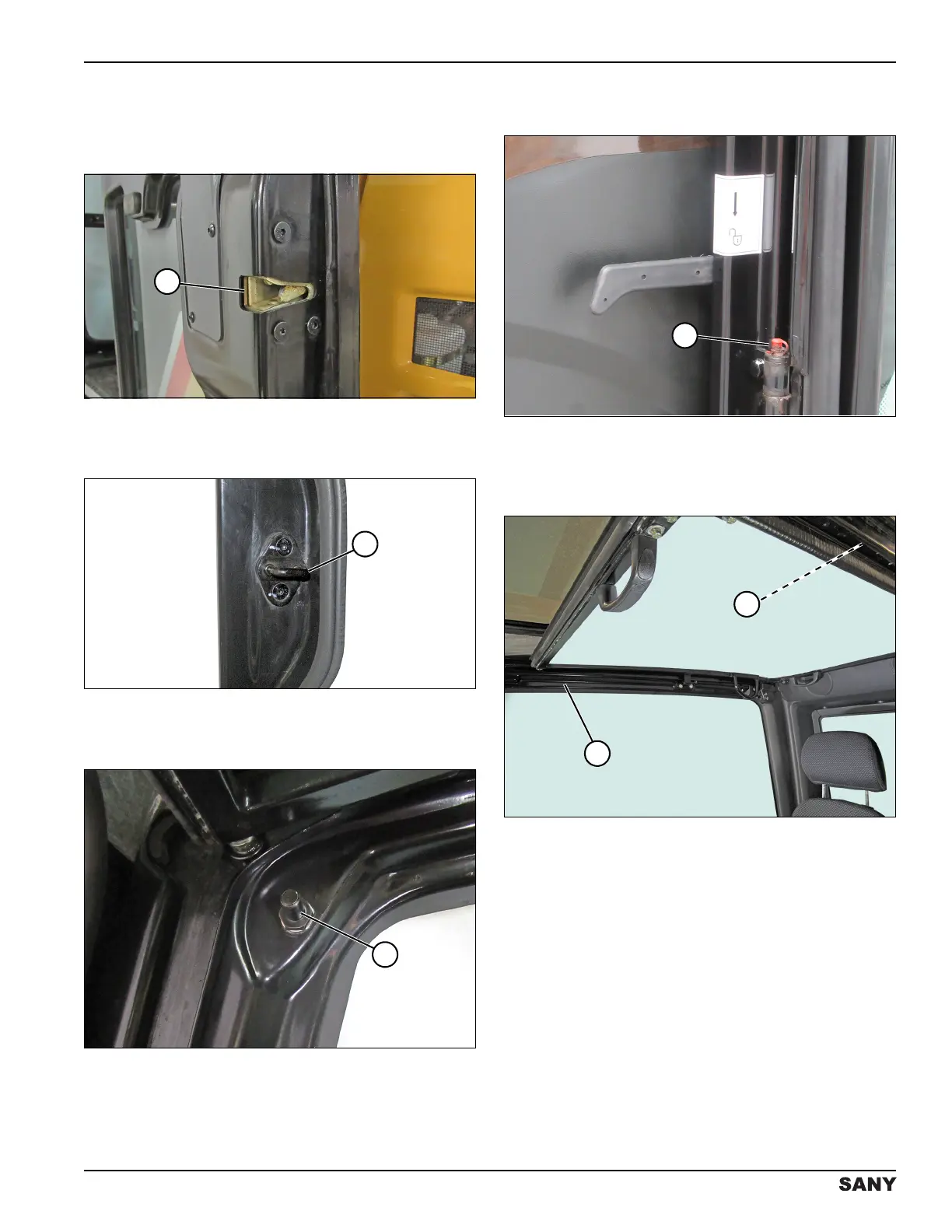

Inspect the Cab Door Lock and Front
Window Lock Catch
0002966
Figure 5-84
Check the body (1) of the cab door lock for loose or
damaged components.
0002967
Figure 5-85
Check the lock catch (2) of the cab door lock. Make sure
it is tight and not damaged.
0004548
Figure 5-86
Check the windshield lock catches (3) inside the cab (one
on each side). Make sure they are tight and not
damaged.
Inspect and Lubricate the Cab Door Hinges
and Front Window Slide Rail
0004455
Figure 5-87
Remove the protective cover and grease the two cab
door hinges (1) until grease comes out of the hinge. Wipe
off excess grease.
0004486
Figure 5-88
Apply a lubricating silicone to the slide rails (2) on both
sides of the cab door ceiling.
1
2
3
1
2
2
