MACHINE CONTROLS
3-9SY95C Excavator OMM

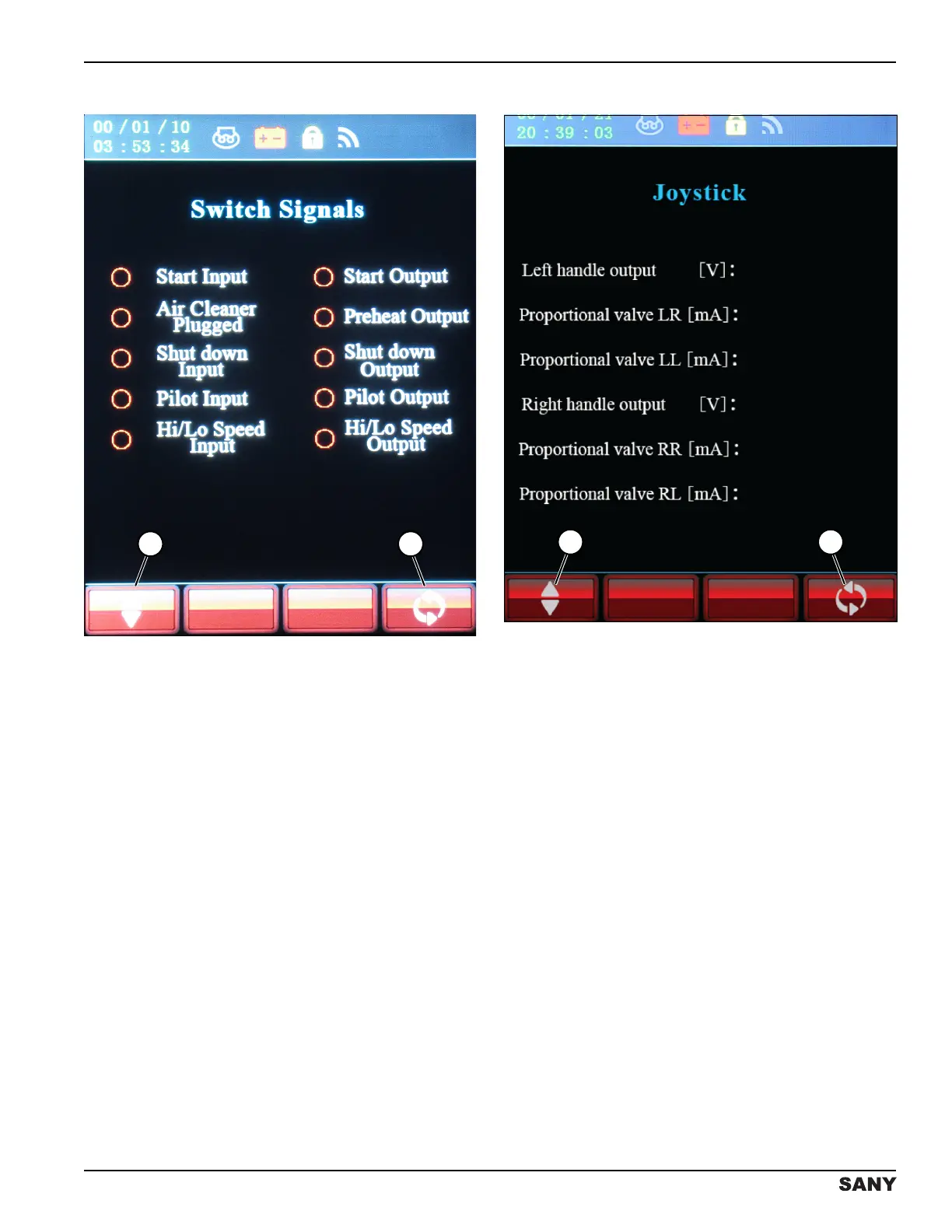

Switch Signals Screen
0003813
Figure 3-10
The Switch Signals screen enables the operator to
monitor the input and output of switch functions:
• Press the button below the up/down arrow icon (1)
to scroll to the next active machine function page.
• Press the button below the return icon (2) to return
to the Main Menu screen.
Joystick Screen
0003814
Figure 3-11
The Joystick screen displays real-time joystick control
valve information:
• Press the button below the up/down arrow icon (1)
to scroll to the next active machine function page.
• Press the button below the return icon (2) to return
to the Main Menu screen.
To Next Page
