MACHINE OPERATION
4-9SY95C Excavator OMM
5. When only clean fuel flows through the drain valve,
close and tighten the valve.
6. Start the engine and check for leaks. See “Starting
the Engine” on page 4-13.

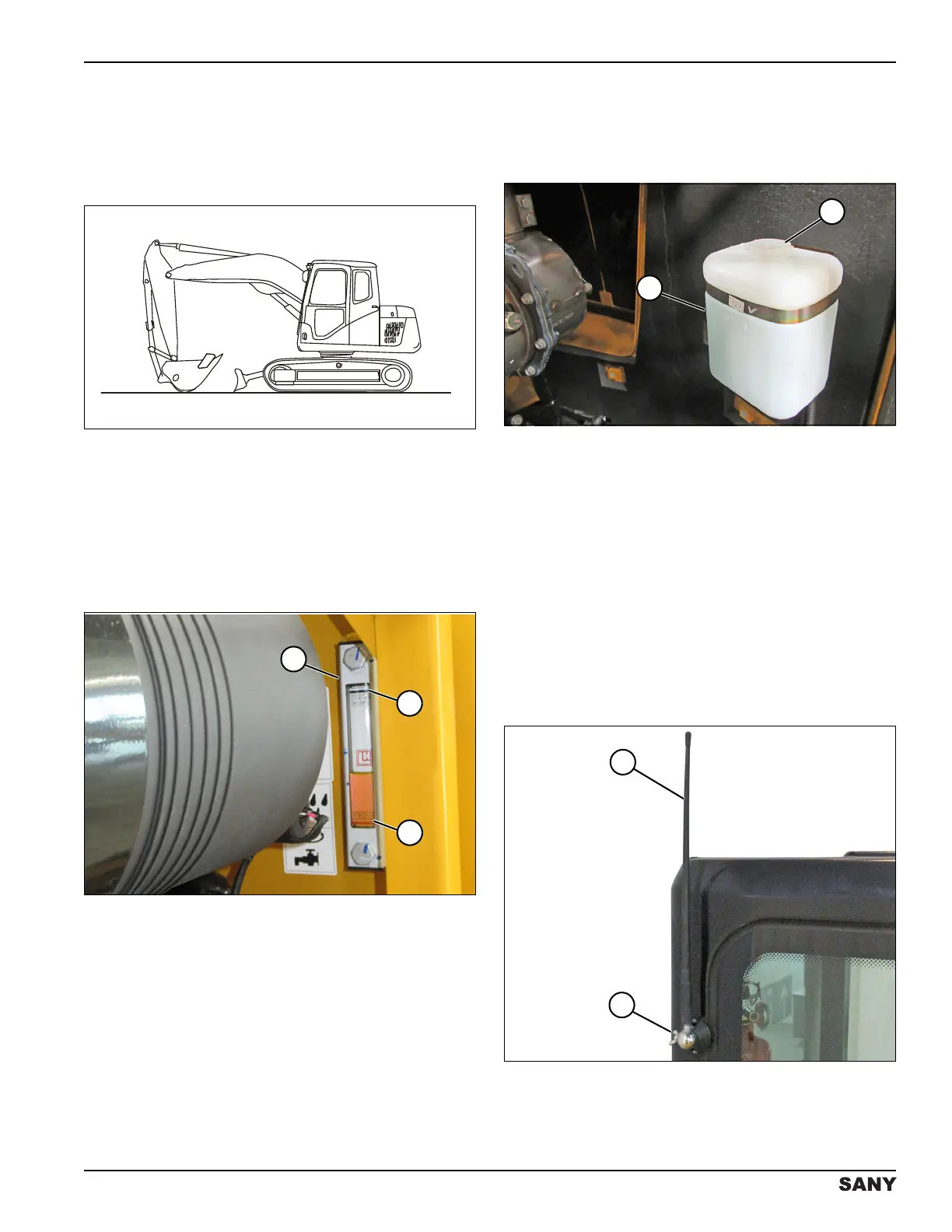

Check the Hydraulic Oil Level
0003969
Figure 4-10
NOTE: The work equipment should be positioned as
shown above before checking the hydraulic oil
level.
1. Prepare the machine for maintenance. See
“Maintenance Safety” on page 2-5.
2. Open the right rear access door. See “Right Rear
Access Door” on page 5-15.
0003989
Figure 4-11
3. Check the hydraulic oil level in the hydraulic tank
through the sight gauge (1). The hydraulic oil level
should be between the high level (2) and low level (3)
marks.
4. If the level is below the low mark, add hydraulic oil.
See “Add Hydraulic Oil” on page 5-32.
Check and Fill the Windshield Washer
Fluid
1. Prepare the machine for service. See “Maintenance
Safety” on page 2-5.
0004569
Figure 4-12
NOTE: Keep dust and dirt out of the windshield washer
tank when adding window washer fluid.
2. Open the left rear access door. See “Left Rear
Access Door” on page 5-15.
3. Check the fluid level in the windshield washer tank
(1).
4. If necessary, remove the filler cap (2) and add
windshield washer fluid. See “Windshield Washer
Fluid” on page 5-7.
5. Install the filler cap after filling.
Antenna Adjustment
0002861
Figure 4-13
When transporting or parking the machine, loosen the
wing nut (2) and lower the antenna (1) to prevent
breakage.
