MACHINE CONTROLS
SY95C Excavator OMM
• Bucket dump (3)
• Boom up (4)
• Neutral (N)
NOTES:
• The joystick controls return to the neutral position
automatically when released. The functions of the
machine will stop.
• In longitudinal excavation, rotate the undercarriage
so the travel motors are behind the upper structure
to maximize the stability and lift capacity of the
machine.

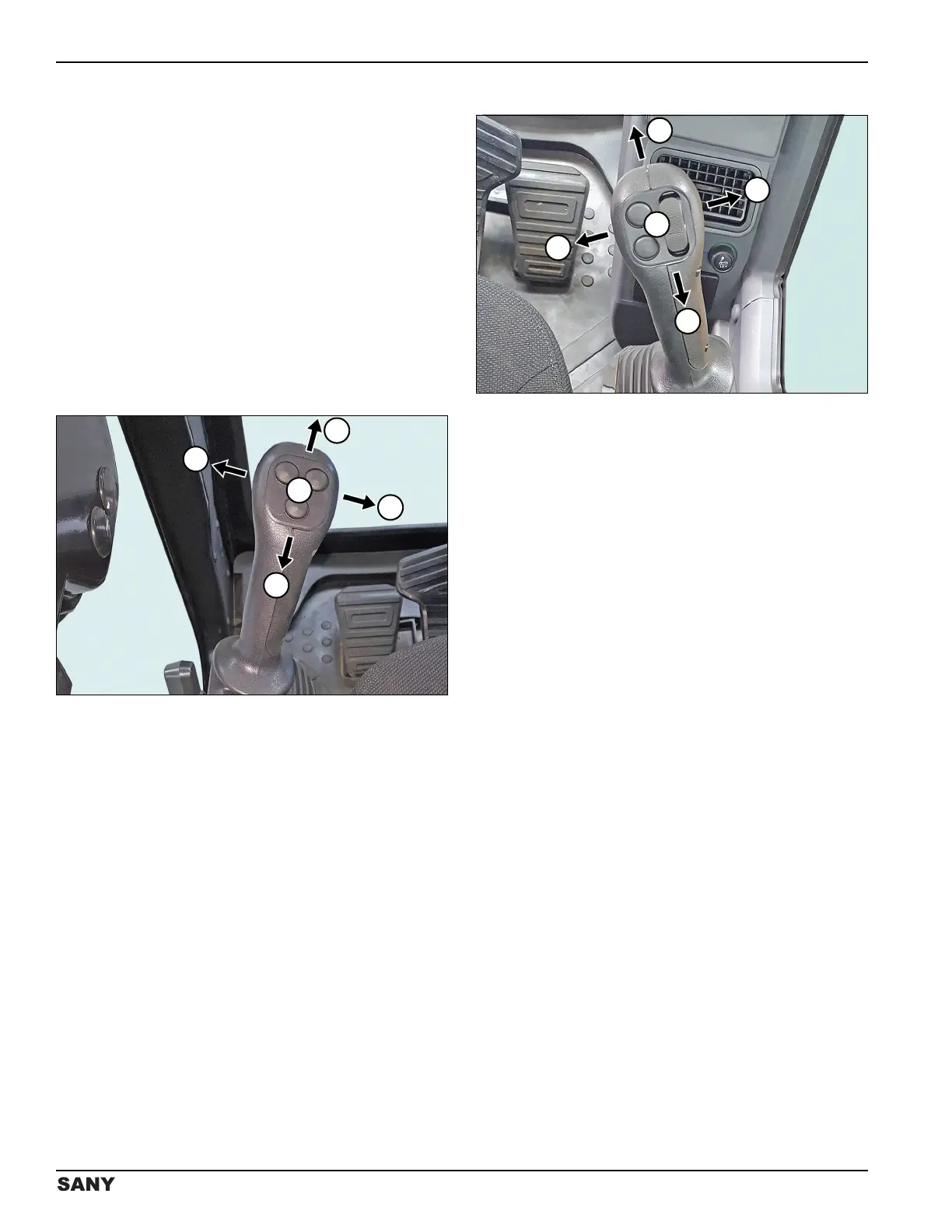

Joystick BHL Mode
Left Joystick – BHL Mode
0004473
Figure 3-45
The BHL mode uses the left joystick to control the boom
and upper structure:
• Swing the upper structure to the left (1)
• Boom down (2)
• Swing the upper structure to the right (3)
• Boom up (4)
• Neutral (N)
Right Joystick – BHL Mode
0004474
Figure 3-46
The BHL mode uses the right joystick to control the arm
and bucket:
• Bucket dig (1)
• Arm out (2)
• Bucket dump (3)
•Arm in (4)
• Neutral (N)
NOTES:
• The joystick controls return to the neutral position
automatically when released. The functions of the
machine will stop.
• In longitudinal excavation, rotate the undercarriage
so the travel motors are behind the upper structure
to maximize the stability and lift capacity of the
machine.
