Sanyo PLC-XP200L Service Manual

-134-
Mechanical Parts List
KR7-XP200L00

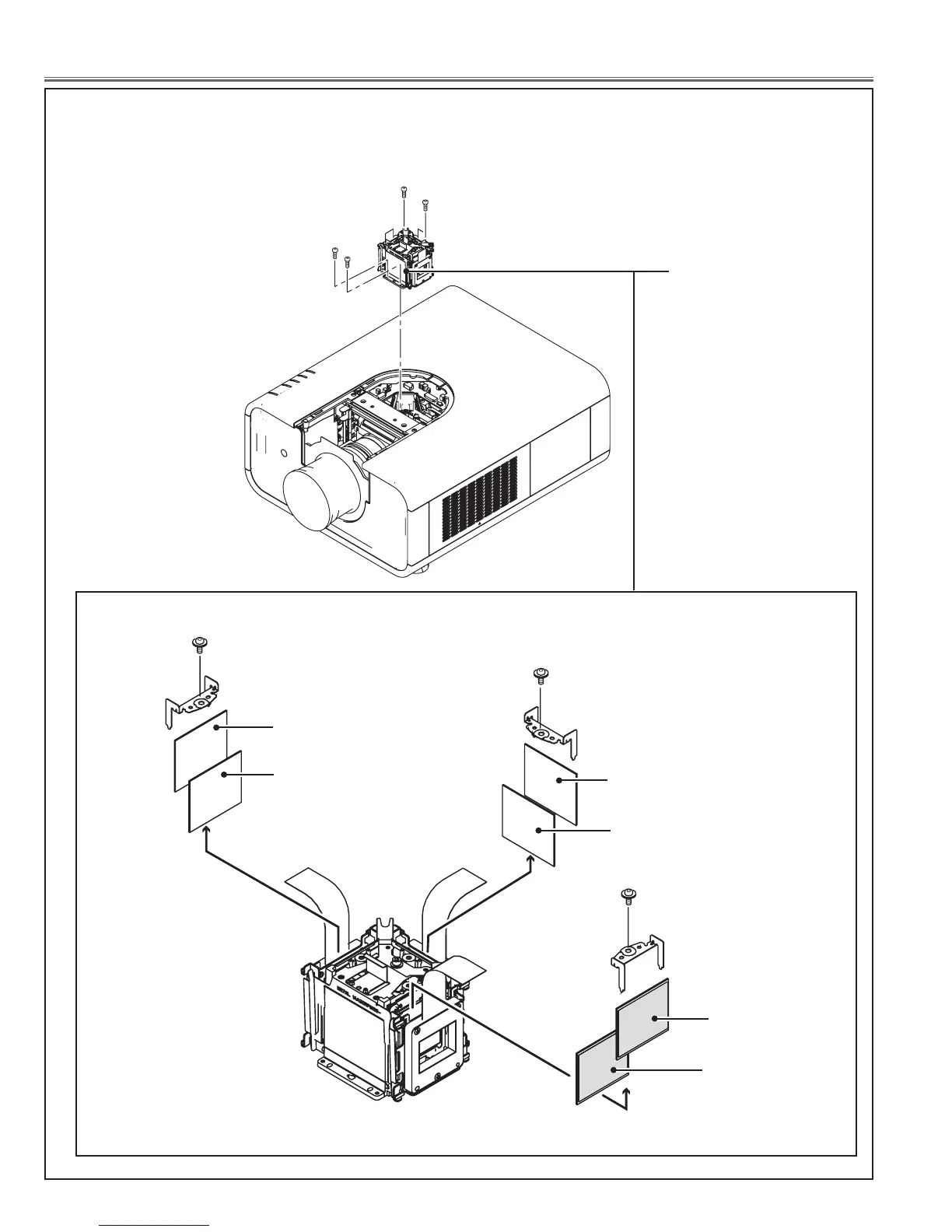

Panel/Prism Assembly
L02L
S05
S05
S05
S05
L02R
L02L-1B/L02R-1B
L02L-1G/L02R-1G
L02L-2G/L02R-2G
L02L-2R/L02R-2R
L02L-1R/L02R-1R
L02L-2B/L02R-2B
(Green)
(Red)
(Blue)
Note:
Parts for L02-1 and L02-2 differs according to
type of LCD panel/prism assembly.
Refer to the chapter of optical disassembly
for the mounting direction of each part.

Sanyo PLC-XP200L Specifications

General

Vertical scan range	48 - 100 Hz
Horizontal scan range	15 - 100 kHz
Projection technology	LCD
Projector native resolution	XGA (1024x768)
Keystone correction, vertical	±40 °
Lamp type	NSH
Lamp power	330 W
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Bundled software	User Manual (CD ROM)
I/O ports	DVI-D (digital/HDCP) D-Sub15 (RGB/SCART-RGB) 5 x BNC (RGBHV/Composite/Y-Pb/Cb-Pr/Cr) 3 x RCA (Video/Y-Pb/Cb-Pr/Cr) Mini DIN 4 (S-Video) 3.5 mm Stereo Jack D-Sub15 D-Sub9 (RS232) 3.5 mm Stereo Jack (cable remote control) USB type B
Compatibility	UXGA SXGA SXGA+ WXGA XGA S-VGA VGA Mac
Dimensions (WxDxH)	370 x 440 x 187 mm
Power requirements	100 - 240 V
Power consumption (standby)	24.5 W
Power consumption (typical)	499 W
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 40 °C
Placement	Ceiling

Weight and Dimensions

Weight	11400 g
Package weight	15900 g
