Mechanical Parts List
KR7-XP200L00
238
241
240
238
490490
489603
241
240
L01-4
L01-7
L01-3
L01-2
L01-1
L01-9
L01-7
L01-11B
Note:
The parts indicated with (i) are fixed with the adhesive onto the optical base bottom,
so these parts are not the replaceable parts.

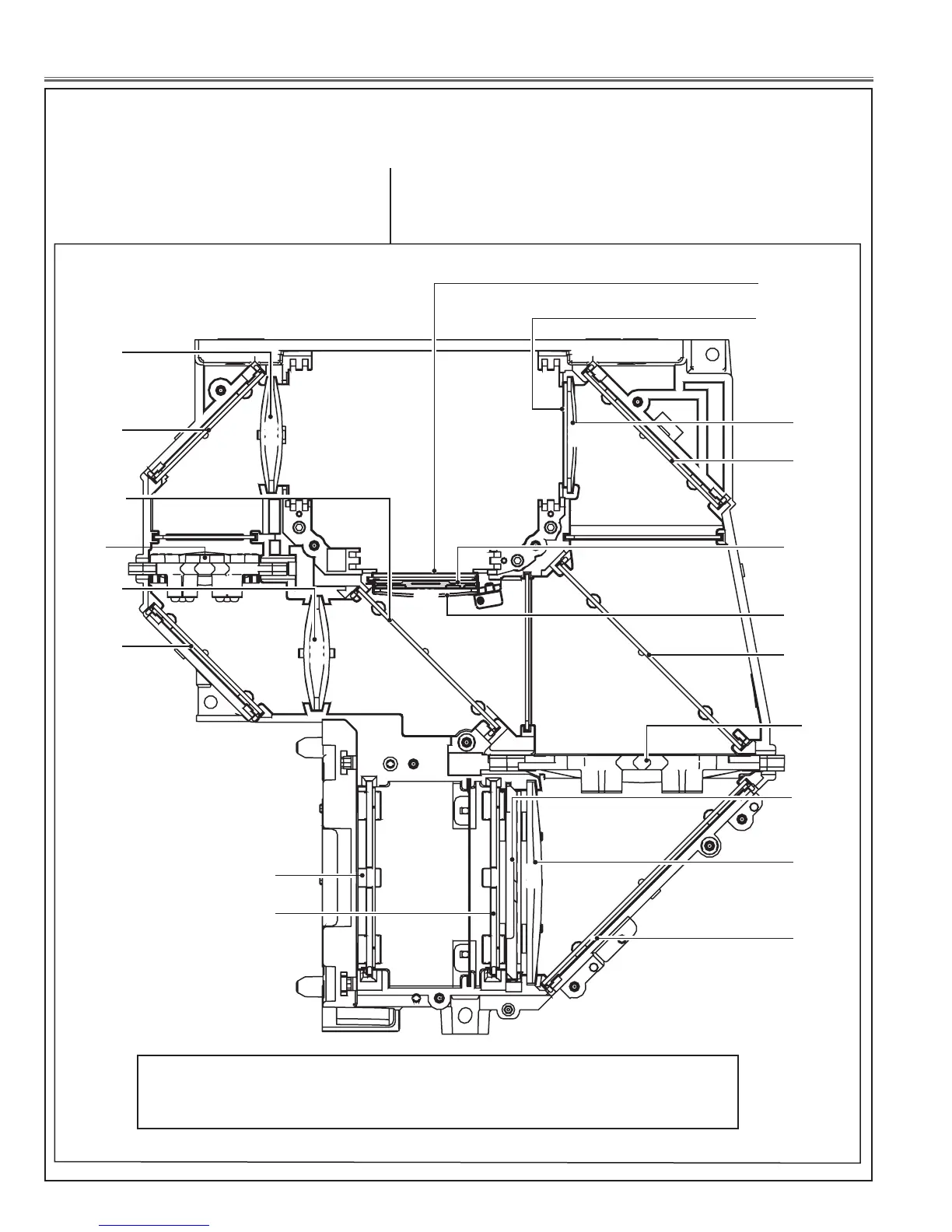

In the Optical Unit
L01
L01-12
i
i
i
i
L01-6
L01-5
L01-8
L01-13
L01-10
L01-11G
Refer to the chapter of optical disassembly
for the mounting direction of each part.
