Sanyo PLC-XP200L Service Manual

-39-
Optical Parts Disassembly

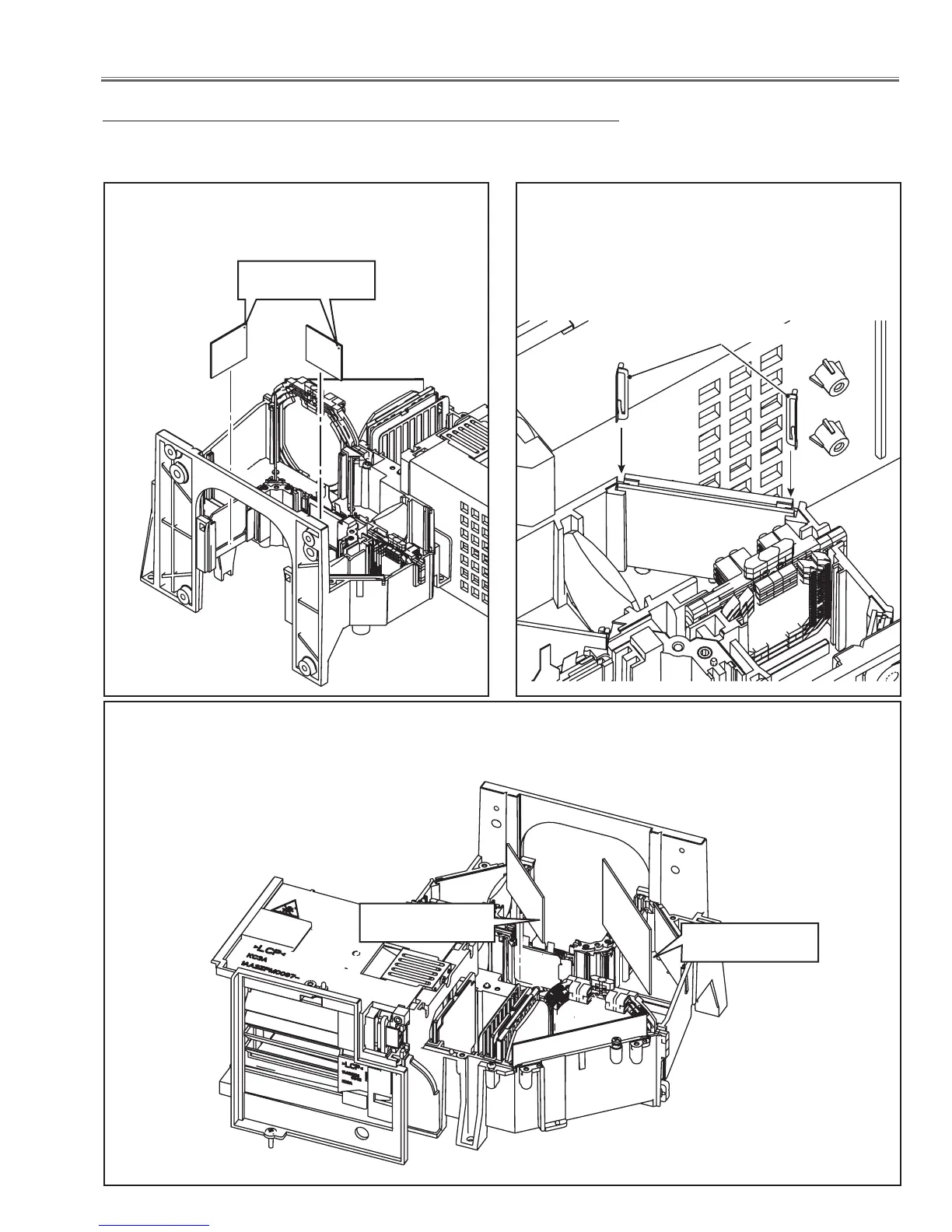

5-2 Optical parts directions in the Optical Unit
When mounting or assembling the optical parts in the optical unit, the parts must be mounted in the specified location
and direction as shown in the figure below.
Printed marker
Printed marker
Printed marker
Polarized glass (IN/GB)
Mount as the marker facing to the prism side as shown
in the figure below.
Dichroic mirror
Mount them as shown in the figure below. Pay attention to the direction of the
printed parts no. on the mirror.
Mirror, Dichroic mirror
Place the mirror and dichroic mirror into the groove
and then mount the stoppers to fix them.
Stopper

Sanyo PLC-XP200L Specifications

General

Vertical scan range	48 - 100 Hz
Horizontal scan range	15 - 100 kHz
Projection technology	LCD
Projector native resolution	XGA (1024x768)
Keystone correction, vertical	±40 °
Lamp type	NSH
Lamp power	330 W
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Bundled software	User Manual (CD ROM)
I/O ports	DVI-D (digital/HDCP) D-Sub15 (RGB/SCART-RGB) 5 x BNC (RGBHV/Composite/Y-Pb/Cb-Pr/Cr) 3 x RCA (Video/Y-Pb/Cb-Pr/Cr) Mini DIN 4 (S-Video) 3.5 mm Stereo Jack D-Sub15 D-Sub9 (RS232) 3.5 mm Stereo Jack (cable remote control) USB type B
Compatibility	UXGA SXGA SXGA+ WXGA XGA S-VGA VGA Mac
Dimensions (WxDxH)	370 x 440 x 187 mm
Power requirements	100 - 240 V
Power consumption (standby)	24.5 W
Power consumption (typical)	499 W
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 40 °C
Placement	Ceiling

Weight and Dimensions

Weight	11400 g
Package weight	15900 g
