Sanyo PLC-XP200L Service Manual

-38-
Optical Parts Disassembly
238
241
240
238
490490
489603
241
240
11
10
9
12
2
1
16
13
7
4
3
5
9
17
8
14
6
15

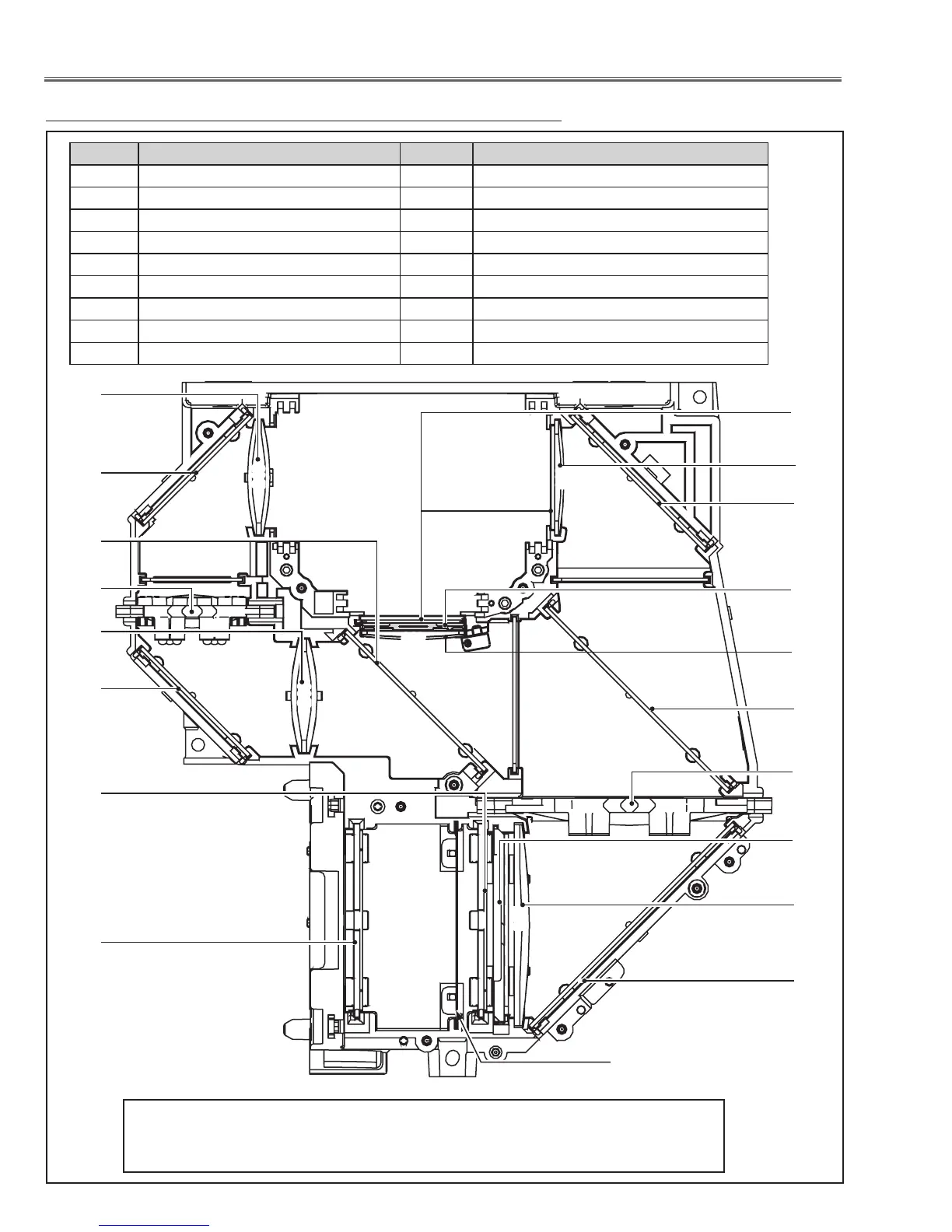

5-1 Optical parts locations in the Optical Unit
No. Parts Name No. Parts Name
1 LENS,INTEGRATOR(IN) * 10 LENS,RELAY(IN)
2 LENS,INTEGRATOR(OUT) * 11 LENS,RELAY(OUT) *
3 ASSY,PRISM(PBS) 12 LENS,CONDENSER(R)
4 LENS,CONDENSER(IN) 13 MIRROR(B)
5 MIRROR(W-COLD) 14 POLARIZED GLASS(IN/GB)
6 LENS,CONDERSOR(OUT) * 15 LENS,CONDENSER(G)
7 DICHROIC MIRROR (B) 16 LENS,CONDENSER(B)
8 DICHROIC MIRROR (G) 17 OPTICAL FILTER (LC-CS)
9 MIRROR(R)
Shield Plate
Note:
The parts indicated with (*) are fixed with the adhesive onto the optical base bottom,
so these parts are not the replaceable parts.

Sanyo PLC-XP200L Specifications

General

Vertical scan range	48 - 100 Hz
Horizontal scan range	15 - 100 kHz
Projection technology	LCD
Projector native resolution	XGA (1024x768)
Keystone correction, vertical	±40 °
Lamp type	NSH
Lamp power	330 W
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Bundled software	User Manual (CD ROM)
I/O ports	DVI-D (digital/HDCP) D-Sub15 (RGB/SCART-RGB) 5 x BNC (RGBHV/Composite/Y-Pb/Cb-Pr/Cr) 3 x RCA (Video/Y-Pb/Cb-Pr/Cr) Mini DIN 4 (S-Video) 3.5 mm Stereo Jack D-Sub15 D-Sub9 (RS232) 3.5 mm Stereo Jack (cable remote control) USB type B
Compatibility	UXGA SXGA SXGA+ WXGA XGA S-VGA VGA Mac
Dimensions (WxDxH)	370 x 440 x 187 mm
Power requirements	100 - 240 V
Power consumption (standby)	24.5 W
Power consumption (typical)	499 W
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 40 °C
Placement	Ceiling

Weight and Dimensions

Weight	11400 g
Package weight	15900 g
