-37-
Optical Parts Disassembly

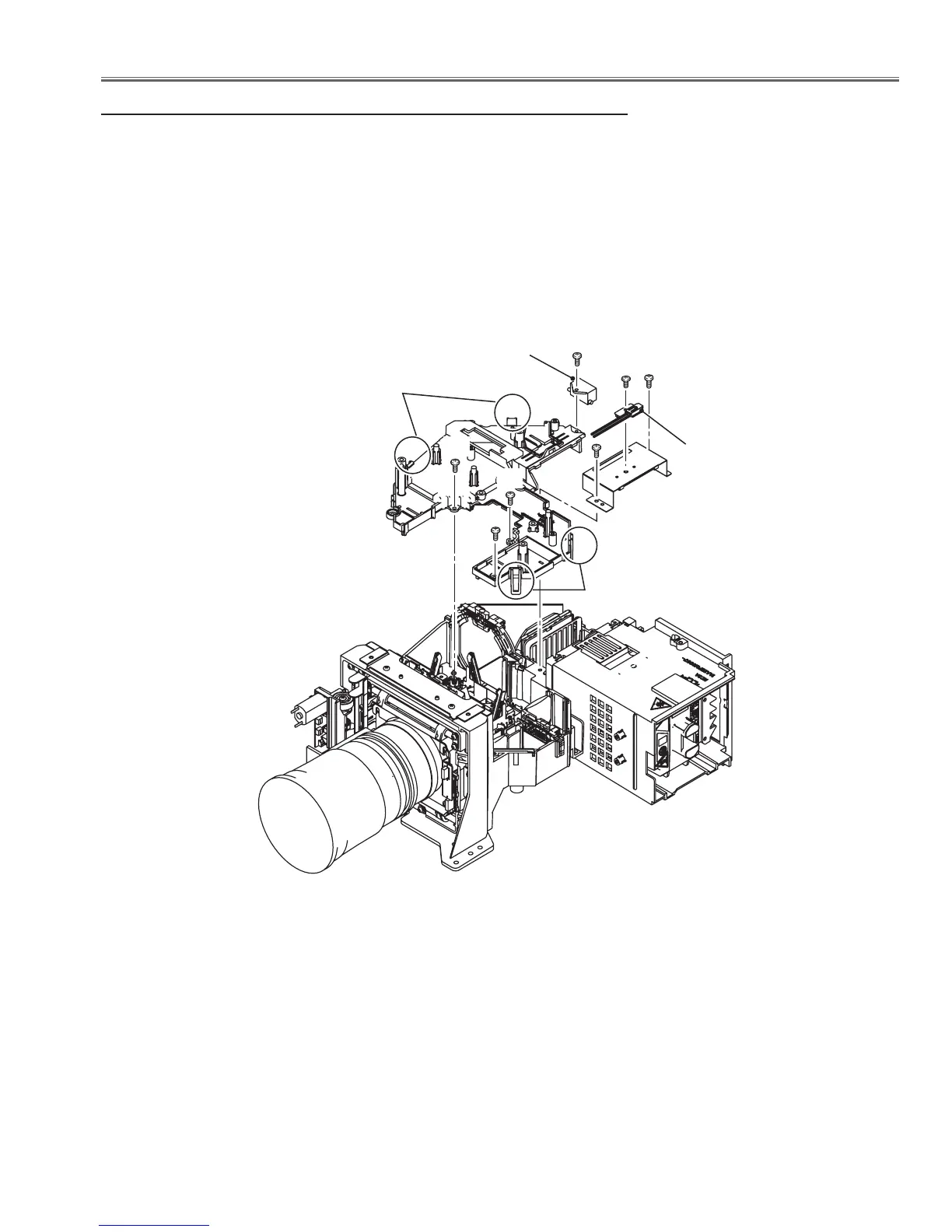

5 Optical base top removal
Before taking this procedure, remove cabinet top, main board following to the
chapter "Mechanical disassembly".
1 Remove 1 screw A (M3x6) on the thermal protector, 1 screw B (T3x10) on
the ballast trigger and 5 screws C (T3x10).
2 Unhook 4 hooks D on the optical base top and take the optical base top
upward off.
C
B
C
C
C
C
Thermal pro-
tector
Ballast trigger
D
D
A
To Next Page
