Chapter 5 Dismantling components
SMSO-2-02.05- 15.07.03 165
Dismantle / replace the grinder blades
Preparation
Dismantle the grinder
Dismantle the stern tube bearing / worm gear / grinding
degree disk
Dismantling

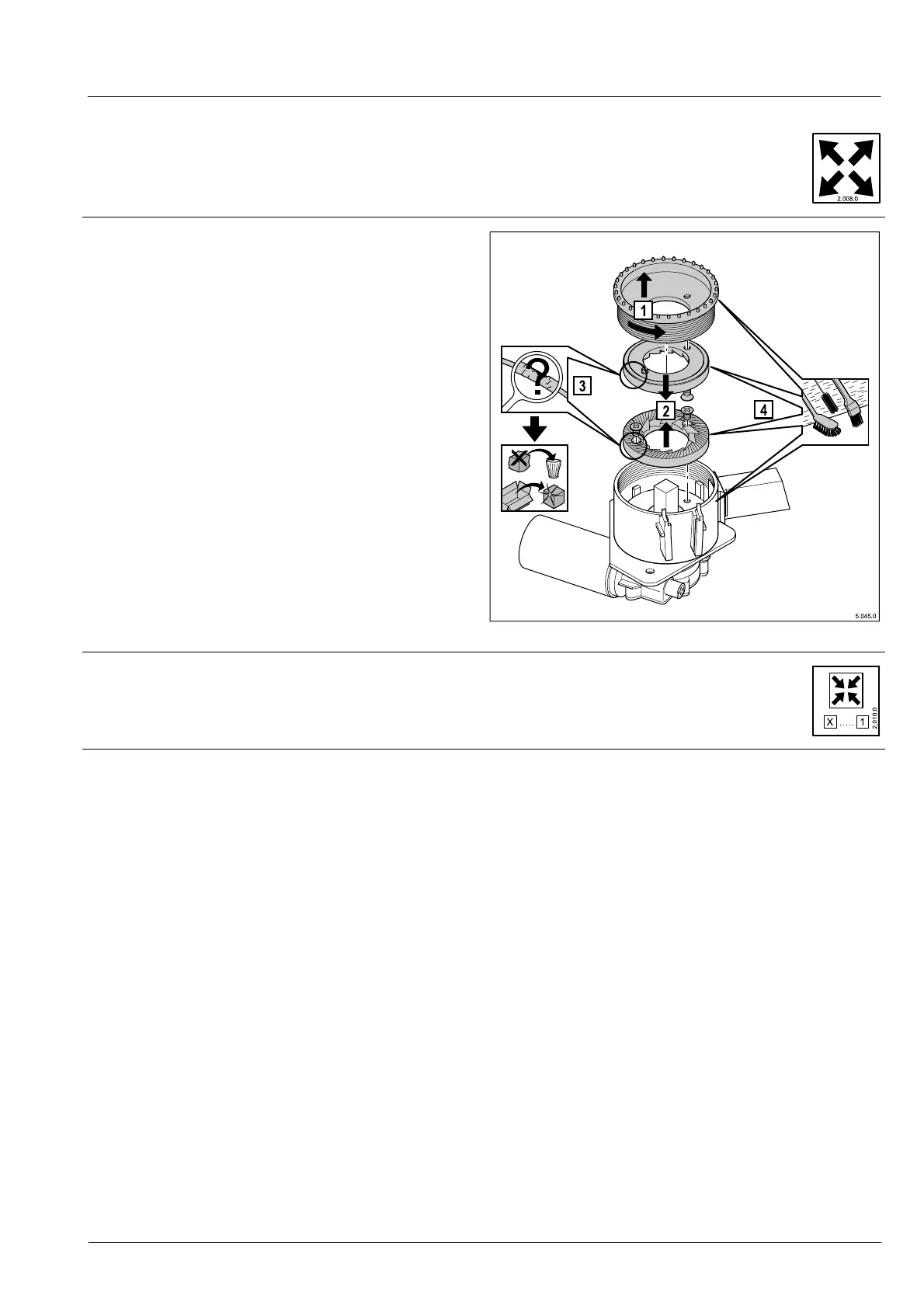

1. Rotate the upper grinder section until it comes out
2. Unscrew the grinder blade from the star shaft and from
the upper part of the grinder
3. Check the dismantled grinder blade and decide whether
you will replace it with a new one or reinstall it (for pic-
tures see “functional descriptions, grinder”)
4. Clean all the parts of the grinder
New grinder blades must always be refitted to clean con-
tact surfaces.
Assembly
Carry out assembly in reverse order to the dismantling pro-
cedure.
