Chapter 5 Dismantling components
SMSO-2-02.05- 15.07.03 173

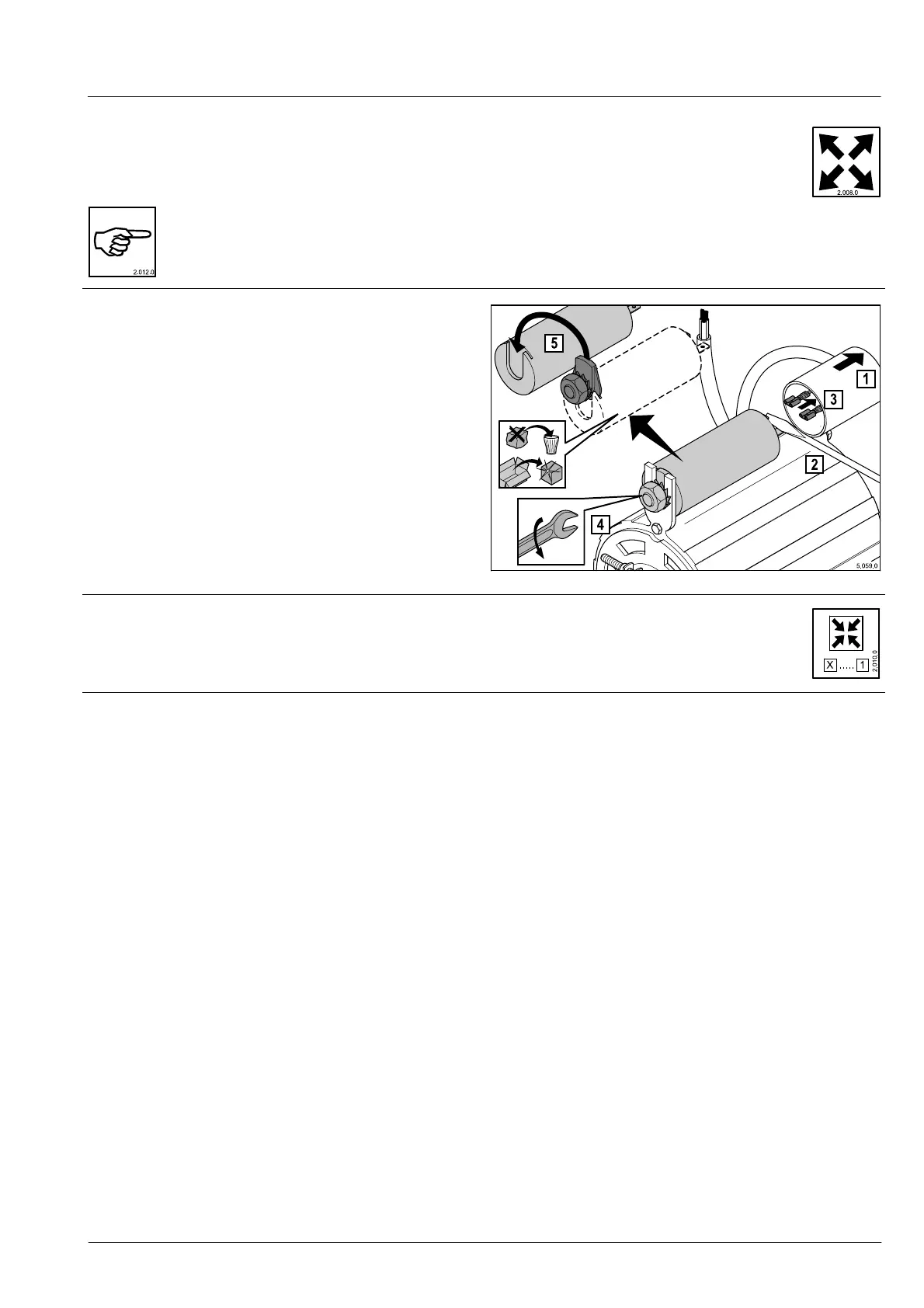

Replace the capacitor
Preparation
Dismantle the right-hand casing
Capacitors can be tested only on special
measurement instruments. Resistance
measurements etc. are not meaningful and thus
pointless.
Service
1. Pull off the protecting cap to the connection
2. Discharge the capacitor: Use a screw driver to make a
short-circuit to both plugs
3. Pull the plugs from the capacitor
4. Loosen the capacitor fixture; remove the defective ca-
pacitor
5. Pull out the fastening pins and insert into the new ca-
pacitor
Installation
Carry out assembly in reverse order to the dismantling pro-
cedure.
