Schaerer Ambiente 2 Service Manual

Chapter 7 Technical data
234 SMSO-2-02.07- 15.07.03
A
Current
B Waste water
C Fresh water 6-8°d hardness
D Buffet installation

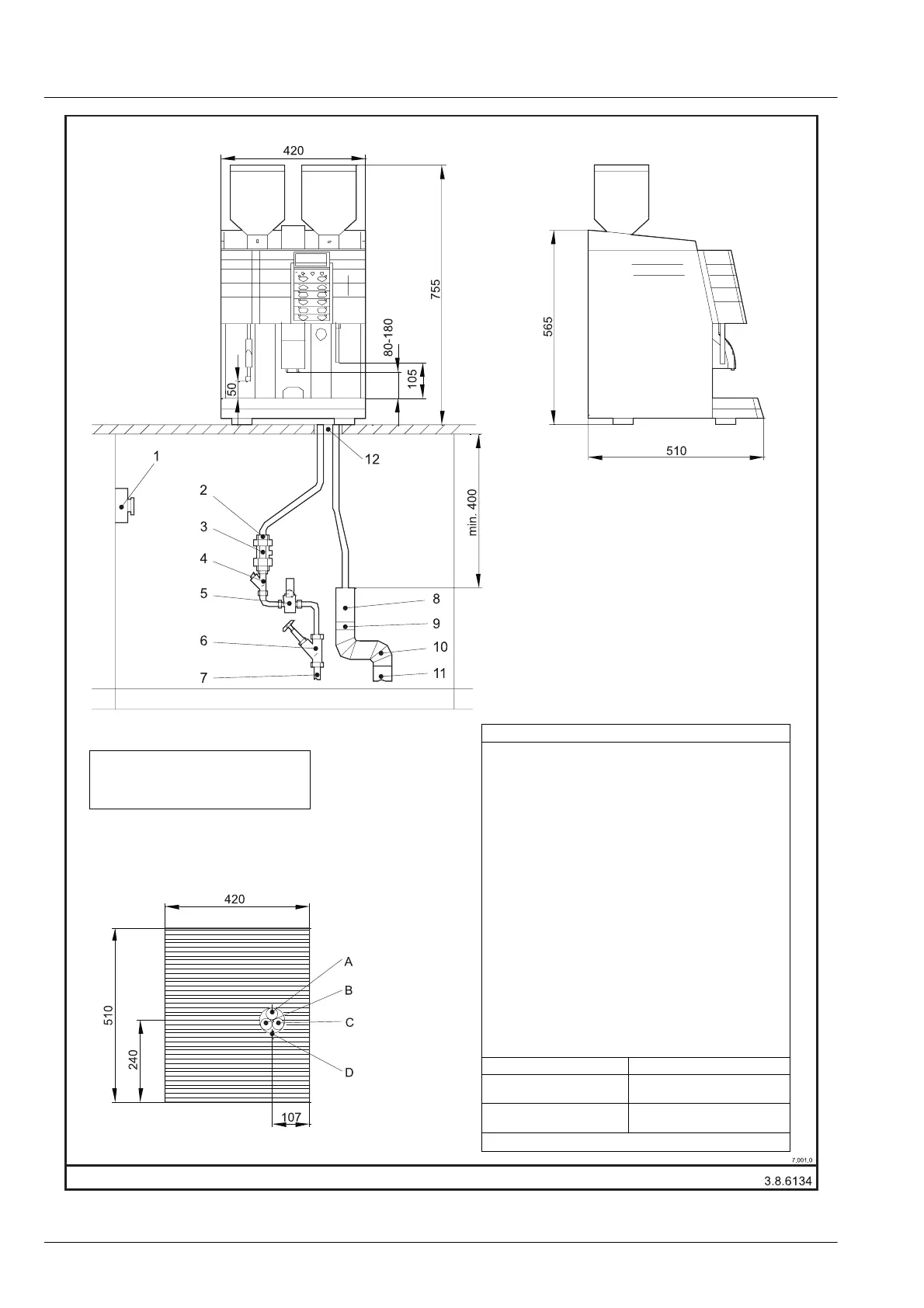

The following installations must be present:
1 Mains disconnection
switch
(fully switched off from
mains with a minimum
contact break of 3 mm)
2 G ½” connection Internal thread
3 Non-return valve SVGW tested
4 Filter
5 Pressure reducer set to 3 bar
6 G ½” supply valve
7 G ½” water connection
8 Stand pipe
50 mm dia., 200 mm
long
9 Flanged bush 48 mm dia.
10 Siphon
11 Discharge (plastic) 56 mm
12
Opening for feed
connection pipe and
discharge connection
pipe
dia. 80 – 100 mm.
Ideal water hardness:
8-12º f / 5-7ºd
For all other information, please refer to local statu-
tory regulations
Model
Connection value
15 SO-2
9.3kW/16A
400VAC/50/60Hz (3PNPE)
1 SO-2 tea
9.3kW/16A
400VAC/50/60Hz (3PNPE)
We reserve the right to make technical alterations
Customer’s installation 15 SO-2
