Schaerer Ambiente 2 Service Manual

Chapter 7 Technical data
SMSO-2-02.07- 15.07.03 235
A
Current
B Waste water
C Fresh water 6-8°d hardness
D Buffet installation

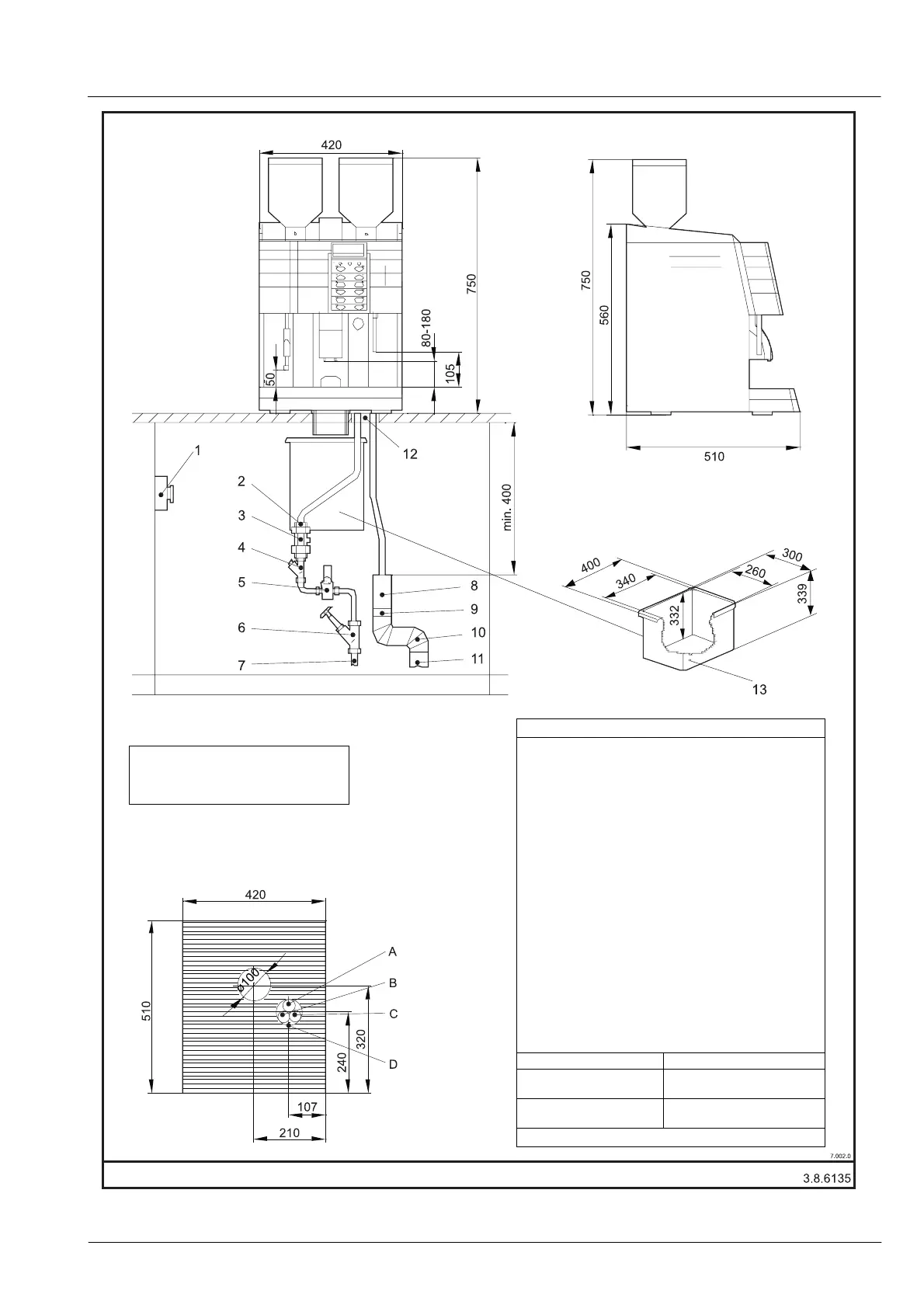

The following installations must be present:
1 Mains disconnection
switch
(fully switched off from
mains with a minimum
contact break of 3 mm)
2 G ½” connection Internal thread
3 Non-return valve SVGW tested
4 Filter
5 Pressure reducer
6 G ½” supply valve
7 G ½” water connection
8 Stand pipe 50 mm dia, 200 mm long
9 Flanged bush 48 mm dia.
10 Siphon
11 Discharge (plastic) 56 mm
12 Opening for feed
connection and dis-
charge connection
pipe
dia. 80 – 100 mm.
13 Grounds container Ideal water hardness:
8-12º f/ 5-7ºd
For all other information, please refer to local statu-
tory regulations
Model
Connection value
15 SO-2 9.3kW/16A
400VAC/50/60Hz (3PNPE)
1 SO-2 tea 9.3kW/16A
400VAC/50/60Hz (3PNPE)
We reserve the right to make technical alterations
Customer’s installation 15 SO-2 with ejection of coffee
