Translation of Original Operating Instructions
Airport Sweeper / Airport Stand Cleaner
2017-02-02 160

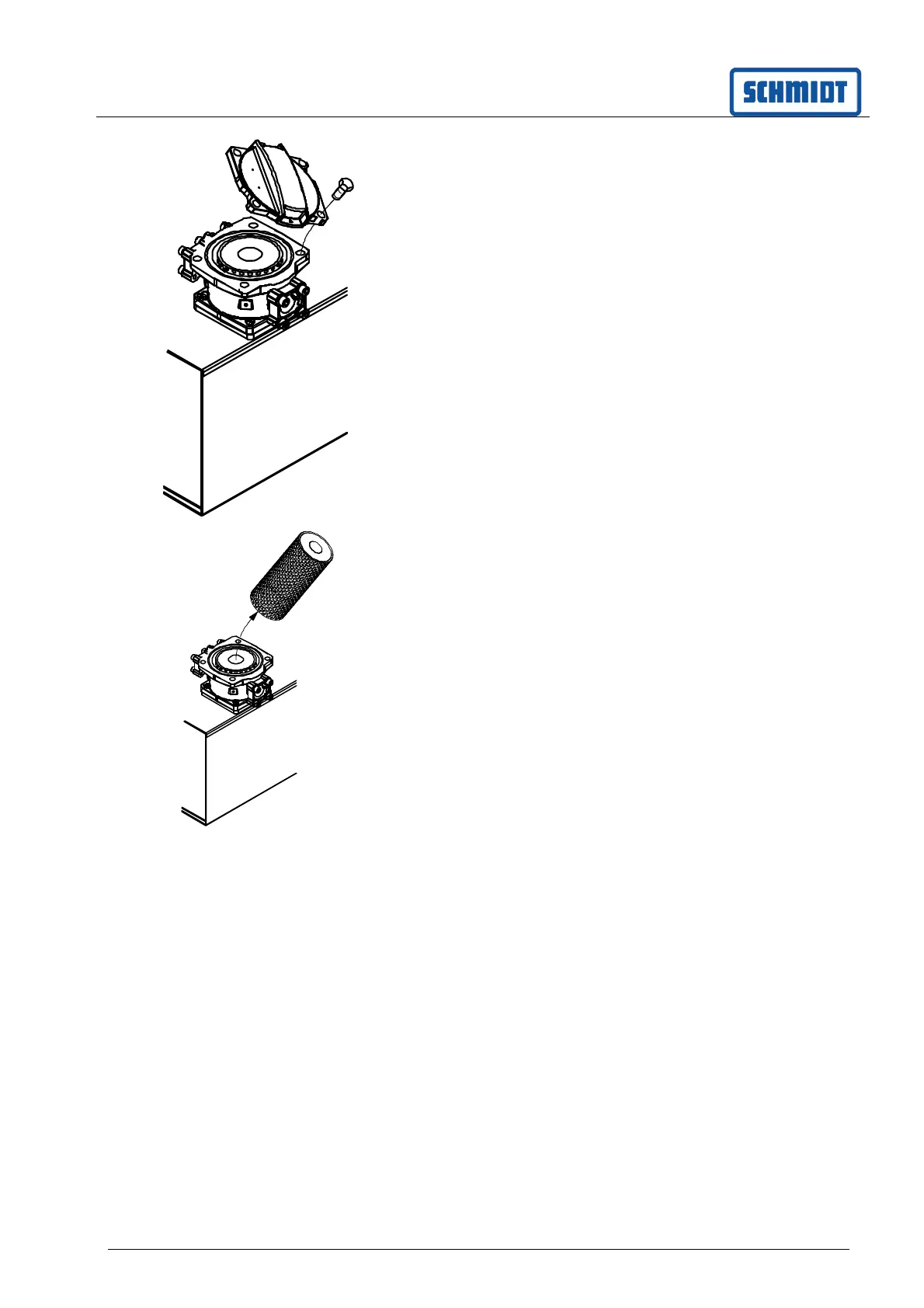

Take of the screws (1) on the cover fastening
(4 screws, SW 15) and remove cover (2).
Check the surface of the filter for residual dirt
and larger particles. These impurities can lead
to damage to hydraulic components.
Pull the filter element (1) from the filter housing.
Clean the housing and cover.
Check the O rings on the cover for damage
and change these if necessary.
Install the filter
Installing the filter is carried out by reversing
the disassembly sequence.
Wet the sealing surfaces with clean oil.
The identification markings on the new filter element
must correspond to those on the old filter element.
Turn on hydraulic equipment, check the filter for
leakages; check the oil level and fill if necessary.
1
2
1
