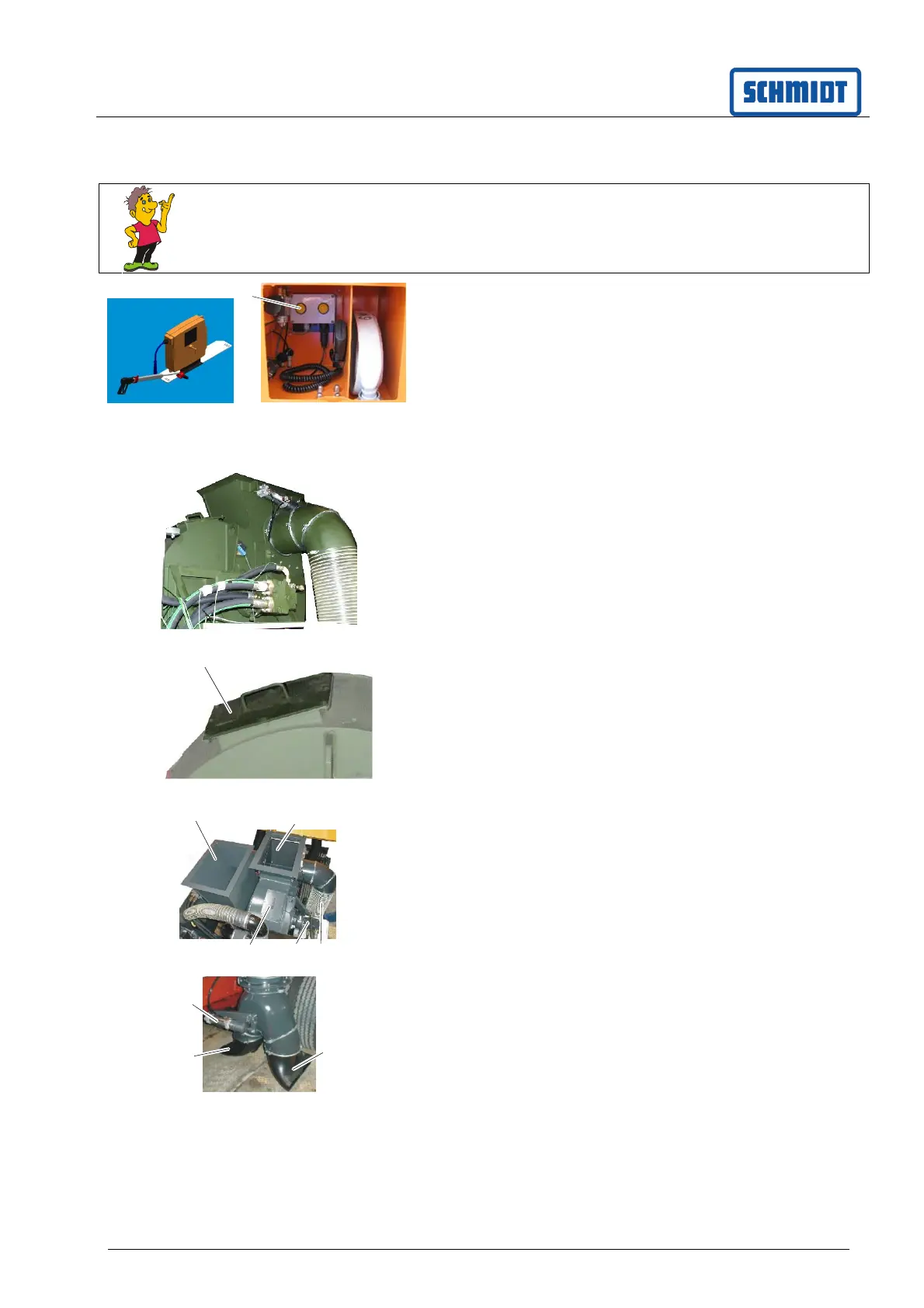

7.12.3 High-pressure cleaning system
NOTE
Damage to the high-pressure water pump
► Do not operate the water pump without water
The water hose with automatic roller and wand is
at the rear on the right-hand side.
The high-pressure cleaning system is intended
for use against stubborn dirt.
The water is also supplied via the water tank.
The water level is displayed on the control panel.
The high-pressure water pump is switched on with
the button (1).
7.13 Fan
During sweeping, the blower generates the vacuum
in the hopper and the air pressure for cleaning and
drying the road surface.
The high-power blower is fastened to the base
frame with rubber mounts. It is hydraulically driven.
The power of the blower is set with the rpm of the
diesel engine. On the outlet side, the discharged air
can be routed upwards or sent to the blast nozzles.
Interchangeable rubber strips are used as gaskets
around the vacuum and the suction air outlet
frames.
There is a cleaning aperture on the top of the
housing (1).
Overview
(1): Suction funnel on the blower
(2): Blowing connection duct on the blower
(3): Cleaning flap
(4): Fan drive with hydraulic motor
(5): Blowing air hose
(6): Blast nozzles
(7): Adjusting cylinder
