Translation of Original Operating Instructions
Airport Sweeper / Airport Stand Cleaner
2017-02-02 44

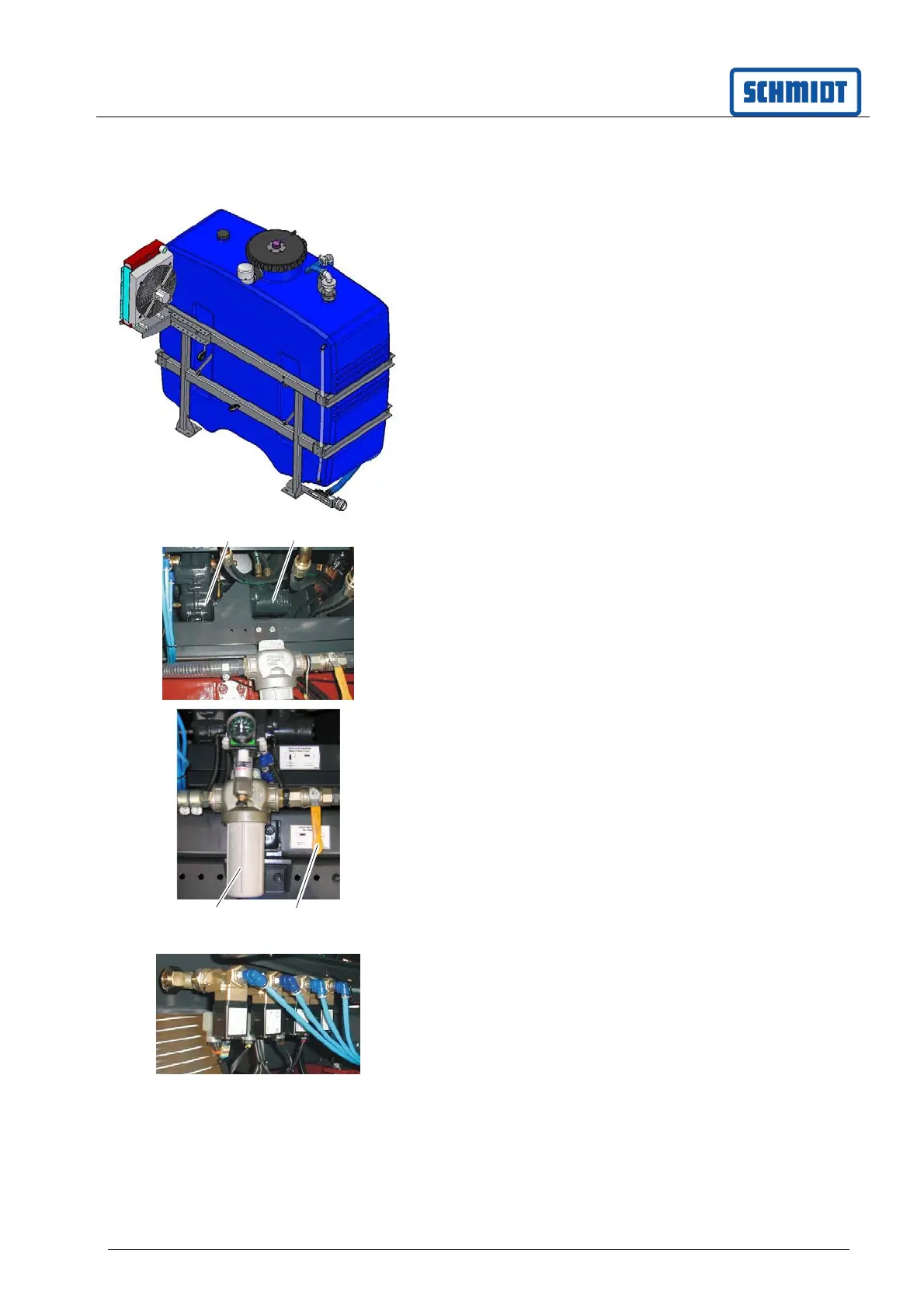

7.11 Water system
7.11.1 Water tank
The water tank is installed on the base frame in
front of the drive unit and supplies the following
equipment:
Disc brush spray facility
Spray unit of debris pick-up unit
Spray beam above leaf filter
Cleaning systems
Filling and emptying:
The water tank is filled via the C connection
The water tank is emptied via the water filter.
7.11.2 Water pump
The water pump (1) is driven by a hydraulic
motor (2). The pump supplies water to the devices
that use it.
7.11.3 Water filter
The water filter (1) filters the water that is pumped
to the equipment that uses it. To prevent the water
tank from going empty when cleaning the filter,
turn the ball valve (2) downward. After completing
cleaning work, turn the ball valve back into the
original position.
7.11.4 Water valves
Valves are closed in the original position.
The water supply to the consuming equipment
can be switched on and off using the water valves.
1
2
1
2
