Schmidt AS 990 - Changing the rubber bars; Setting the wear plates

Translation of Original Operating Instructions
Airport Sweeper / Airport Stand Cleaner
2017-02-02 162

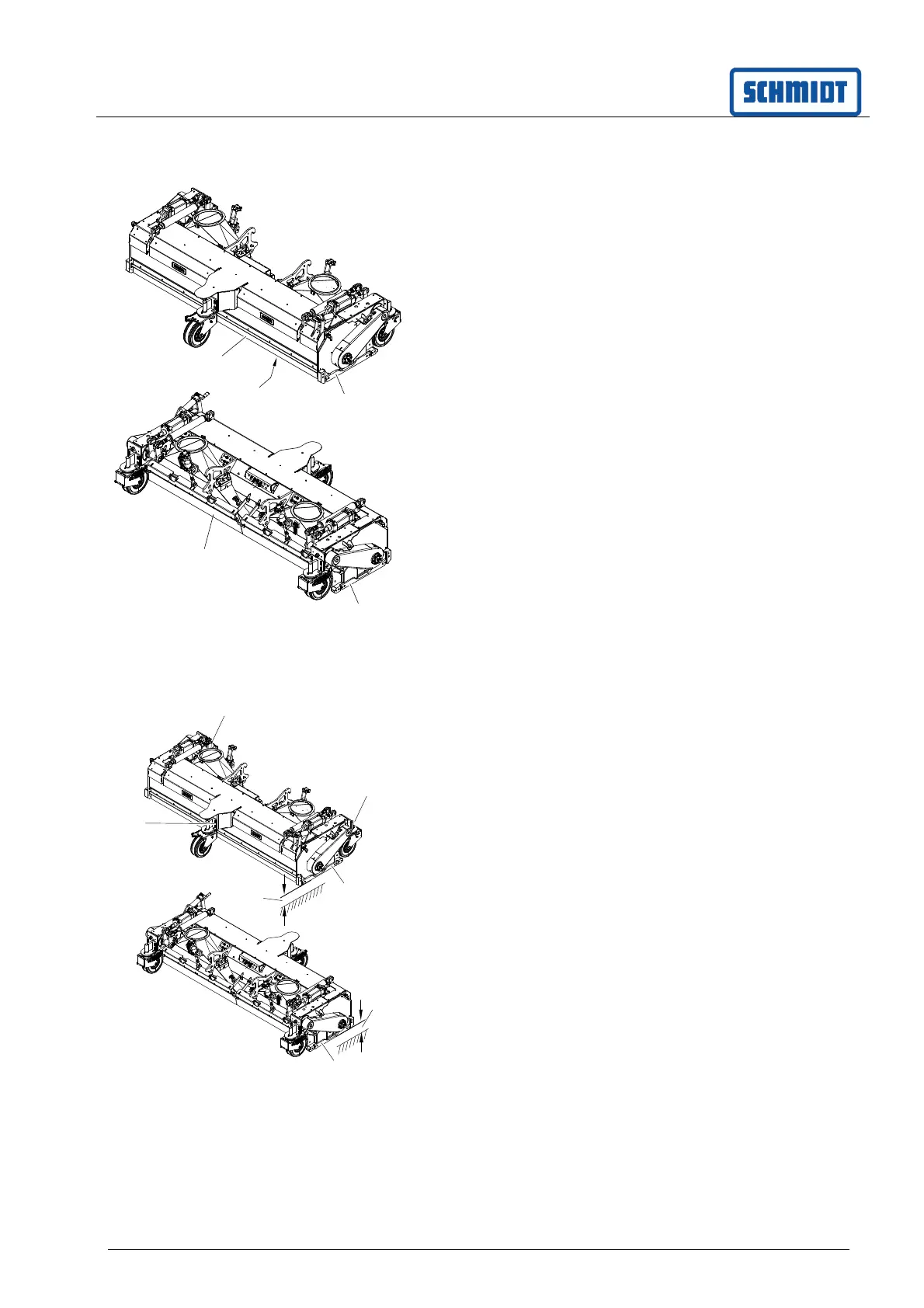

22.6 Changing the rubber bars
If the rubber bars (1/2/3) are worn, they must be
replaced. The new rubber bars are to be set to the
height of the wear plates (4). The distance of the
wear plate to the sweeping surface is 15 mm –
20 mm.
22.7 Setting the wear plates
The wear plates (1) must have a distance (2)
of 15 mm – 20 mm to the sweeping surface.
The distance is set using the slots (3) of the
castor wheel fastening.
4
3
1
2
4
3
3
3
2
1
1
2
