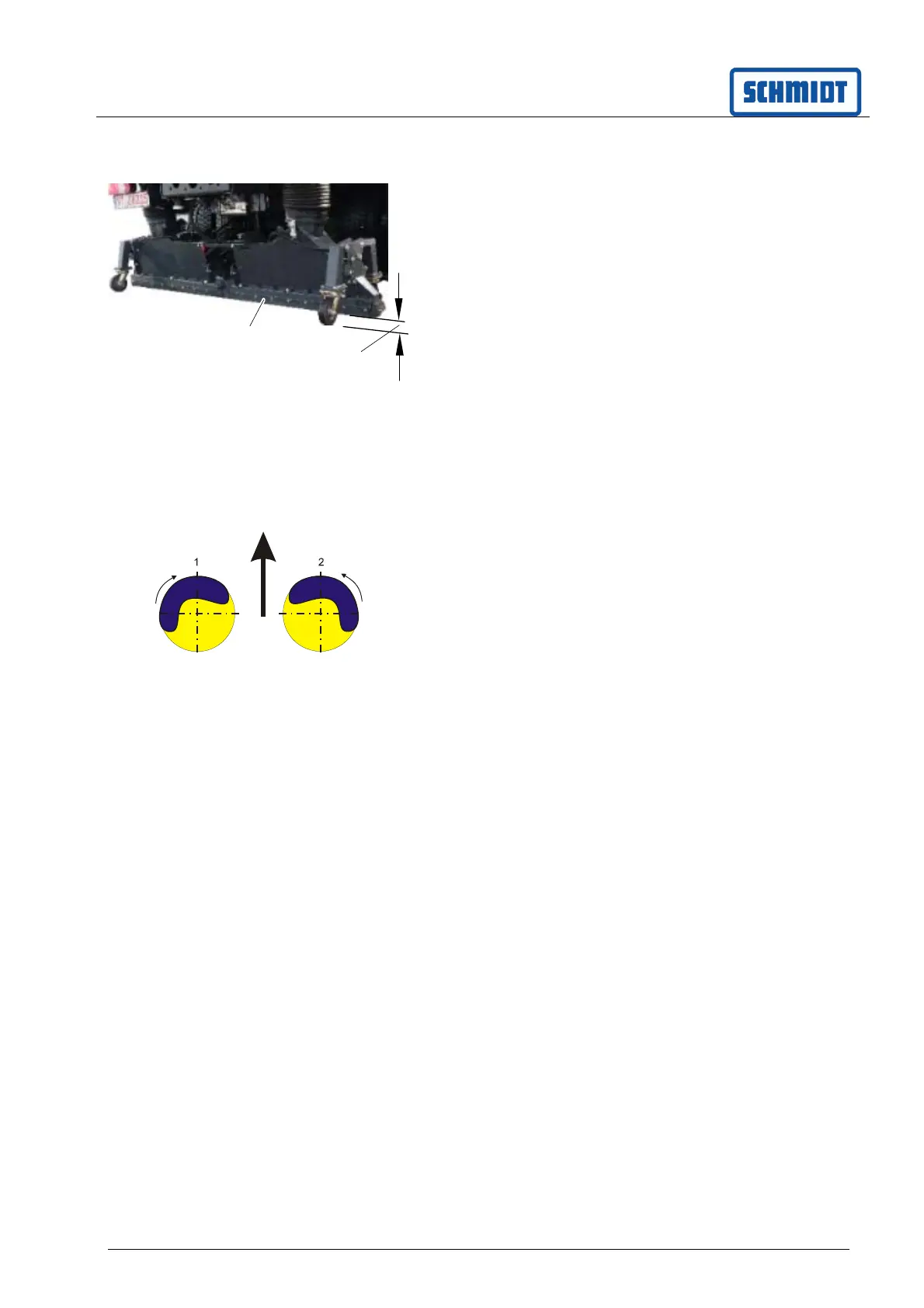

9.4.2 Setting the rubber bar
Setting distance (1)
Distance between the rubber bar and the sweeping
surface approx. 5-6 mm
 Loosen all clamping bolts (2).
 Push the rubber bar downwards over the slots,
parallel to the sweeping surface, until the ground
clearance is approx. 5-6 mm.
 Tighten all clamping bolts again (torque 10 Nm).
 Distance (1) is to be checked again.
9.4.3 Disc brush, setting the sweeping
pattern
To ensure an efficient sweeping pattern, it is
necessary to set the disc brushes so they are
at a certain angle to the sweeping surface. This
ensures that the bristles only come into contact with
the sweeping surface for a fraction of the sweeping
circle. The brush should be calibrated in accordance
with the diagram shown.
 Left brush (1)
 Right brush (2)
The following settings can be made:
 Engine mount angle
 Length setting for the upper brush steering arm
 Adjustment of the stop setting
