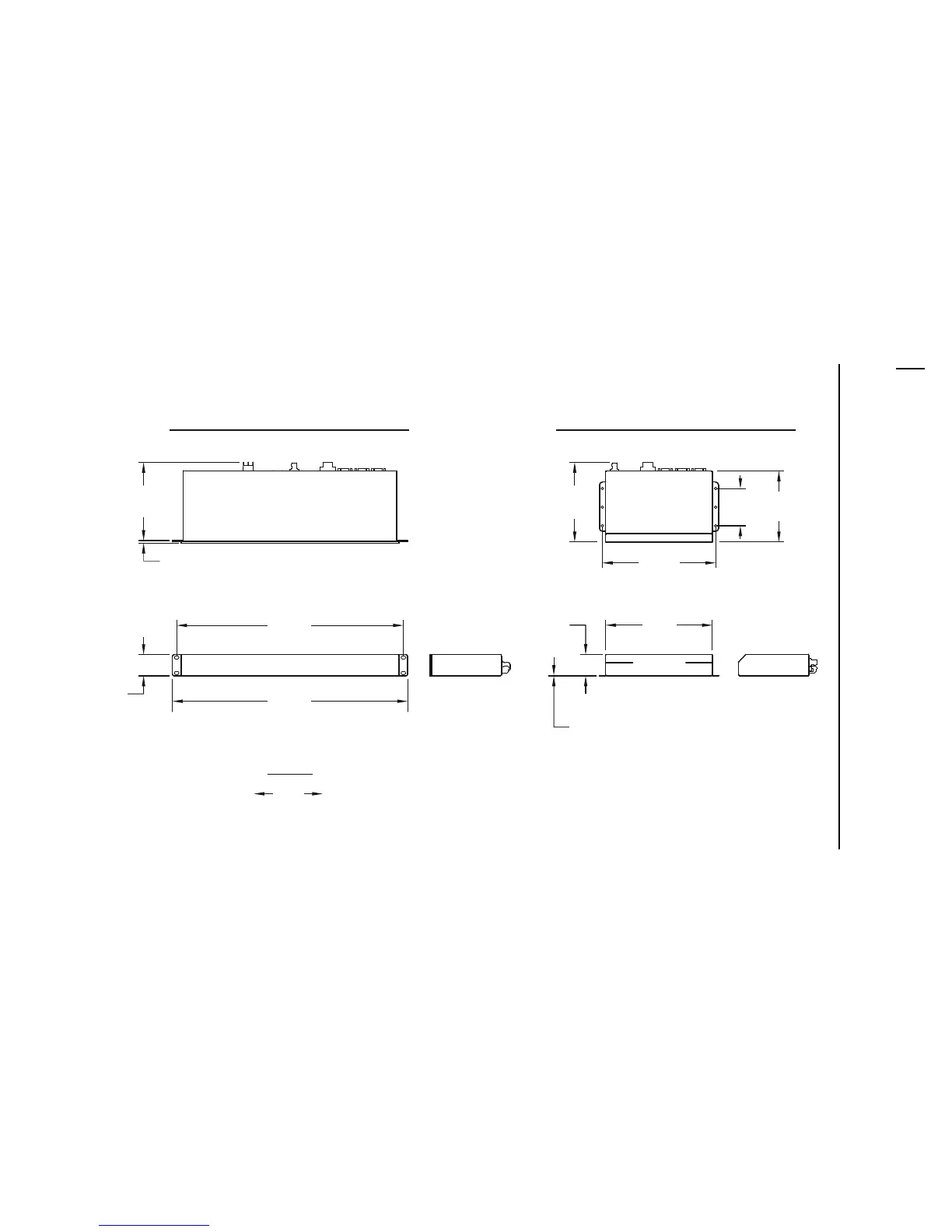

Product Diagrams Figure 1.4 SEL-3031 Dimensions
i9163b
RACK-MOUNT CHASSIS WALL-MOUNT CHASSIS
9.15
(232.4)
18.31
(465.1)
FRONT
19.00
(482.6)
1.72
(43.7)
TOP
TOP
6.40
(162.6)
6.30
(160)
5.73
(145.5)
3.00
(76.2)
LEGEND
in
(mm)
SIDE
0.21
(5.3)
8.66
(219.7)
FRONT SIDE
0.05
(1.27)
1.73
(43.9)
