SEL-3031 Instruction Manual Date Code 20181001
Job Done Examples
Configuring Collocated Antennas Using SEL Hop-Sync Technology
3.18

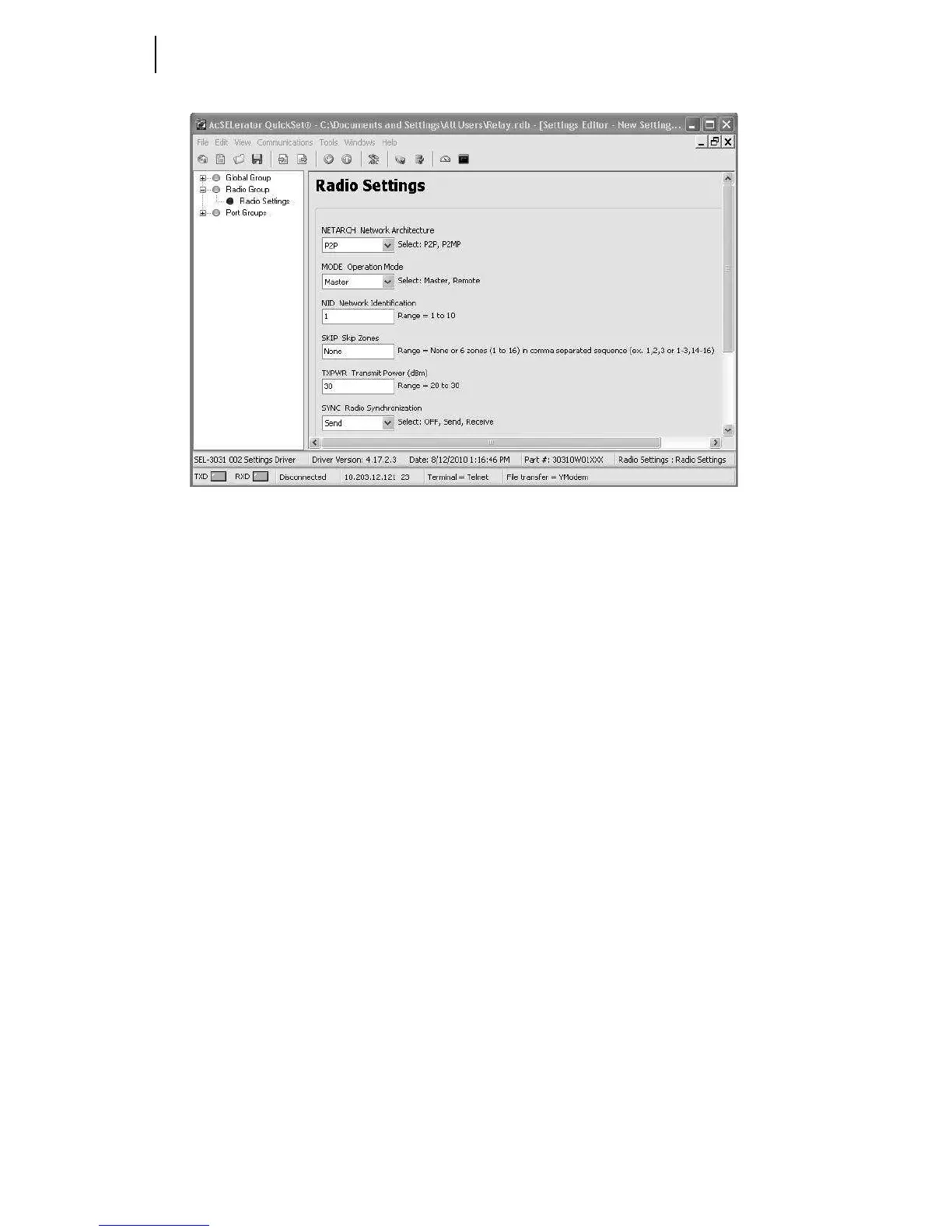

Figure 3.18 SYNC Settings for Master Radio
Figure 3.18 shows the settings for the master radio at the Repeater location. The SYNC
setting for this device must be set to SEND. This tells the radio to generate a pulse to
synchronize connected radios. On the second master radio at the Repeater location you
must set SYNC to RECEIVE.
Preliminary Copy—Subject to Change
