Settings and Commands
Settings
4.8

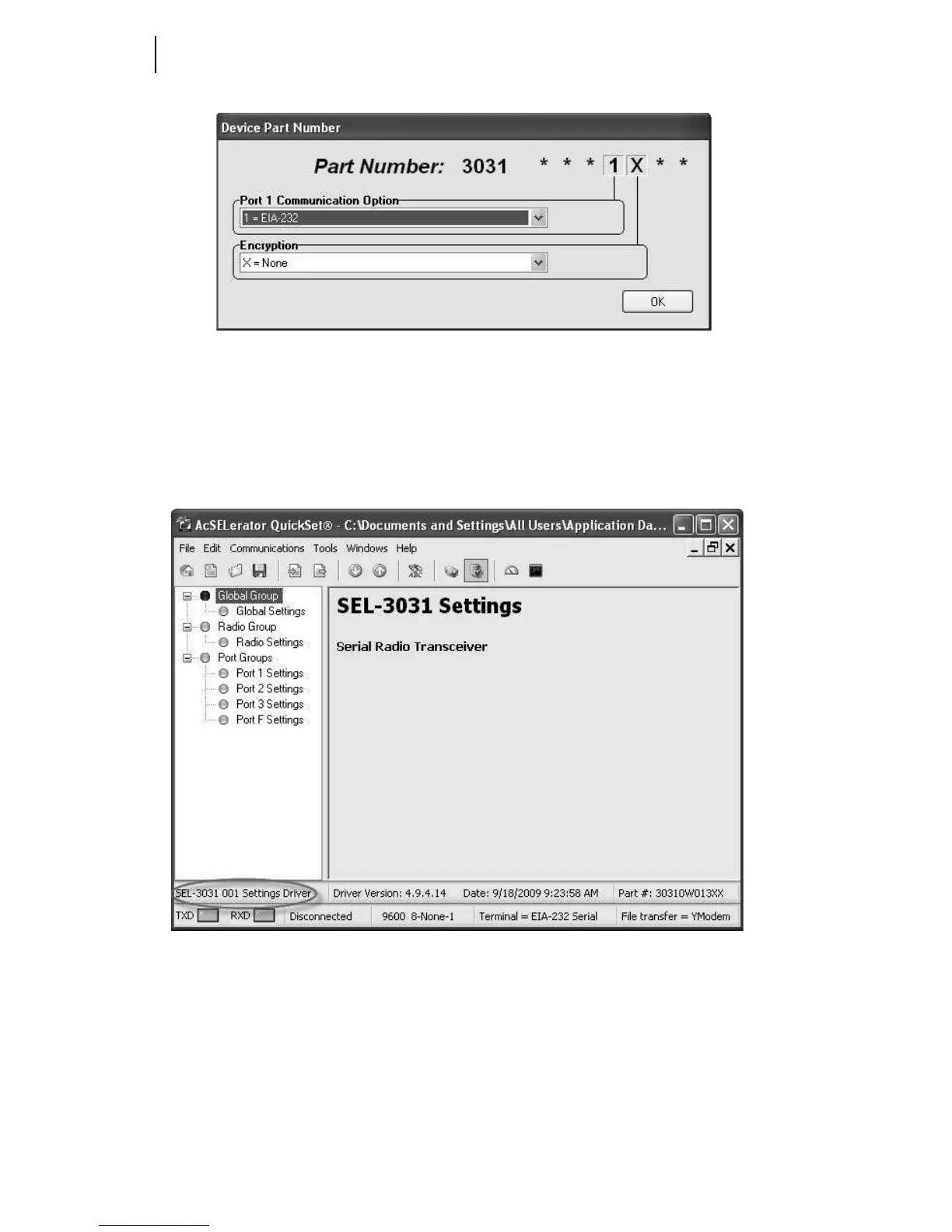

Figure 4.6 Update Part Number
Figure 4.6 shows the Settings Editor screen. View the bottom of the Device Editor
window to verify the Settings Driver number. Compare the QuickSet Settings Driver
number and the first portion of the Z-number in the FID string (this can be found by
selecting Tools > HMI > HMI > Status). These numbers must match. QuickSet uses
the first portion of the Z-number to determine which Device Editor to display.
Figure 4.7 New Setting Screen
File > Open
Select File > Open to open an existing device from the active database folder.
QuickSet prompts for a device to load into the Device Editor.
