SEL-3031 Instruction Manual Date Code 20181001
Settings and Commands
PC Software
4.4

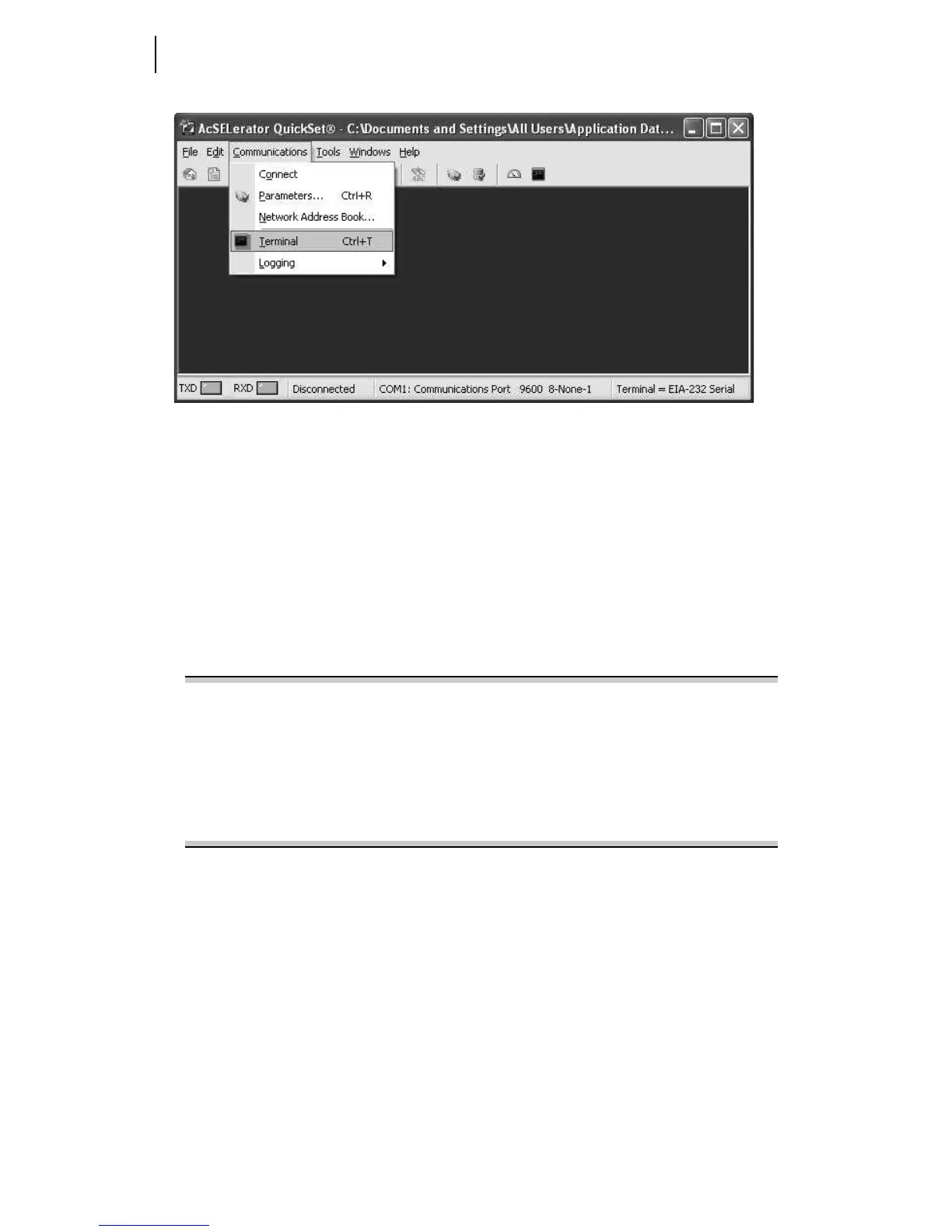

Figure 4.3 Terminal Window Menu
The terminal window is an ASCII interface for the device that supports a basic terminal
emulation. Open the terminal window by clicking Communications > Terminal or by
typing <Ctrl+T>. Verify proper communications with the device by opening a
terminal window, pressing <Enter> a few times, and verifying that a prompt is
received. If a prompt is not received, verify proper setup.
Drivers and Part Number
After clicking Communications > Terminal, access the device at Access Level 1.
Issue the ID command to receive an identification report, as shown in Figure 4.4.
=>>ID <Enter>
"FID=SEL-3031-R100-V0-Z001001-D20091009","08DC"
"BFID=SLBT-3031-R100-V0-Z001000-D20091009","0965"
"CID=25DC8978","034B"
"DEVID=STATION_A","04DB"
"DEVCODE=72","0310"
"PARTNO=30310W01XXX","0538"
"CONFIG=00000000","03E3"
"SPECIAL=0”,”02DE”
=>>
Figure 4.4 Device Response to ID Command
Locate and record the Z-number (Z001001) in the FID string. The first portion of the
Z-number (Z001...) determines the QuickSet device settings driver version when you
are creating or editing device settings files. The Device Editor driver will be discussed
in more detail in Device Editor (Editor Mode). Compare the part number (
PARTNO =
3031XXXXXXX
) with the Model Option Table (MOT) to ensure correct device
configuration.
