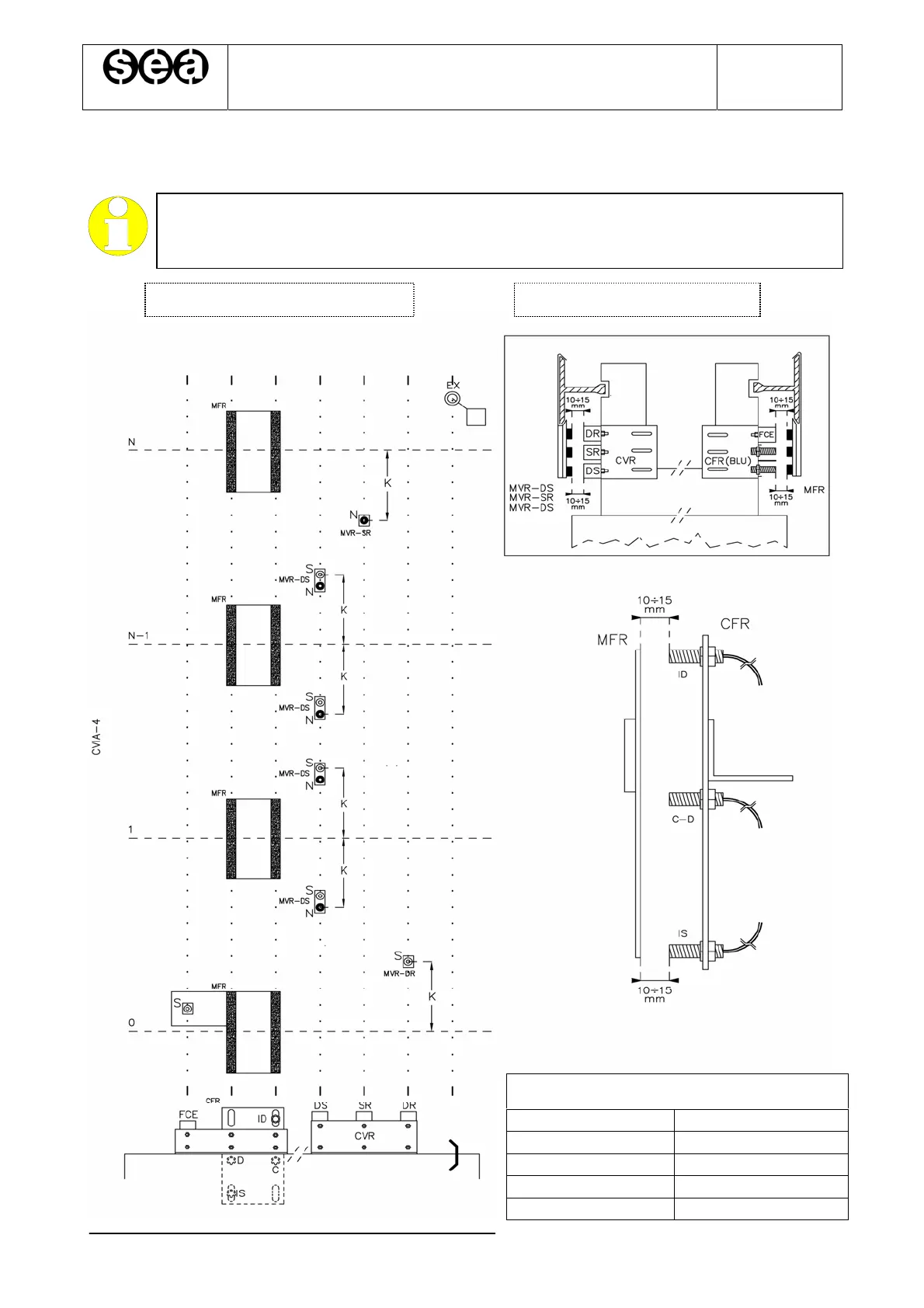

HAFT SENSORS PLACING FOR HYDRAULIC LIFT WITH A OR B SHAFT SENSOR KIT
HIGHLIGHT
With the B System, the magnets without bracket have to be fixed directly on the
guide.
SLOWING DISTANCE K
SPEED K
0.2 m/s 20cm
0.4 m/s 40 cm
0.6 m/s 60 cm
0.8 m/s 80 cm
SHAFT FRONTAL VIEW CAR ROOF VIEW
