Doc# E166703 6-2
6: Using the Watt-Hour Test Pulses
Electro Industries/GaugeTech
The Leader In Power Monitoring and Smart Grid Solutions
Electro Industries/GaugeTech
The Leader In Power Monitoring and Smart Grid Solutions
6.2.1: Examples
For the MP200-Y unit, use the test pulse assigned to each meter. For example, to
verify meter 1, you would measure the pulses from test pulse 1. See the figure below.

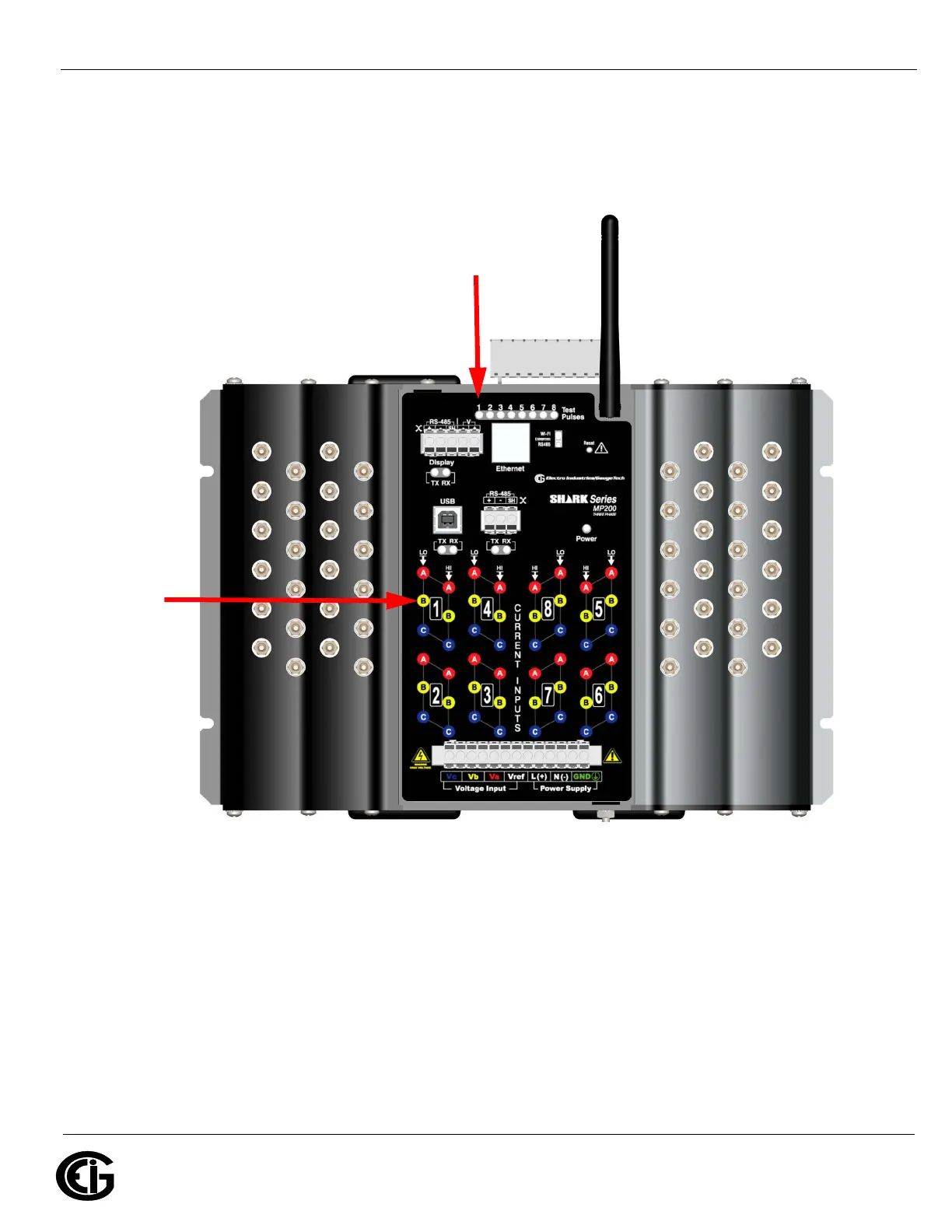

Figure 6.1: Meter 1 and Test Pulse 1 for MP200-Y Unit
NOTE: Each test pulse will work for the respective meter number. Be careful to test
only one meter group at a time, because the light can “bleed,” affecting accuracy of
pulse counts.
Load will
be
applied
to this
current
input
group
pulse 1 will blink
Test
