Shark MP200 User Manual

Doc# E166703 7-2
7: Using the MP200 CPU’s I/O
Electro Industries/GaugeTech
The Leader In Power Monitoring and Smart Grid Solutions
Electro Industries/GaugeTech
The Leader In Power Monitoring and Smart Grid Solutions
Electro Industries/GaugeTech
The Leader In Power Monitoring and Smart Grid Solutions

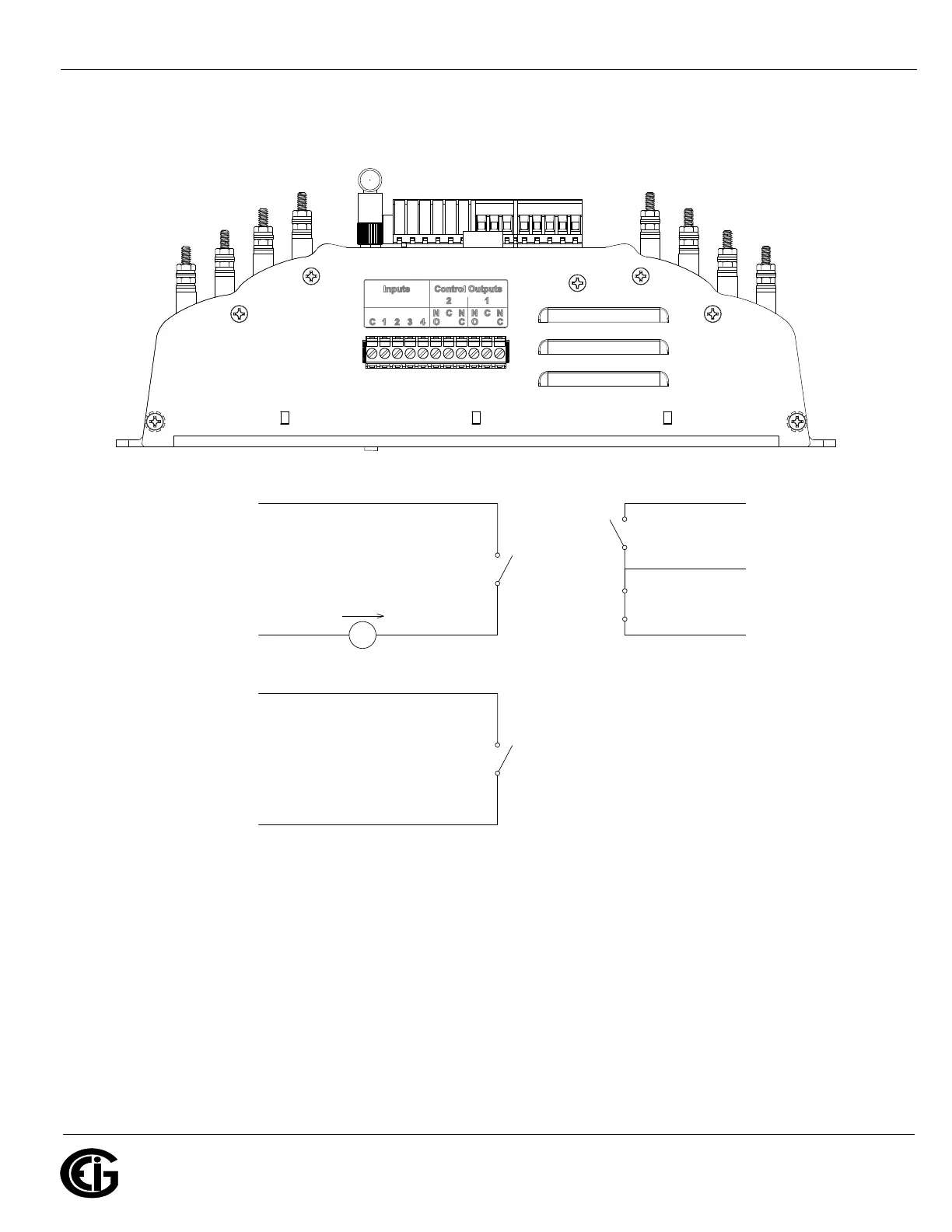

7.2.1: Wiring Diagram
V Loop
+
-
Inputs (1,2,3,4)
Common (C)
Status Input
Wet contacts
Inputs (1,2,3,4)
Common (C)
Status Input
Dry contacts
NO (1,2)
NC (1,2)
Control Output
(Relay Contacts)
C (1,2)
Figure 7.2: Relay Contact (4) / Status Input (2) I/O Wiring
External Connection: AWG#12-26/ (0.08 -2.5) mm
2
11-pin, 0.200” pluggable terminal block
