Doc# E166703 5-2
5: Communicating with the Meter
Electro Industries/GaugeTech
The Leader In Power Monitoring and Smart Grid Solutions
Electro Industries/GaugeTech
The Leader In Power Monitoring and Smart Grid Solutions
Electro Industries/GaugeTech
The Leader In Power Monitoring and Smart Grid Solutions
5.1.1: RS485 / Ethernet or WiFi (Com 1)
Com 1 provides RS485 standard and optional Ethernet or WiFi communication.
It supports Modbus RTU/ASCII/TCP. The RJ45 port and the WiFi antenna will be pres-
ent if this option was ordered. If you did not order the option, they will not be present.
The following sections explain the RS485 configuration in detail. Refer to Chapter 8
for the Ethernet/WiFi configuration. Note that there are Transmission (TX) and Receiv-
ing (RX) LED indicators under the RS485 port. These lights also work with the Ether-
net option, if it is being used.
NOTE: Com 3 also provides RS485 communication - see 5.1.4: RS485/Display Port
(Com 3), on page 5-7.
5.1.2: RS485 Communication
RS485 allows you to connect one or multiple MP200 units to a PC or other device, at
either a local or remote site. All RS485 connections are viable for up to 4000 feet
(1219.20 meters).

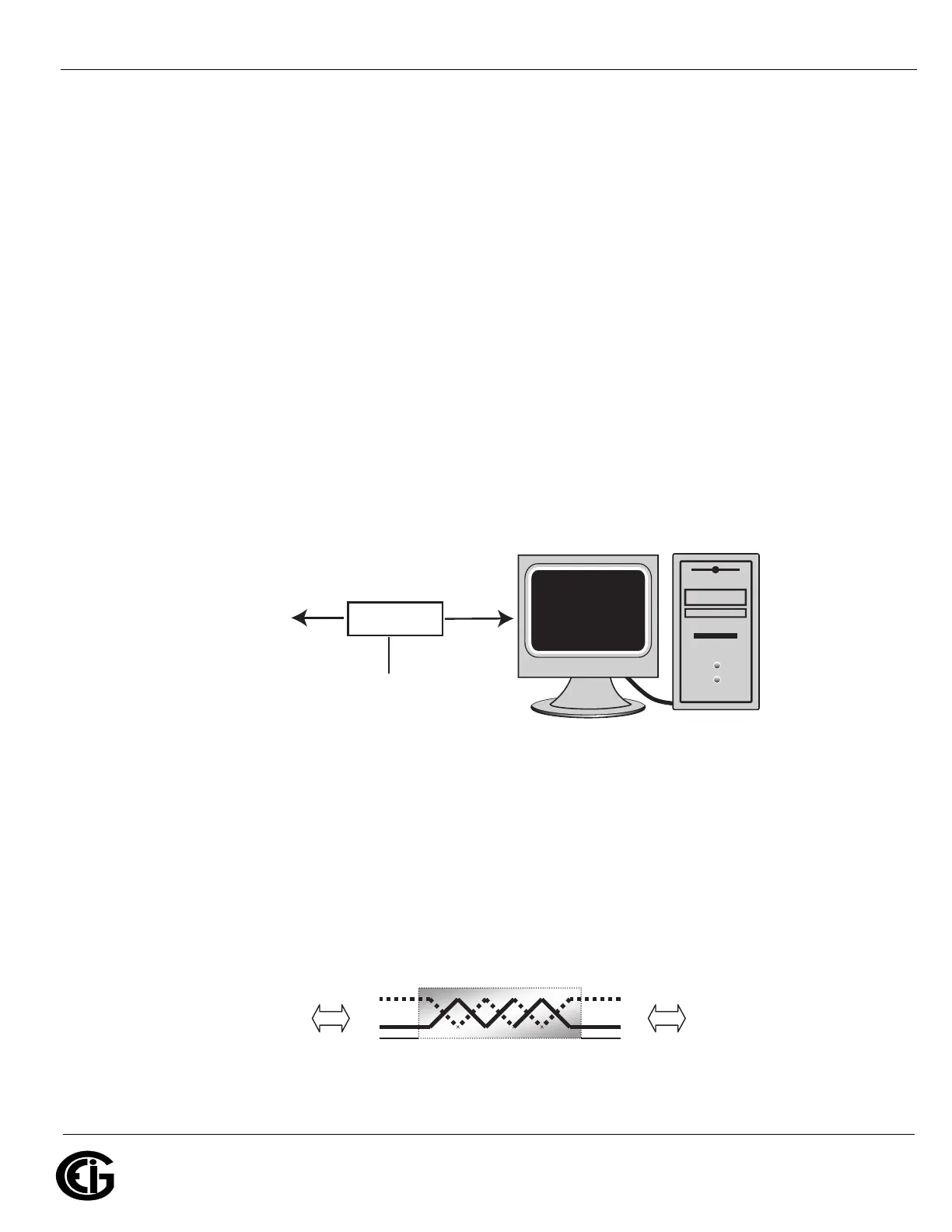

Figure 5.2: MP200 Unit Connected to a PC via RS485 bus
As shown in Figure 5.2, to connect an MP200 unit to a PC using RS485 communica-
tion, you need to use an RS485 to RS232 converter, such as EIG’s Unicom 2500. See
5.1.2.1: Using the Unicom 2500, on page 5-5, for information on using the Unicom
2500 with the MP200 unit.
Figure 5.3 shows the detail of a 2-wire RS485 connection.
Figure 5.3: 2-wire RS485 Connection
RS485/RS232
Converter
EIG Recommends the Unicom 2500
for RS485/RS232 Conversion
RS485
RS232
MP200
metering system’s
RS485 Port
From other RS485 device
Connect :
• ( − ) to ( − )
• (+) to (+)
• Shield(SH) to Shield(SH)
MP200 metering system’s
RS485 connection
