4.3: Voltage and Power Supply Connections
Voltage inputs are connected to the bottom of the MP200 unit via wire connectors.
The connectors accommodate AWG# 12 -26/ (0.129 - 3.31) mm
2
.

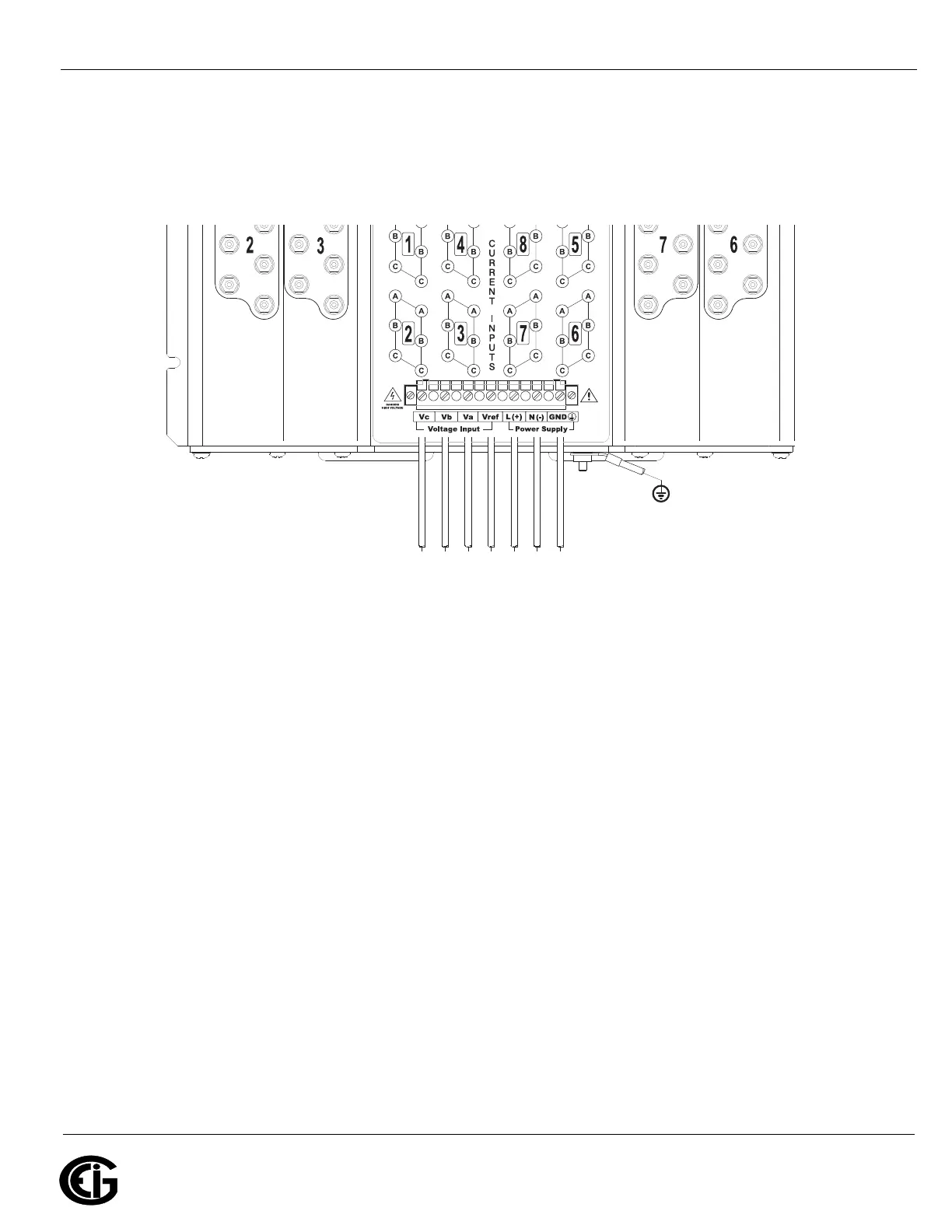

Figure 4.2: MP200 Unit Connections
4.4: Voltage Fuses
EIG recommends the use of fuses on each of the sense voltages and on the control
power, even though the wiring diagrams in this chapter do not show them.
• Use a 0.1 A fuse on each voltage input (rated for 600 volts).
• Use a 3 A Slow Blow fuse on the power supply (rated at 500 volts).
EIG offers the EI-CP Panel meter protective fuse kit, which can be ordered from EIG’s
website:
https://electroind.com/product/panel-meter-protective-fuse-kit/.
Earth Ground
Voltage Power Supply
Inputs Inputs
