Doc# E166703 10-11
10: Using the Optional Display
Electro Industries/GaugeTech
The Leader In Power Monitoring and Smart Grid Solutions
Electro Industries/GaugeTech
The Leader In Power Monitoring and Smart Grid Solutions
AVERTISSEMENT! FONCTIONNEMENT ACCIDENTEL DE L'ÉQUI-
PEMENT
Ne pas utiliser l'unité comme seul appareil de notification pour
alarmes critiques, comme une surchauffe ou une surintensité.
Le non-respect de ces instructions peut provoquer des blessures graves ou
endommagements de l'équipement ou la mort.
10.4: Display Dimensions
The following figures give the dimensions of the MDSN and MDLN displays and the
back of the displays (the back dimensions are the same for both display models).

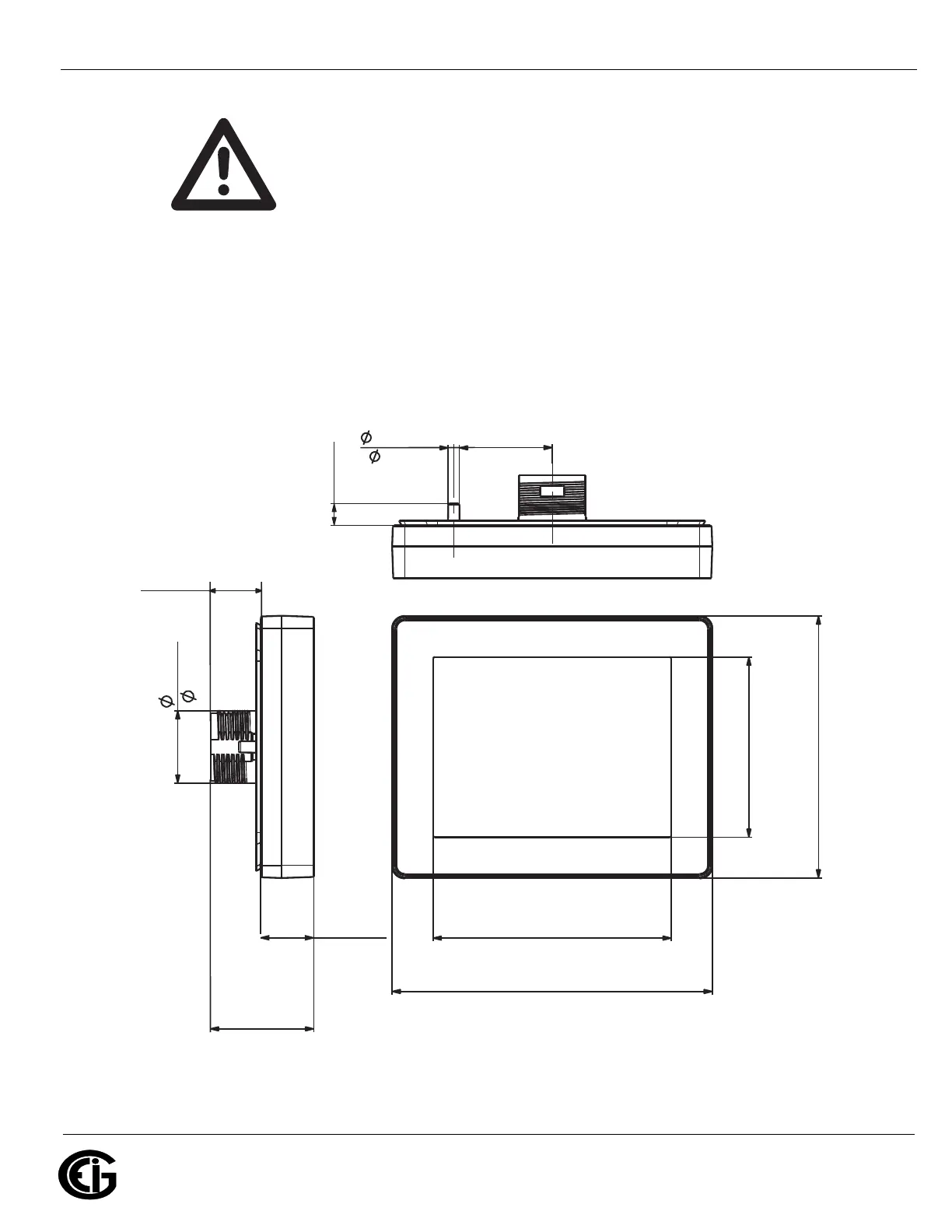

Figure 10.3: MDSN Dimensions
[1.18in]
30mm
3.43mm
0.13in
[0.26in]
6.7mm
[0.63in]
16.2mm
[0.60in]
15.3mm
[1.24in]
31.5mm
[2.85in]
72.6mm
[3.84in]
97.6mm
[2.16in]
55mm
[3.14in]
80mm
22mm
0.86in
To Next Page
