• Easy communication connection - RJ45 Ethernet and RS485 serial communication
options
• Display automatically detects communication connection
• 65k color touch screen
• Pre-programmed MP200-Y and MP200-S readings and status display screens
10.2.1: Contents of Display Kit

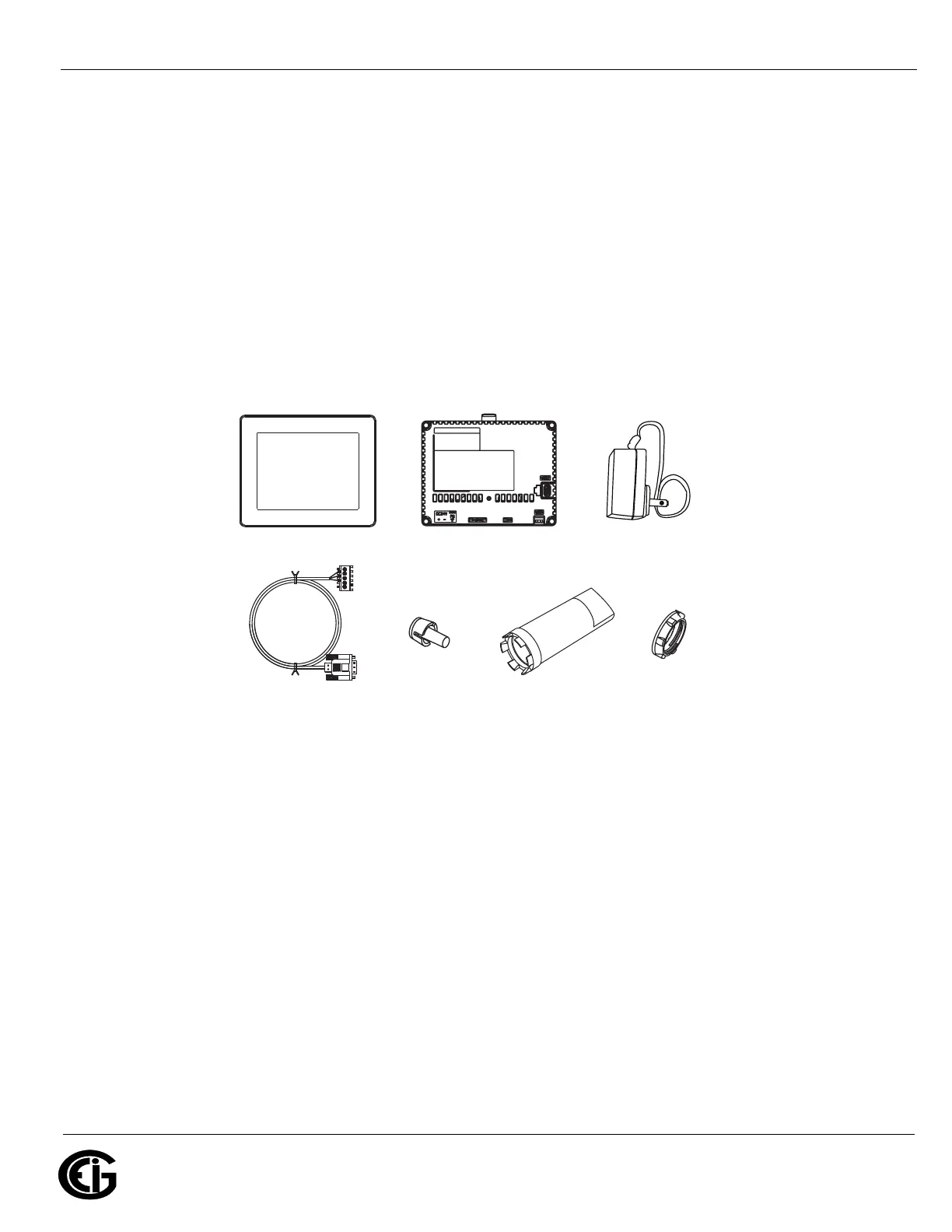

Figure 10.2: Display Kit Contents
(1) Display
(2) Rear Module
(3) Power Supply
(4) RS485 Serial Cable (10 feet)
Mounting Hardware:
(5) anti-rotation tee
(6) socket wrench
(7) installation nut, attached to the back of the display
7
6
5
4
3
2
1
