Doc# E166703 3-1
3: Mechanical Installation and Maintenance
Electro Industries/GaugeTech
The Leader In Power Monitoring and Smart Grid Solutions
Electro Industries/GaugeTech
The Leader In Power Monitoring and Smart Grid Solutions
3: Mechanical Installation and Maintenance
3.1: MP200 Unit Dimensions
NOTE: The drawings shown below and on the next page give you the MP200 unit
dimensions in inches and millimeters [mm shown in brackets]. Tolerance is +/- 0.1”
[.25 cm].

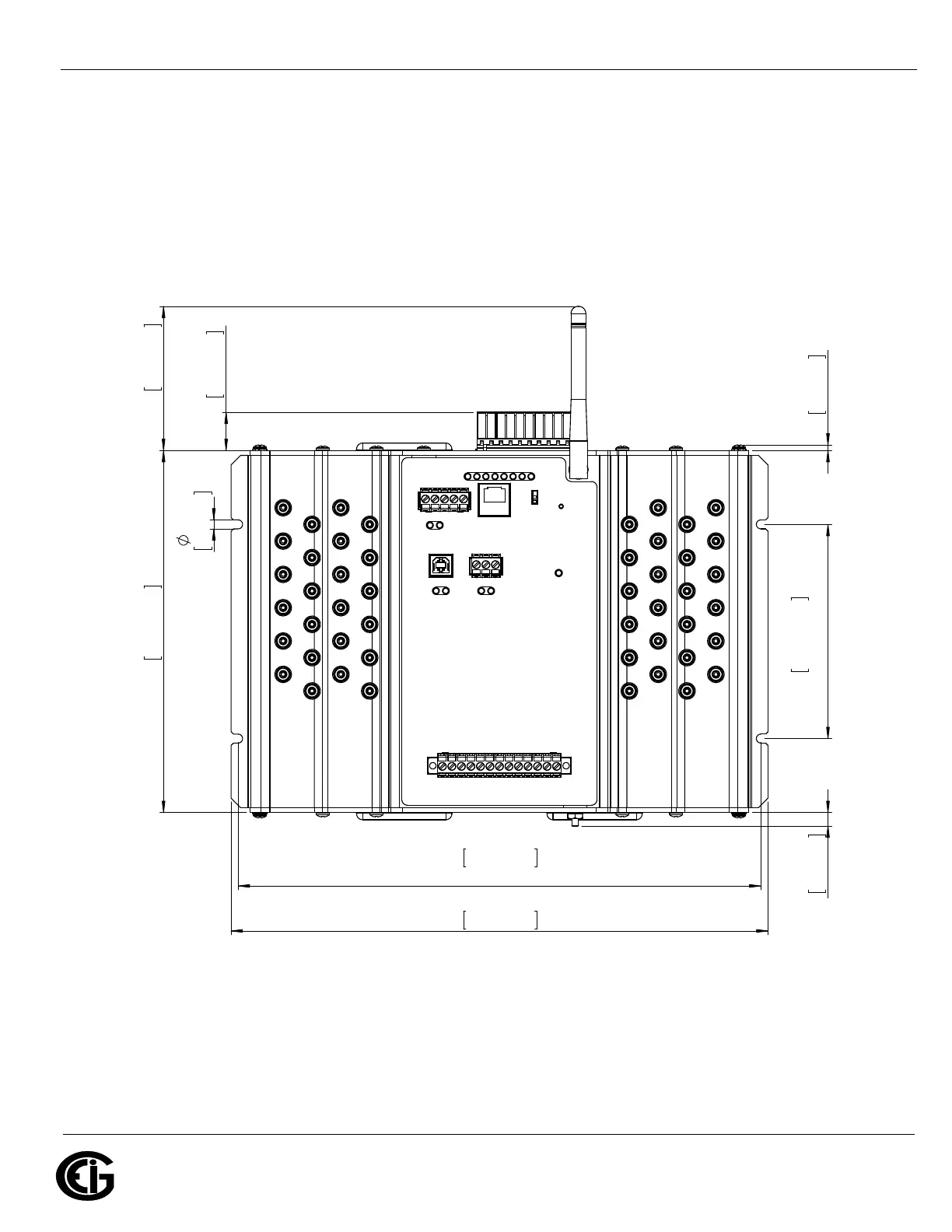

Figure 3.1: MP200 Unit Front Dimensions
193.1mm
286.5mm
0.28in
0.80in
20.4mm
76.9mm
7.60in
11.28in
278.9mm
centered
3.03in
7.2mm
4.8mm
10.98in
0.19in
centered
4.50in
114.3mm
0.12in
2.9mm
