4: Electrical Installation
Electro Industries/GaugeTech
The Leader In Power Monitoring and Smart Grid Solutions
Electro Industries/GaugeTech
The Leader In Power Monitoring and Smart Grid Solutions
Electro Industries/GaugeTech
The Leader In Power Monitoring and Smart Grid Solutions

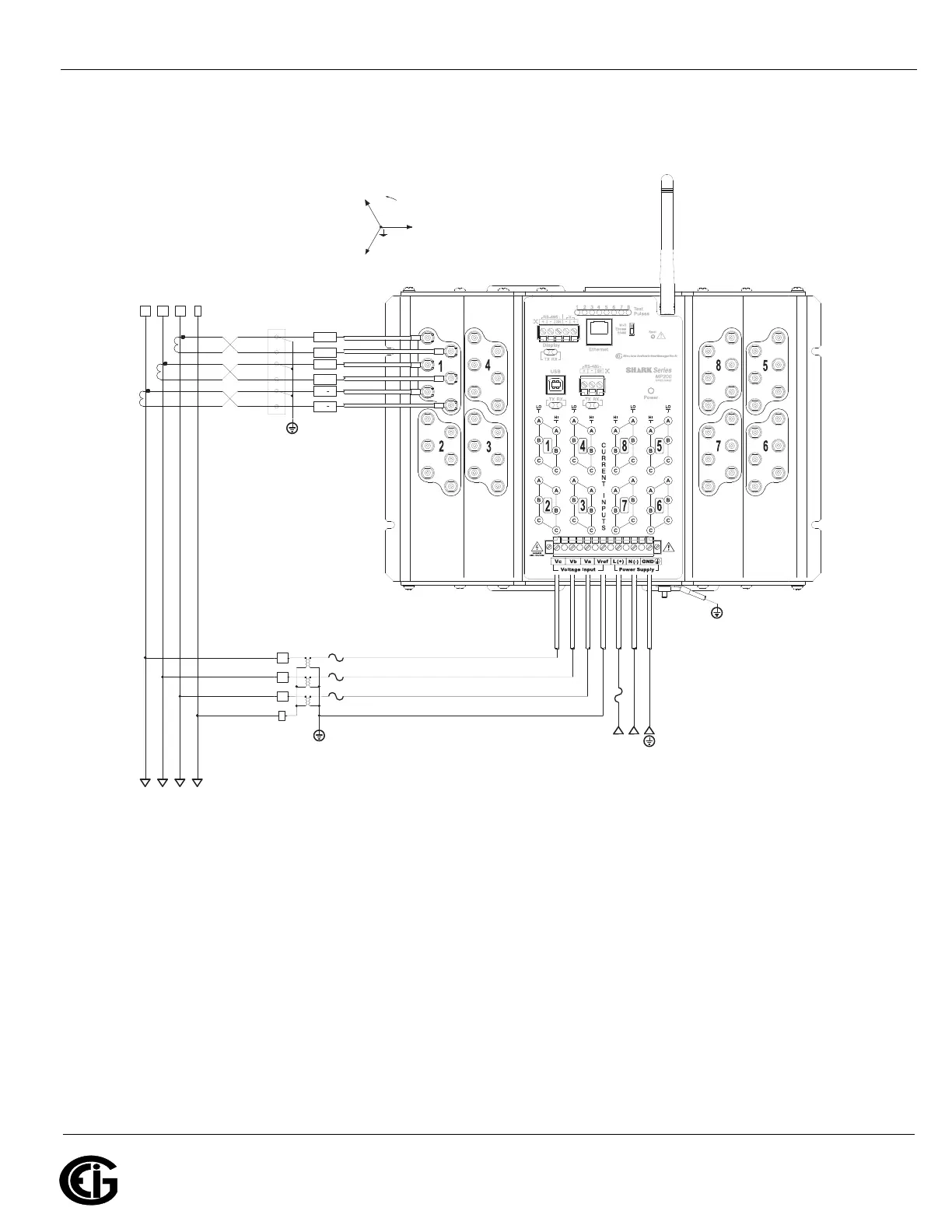

2. Service: Three Phase, 4-Wire WYE Service with 3 PT Voltage and 3 CT
Connection for Metering 8 Three Phase Loads: MP200-Y
NOTES:
• All CTs must have one side grounded to reduce shock hazard.
• You must order the MP200-Y unit for the three phase operation.
• EIG highly recommends using shorting blocks like the EI SB-6TC so that the meter
can be removed from service while the CT is energized.
• 8 shorting blocks should be used for all 8 three phase circuits.
3
2
I1-LO
LOAD
V2 V1
LINE
N
1
L(+) N(-)
I1-HI
V1
I3-HI
V3
V3
I2-HI
I2-LO
N
V2
N
I3-LO
SERVICES: WYE, 4 WIRE.
Power Supply
Connection
CT Shorting Block
EI# SB-6CT
Only one 3 phase circuit is shown.
Duplicate for additional circuits.
Earth Ground
Earth Ground
FUSES
3 x 0.1A
FUSE 3A
Earth Ground
CONNECTION TYPE: 3PTs, CTs
To Next Page
