Shimadzu SPD-20A User Manual

228-90095F
14
4.7 Inside the optical unit

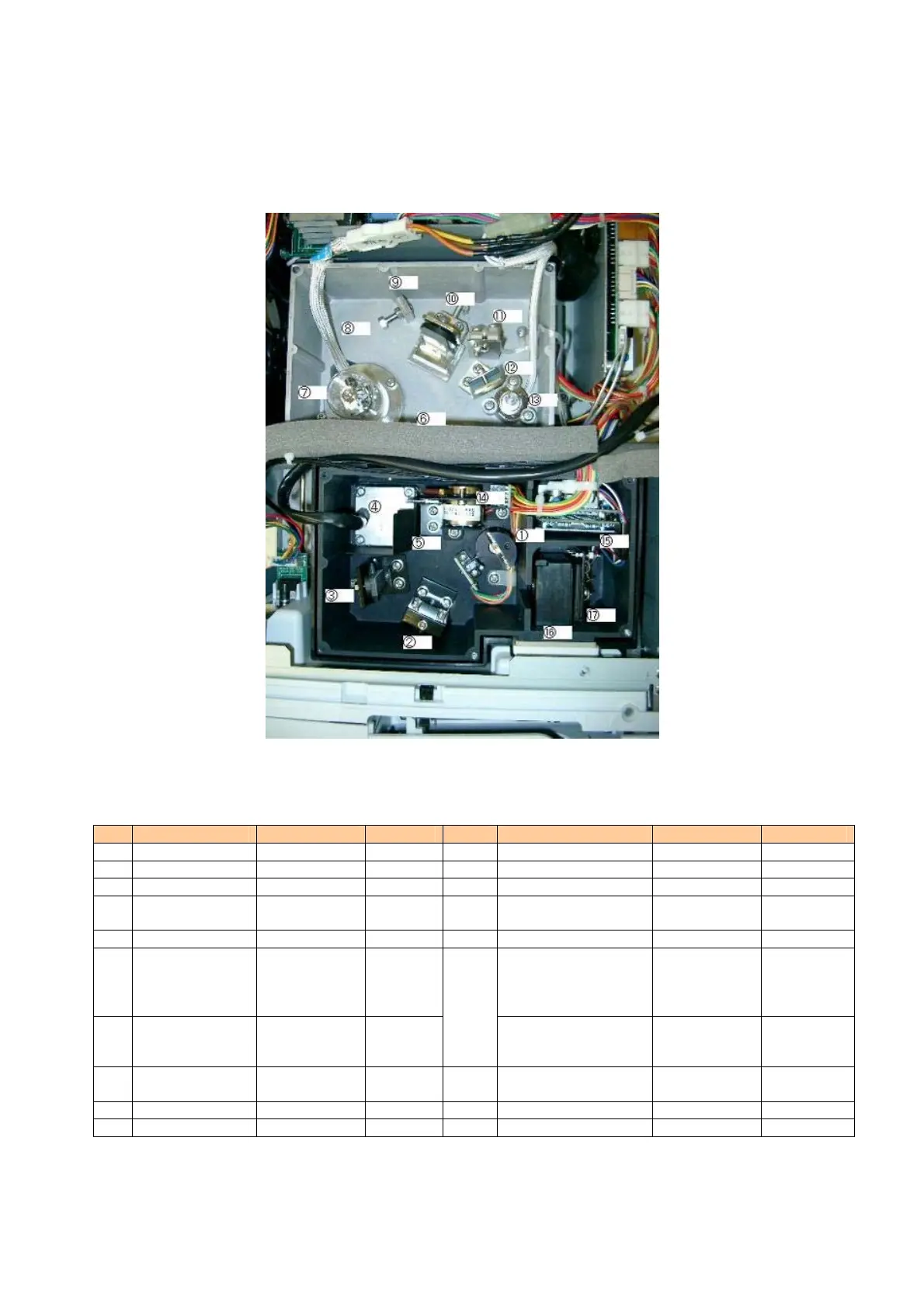

4.7.1 Illustration of optical unit interior
Optical unit interior
4.7.2 List of primary internal parts for optical unit
List of primary internal parts for optical unit
No. Name P/N Remarks No. Name P/N Remarks
1 Grating ASSY 228-15257-95 11 Hg lamp ASSY 228-38214-96
2 M2 mirror ASSY 228-23014-91 12 Filter ASSY (VIS) 228-42066-91 For V only
3 M3 mirror ASSY 228-23041-93 13 W lamp 670-14602 For V only
4 Motor ASSY, VP 228-23027-92 14
Filter ASSY (UV)
FilterASSY (UV/VIS)
228-42008-91
228-42008-92
For A
For V
5 Slit ASSY 228-23021-91 15 PB-1 SPD20A ASSY 228-23691-95
6 Window 228-34795
Standard
temperature-cont
olled flow cell
ASSY
228-37440-94
7 D2 lamp 228-34016-02
16
Temperature-controll
ed semi-micro flow
cell ASSY
228-45605-94
For UFLC.
8 Stopper screw 228-15664-06 17
Silicon photocell
ASSY
228-23016-91
9 Stopper 228-25428
10 M1 Assy 228-23037-95
