228-90095F
7

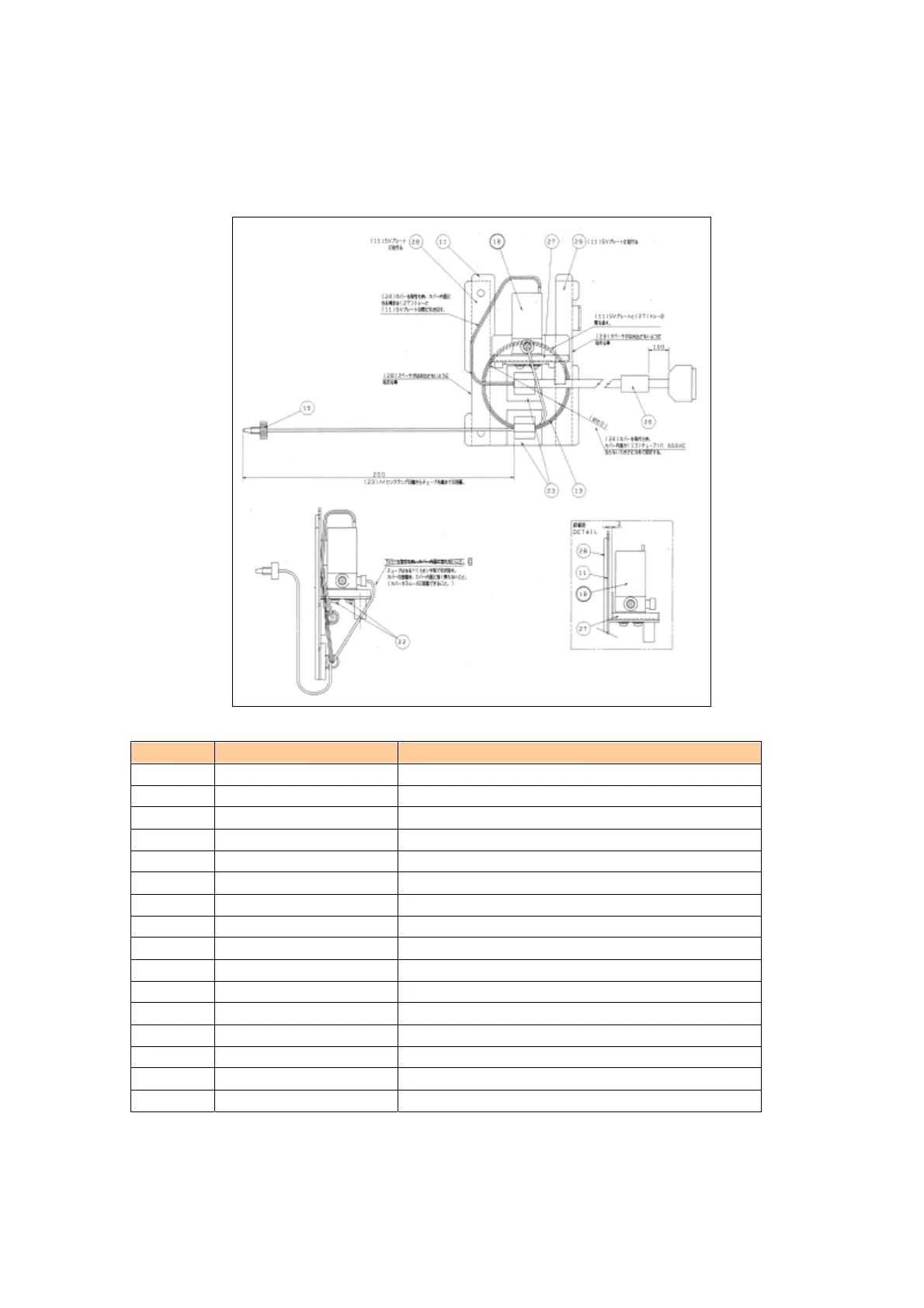

11.2 Parts list and diagram for solvent recycle valve
(228-35310-91 45080-91)
No. Part number Part name
11 228-39732 Plate, SV
13 228-35364-91 Tube, inlet assembly
14 228-35365-91 Tube, outlet assembly
15 228-18565 Nut, male PEEK
18 228-35454-91 Valve, MRV 3-way
21 020-37054 Screw, SS truss head M4 x 8
22 020-46536 Screw, SS sems P3 M3 x 10
23 072-60319-01 Clamp, DKN-10GSP
24 228-35453 Cover, SV
26 075-08032-03 Filter core, EMI SFC-6
27 228-35673 Tray
28 228-35674-01 Spacer
29 228-35674-02 Spacer
30 228-30292 IM, recycle valve kit (JE)
31 037-02797-01 Knob, KDM-16-M4-10
32 228-25162-03 Tube, drain SI
