Shimadzu SPD-20A User Manual

228-90095F
6
8
Chapter 11 Optional parts
11.1 Parts list and diagrams for optional parts
11.1.1 Temperature-controlled semi-micro cell (228-45605-94)
Refer to Sections 4.8.1 and 4.8.2 regarding the temperature-controlled flow
cell assembly

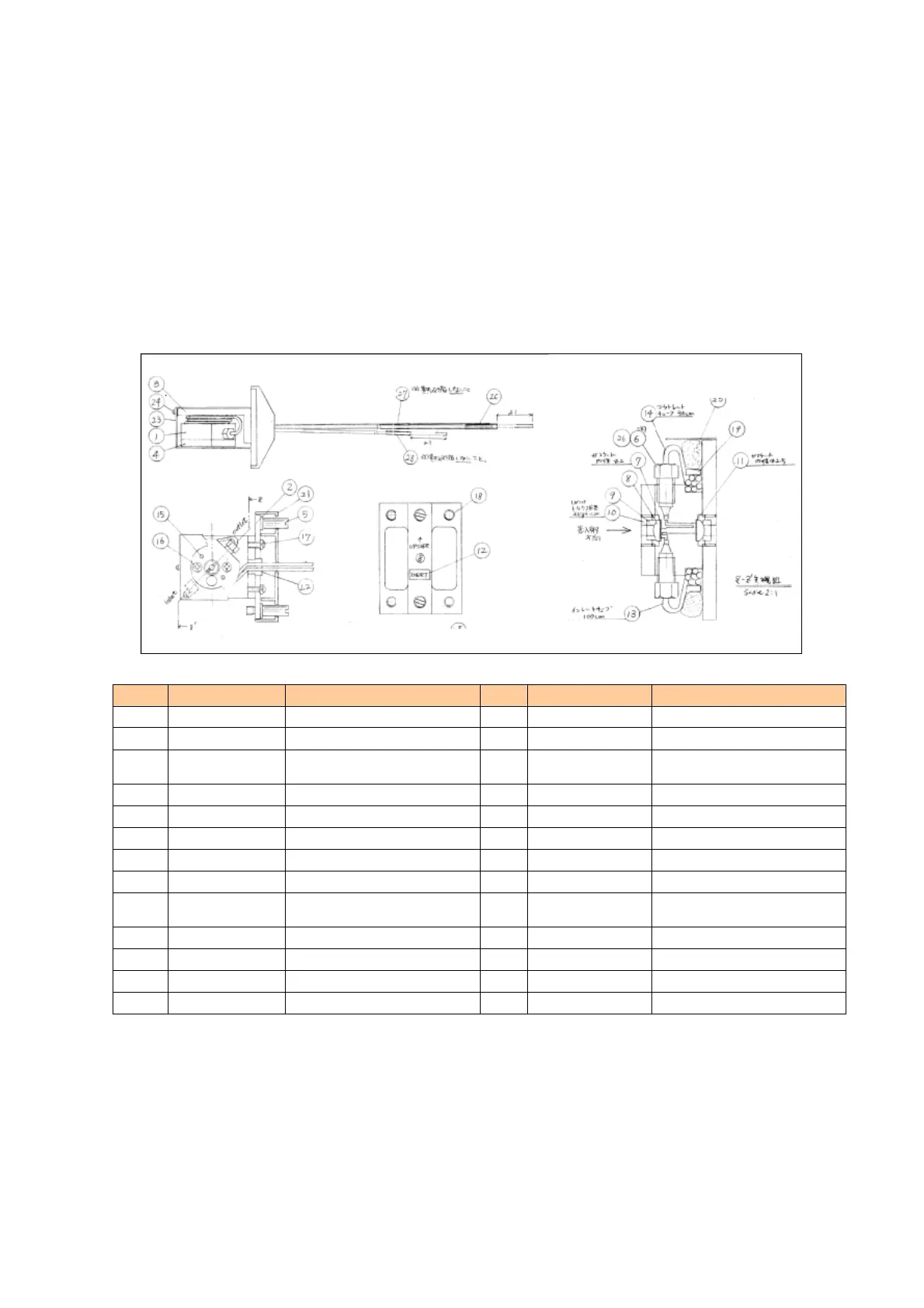

11 .1.2 Inert cell (without temperature control) (228-33338-91)
No. Part Number Part Name No. Part Number Part Name
1 228-32982 Cell housing 14 228-33376-30 Tubing, PEEK 1.6 x 0.25
2 228-25440 Plate ”A” 15 026-02034 Spring pin, SST 2 x 8
3 228-32983 Angle 16 020-46140
Screw, SST sems P2 M3 x
20
4 228-32984 Plate 17 020-46535 Screw, SST sems P3 M3 x 8
5 228-14520 Cell fixing screw 18 020-46634 Screw, SST sems P4 M3 x 6
6 228-33347 Nut 21 228-23424 Cover, cell
7 228-14571 Gasket, PTFE 22 228-24181 Retaining bush
8 228-14572 Lens (R4, RD6) 23 228-32985 Cover
9 228-14569 Gasket 24 020-02906
Screw, SST pan head
M2 x 4
10 228-14568 Lens fixing screw 25 228-33255 Sponge
11 228-32998-02 Gasket, PTFE 6 x 2.5 x 0.2 26 228-31638 Ferrule 1.6F PEEK
12 228-25277-04 Label, inert 27 016-37722-06 FEP tube, NFL016
13 228-33376 Tubing, PEEK 1.6 x 0.25 28 016-37722-06 FEP tube, NFL016
