228-90095F
2
7

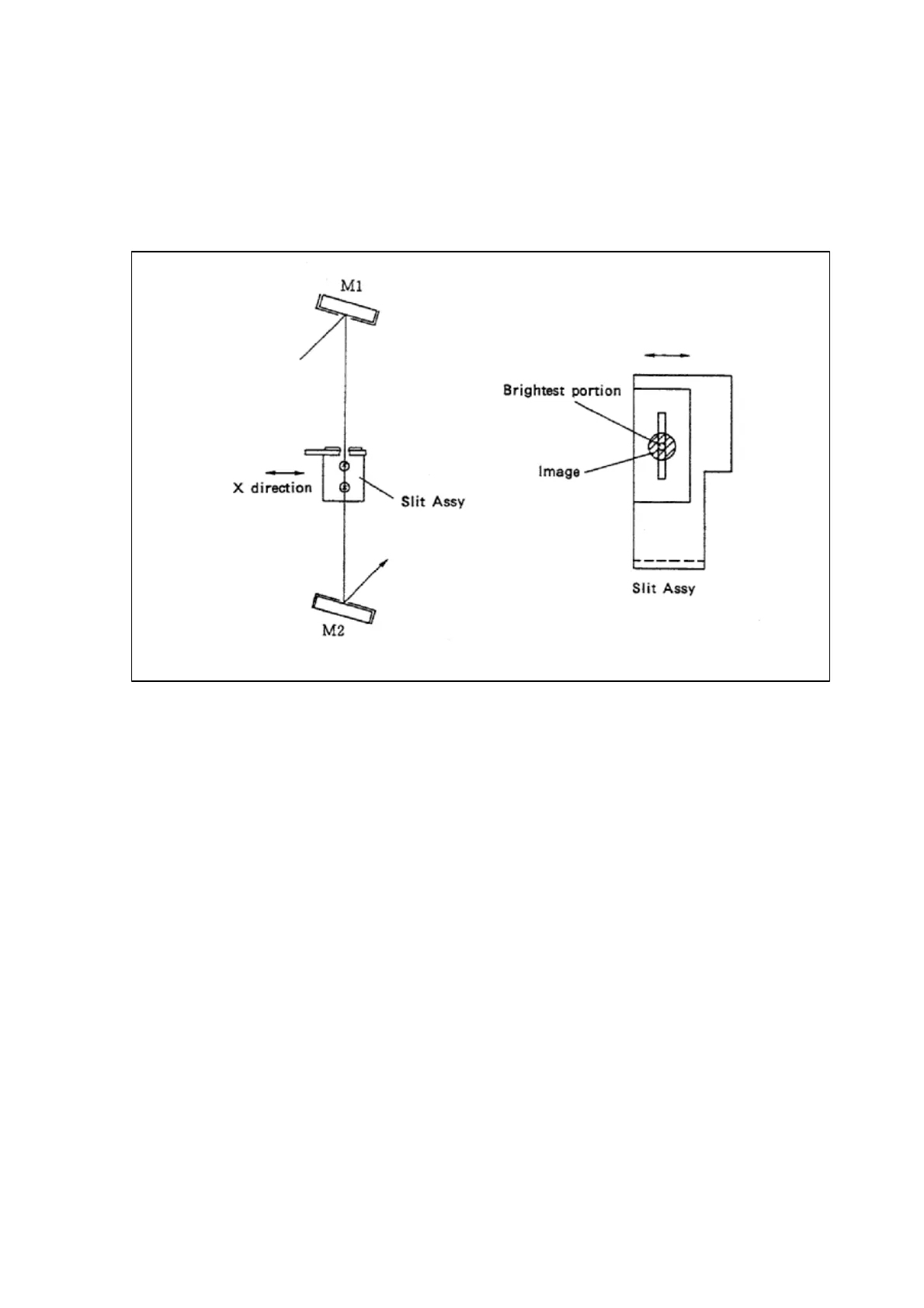

6.3.5 Adjusting slit position
Attach the slit assembly and adjust it in the X-direction so the image center
(the brightest portion) is projected on the slit, then secure the slit assembly.
