17

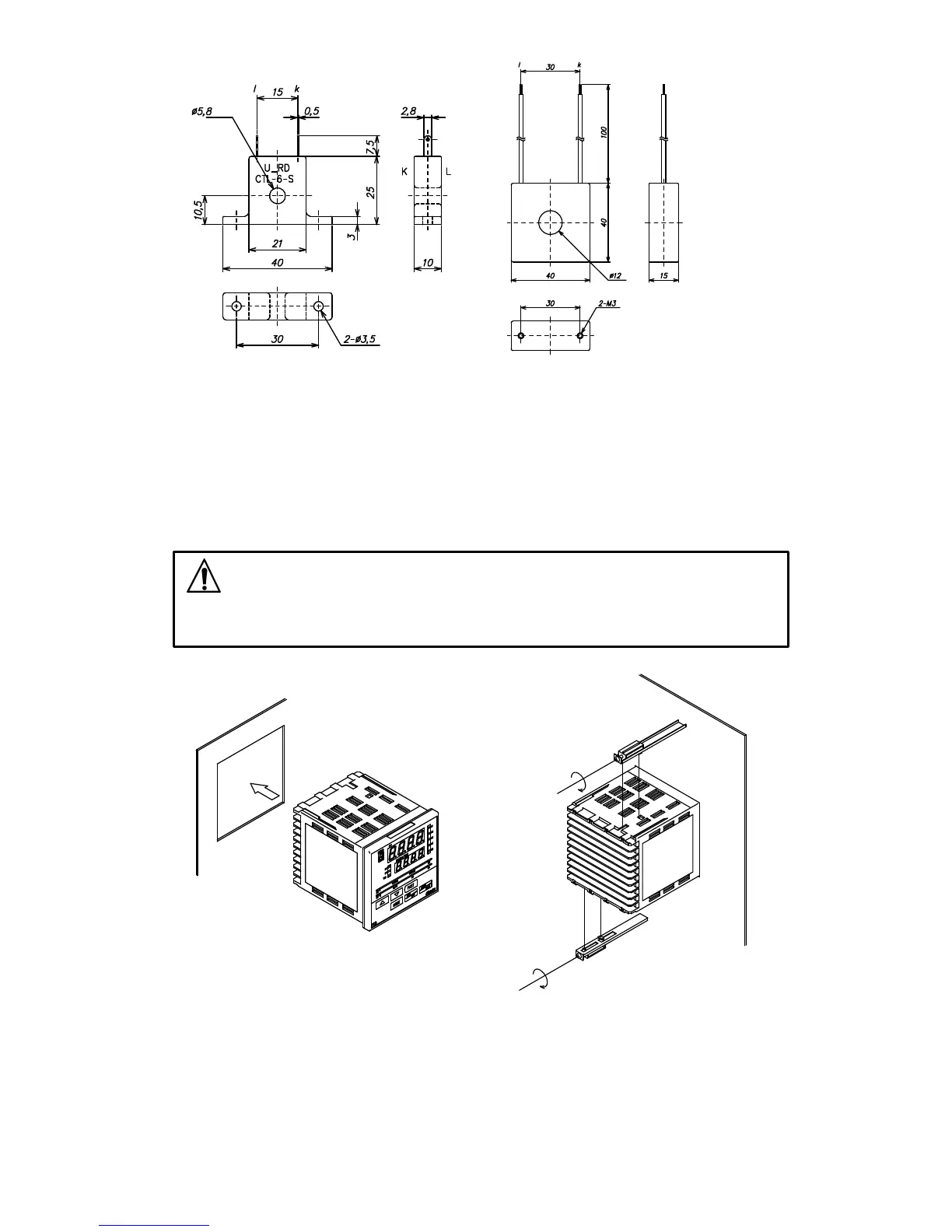

4.4 Current transformer (CT) dimensions (Scale: mm)
CTL-6S (for 20A) CTL-12-S36-10L1U (for 50A)
(Fig. 4.4-1)
4.5 Mounting
Mountable panel thickness is 1 to 8mm.
Insert the FCD-13A from the front of the panel.
Attach the mounting brackets to the slots at the top and bottom of the case,
and secure the controller in place with the screws provided.
Notice
As the case is made of resin, do not use excessive force while screwing in the
mounting bracket. The torque should be 0.12N•m.
(Fig. 4.5-1)
