35

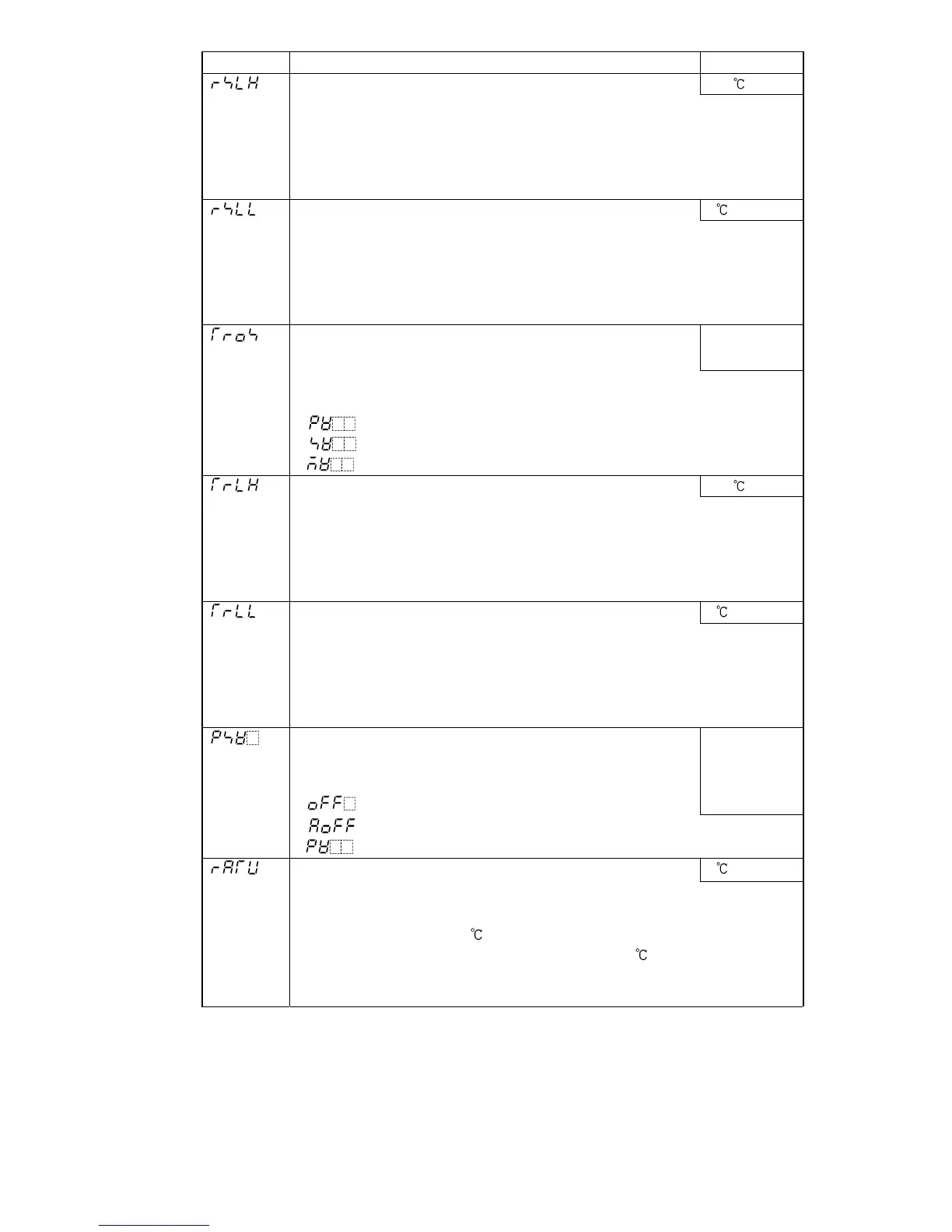

Character Name, Function, Setting range Default value
External setting input high limit 400
• Sets External setting input high limit value.
For EA option (4 to 20mA), the value corresponds to 20mA input.
• Available only when External setting (EA, EV option) is added
• Setting range: External setting input low limit to
Input range high limit value
External setting input low limit 0
• Sets External setting input low limit value.
For EA option (4 to 20mA), the value corresponds to 4mA input.
• Available only when External setting (EA, EV option) is added
• Setting range: Input range low limit to
External setting input high limit value
Transmission output
• Selects a Transmission output type.
PV
transmission
• Available only when Transmission output (TA, TV option) is added
• Selection item:
: PV transmission
: SV transmission
: MV transmission
Transmission output high limit 400
• Sets the Transmission output high limit value.
For TA option, the value correponds to 20mA output.
• Available only when Transmission output (TA, TV option) is added
• Setting range: Transmission output low limit to
Input range high limit value
Transmission output low limit 0
• Sets the Transmission output low limit value.
For TA option, the value correponds to 4mA output.
• Available only when Transmission output (TA, TV option) is added
• Setting range: Input range low limit to
Transmission output high limit value
Indication when control output OFF
• Selects the indication when the control output is OFF.
• Selection item:
: OFF is indicated on the PV display.
OFF is
indicated on
the PV
display.
: No indication
: Only PV is indicated.
SV rise rate
0 /minute
• Sets the SV rise rate (Rising value per minute).
Setting the value to 0 or 0.0 disables the function.
• Setting range: 0 to 9999
/min.
With a decimal point: 0.0 to 999.9
/min.
DC input: 0 to 9999 (The placement of the decimal point
follows the selection.)
To Next Page
