Insulated power output (Option code: P24)
Can be used as a small capacity power source for each sensor and converter.
If this option is added, Alarm 2 (A2 option), Heating/Cooling control (DR, DS, DA
option) or Loop break alarm (LA option) cannot be added.
Output voltage : 24
3V DC (when the load current is 30mA.)
Ripple voltage : Within 200mV (when the load current is 30mA.)
Max load current : 30mA
Color black (Option code: BK)
Front panel: Dark gray
Case : Black
Terminal cover (Option code: TC)
Electrical shock protection terminal cover
Drip-proof/Dust-proof (Option code: IP)
Drip-proof and Dust-proof specification (IP54)
Effective only for panel surface, case section is excluded.
To protect the controller from water leaks between control panel and controller,
take note of the following.
(1) The panel cutout dimensions should be proper and have no burr(s).
(2) The control panel surface to be mounted should be vertical.
The front cover (soft type, sold separately) is recommended for comprehensive
Dust-proof/Drip-proof protection.

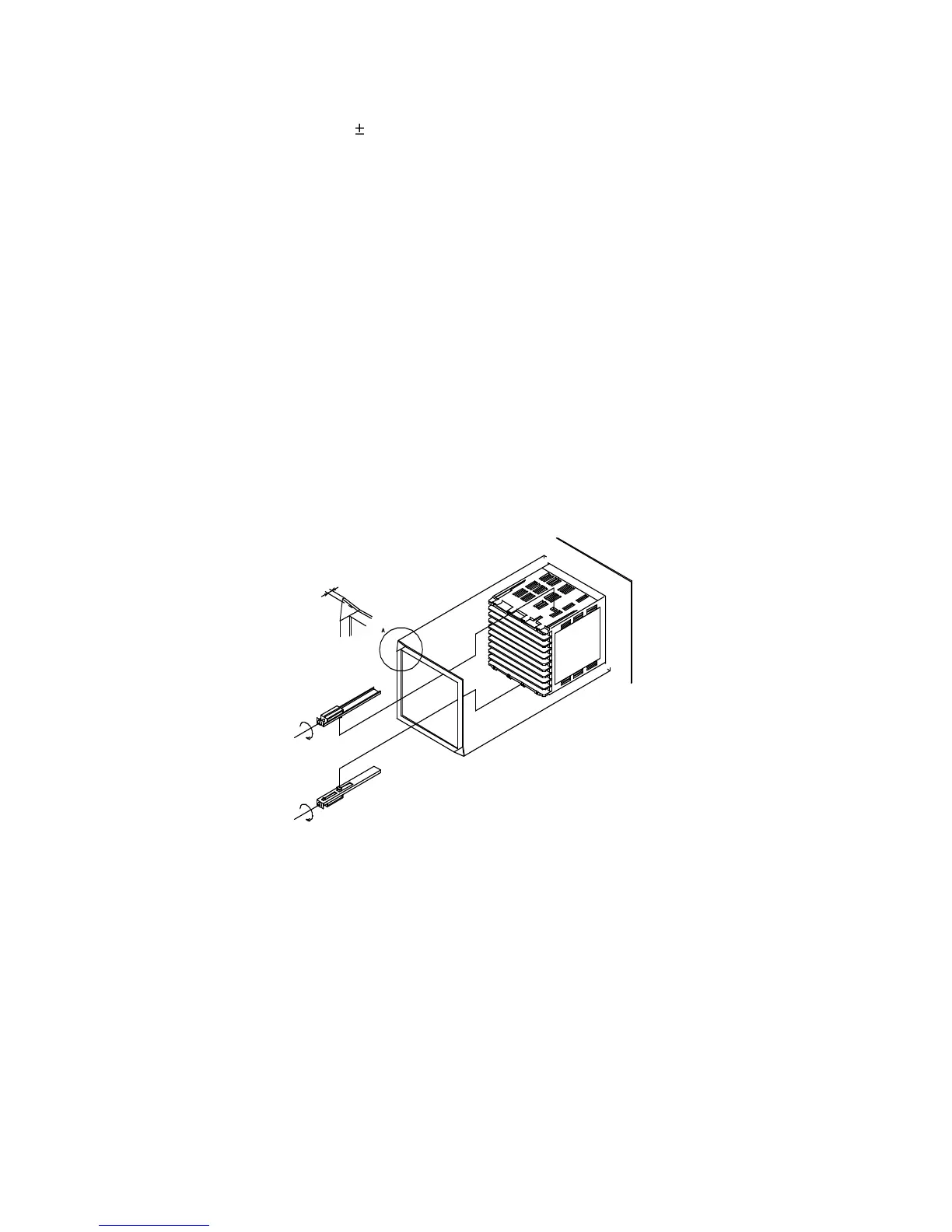

(Fig. 12.2-1)
User specified
Input, Scale range : Shipped as specified range.
Alarm type : Shipped as specified alarm type (A1, Options: A2, A3, A4).
Control action : Shipped as specified control action.
OUT2 action mode : Shipped as specified action mode (DR, DS, DA option).
Transmission output : Shipped as specified output (TA, TV option).
External setting input : Shipped as specified input (EA, EV option).
Transmission output scaling: Shipped as specified scaling range.
F
a
c
e
t
h
e
b
e
v
e
l
e
d
p
a
r
t
t
o
t
h
e
p
a
n
e
l
s
i
d
e
.
