Chapter 3 Operating Instructions
C4000 Select
12 © SICK AG • Industrial Safety Systems • Germany • All rights reserved 8012247/RI61/2007-11-30
Product description
3 Product description
This chapter provides information on the special features and properties of the C4000
Select safety light curtain. It describes the construction and the operating principle of the
device, in particular the different operating modes.
Please read this chapter before mounting, installing and commissioning the device.
3.1 Special features
The C4000 Select supports the following special features:
integrated laser and alignment bar graph
configuration via DIP switches
simple diagnostic codes
an optional LED status indicator
cascading additional C4000 Select system(s) or a single S300/S3000 safety laser
scanner
2 beam codes possible in addition to non-coded operation
status display with 7@segment display
one or two beam floating blanking
3.2 Operating principle of the device

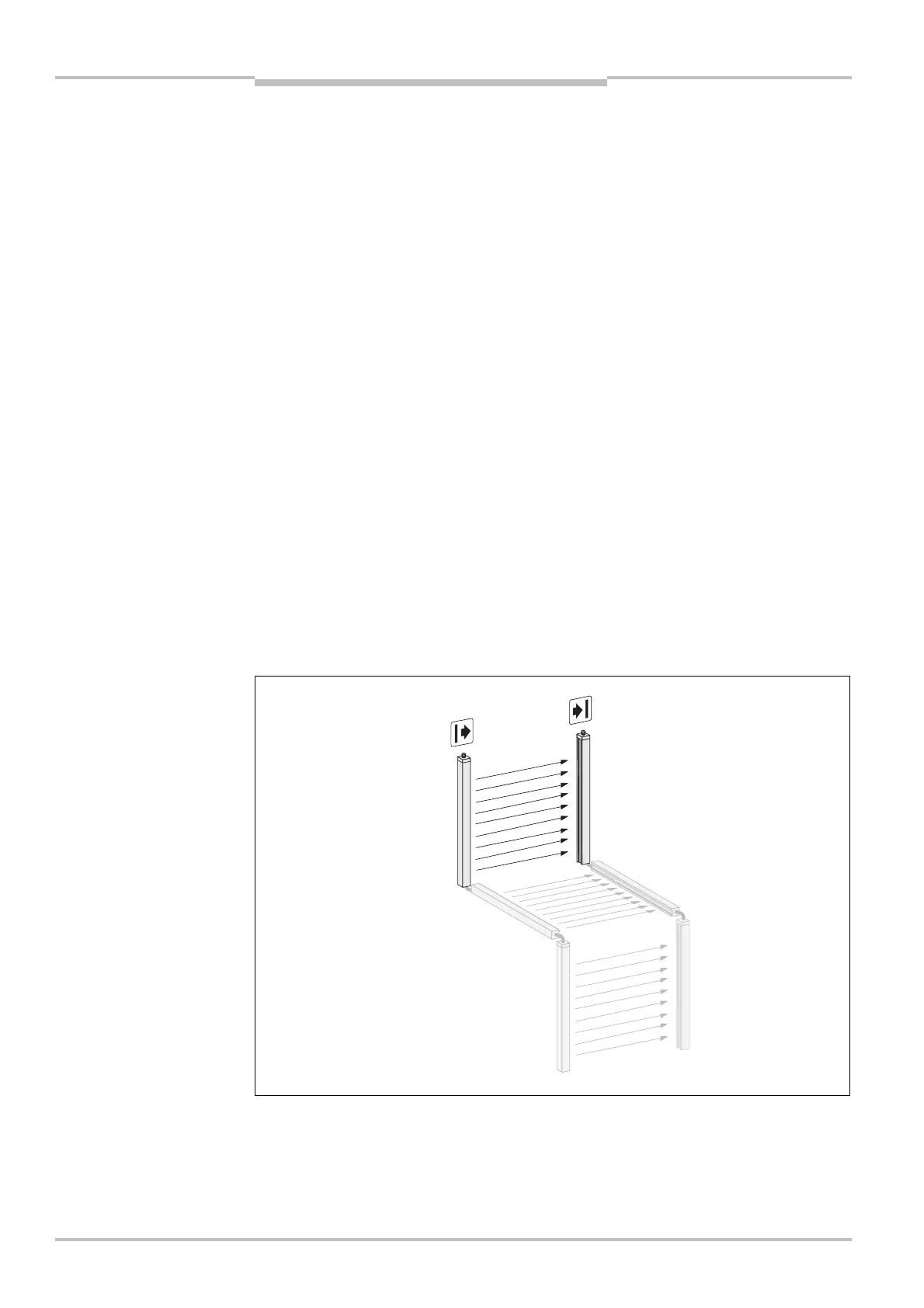

3.2.1 C4000 Select components
Please refer to chapter 11 “Technical specifications” on page 55 for the data sheet.
Please refer to pages 64ff. for the dimensional drawings.
C4000 Select
connection or — in case
1 connected — with
extension connection
Optional: 1. Guest system
without extension
connection or — in case
2 connected — with
extension connection
Optional: 2. Guest system
with or without extension
connection
