Operating Instructions Chapter 11
C4000 Select
8012247/RI61/2007-11-30 © SICK AG • Industrial Safety Systems • Germany • All rights reserved 65
Technical specifications
11.4.2 C4000 Select sender (all variants)
C4000 Select sender dimensions for front and side views, with system connection, with
system connection and top extension connection and with system and extension connec-
tion on bottom; units in mm. Values are typical; consult SICK for engineering.
Protective field height L1 L2 L3
300 302 425 440
600 602 725 740
900 902 1025 1040
1200 1202 1325 1340
1500 1502 1625 1640
1800 1802 1925 1940

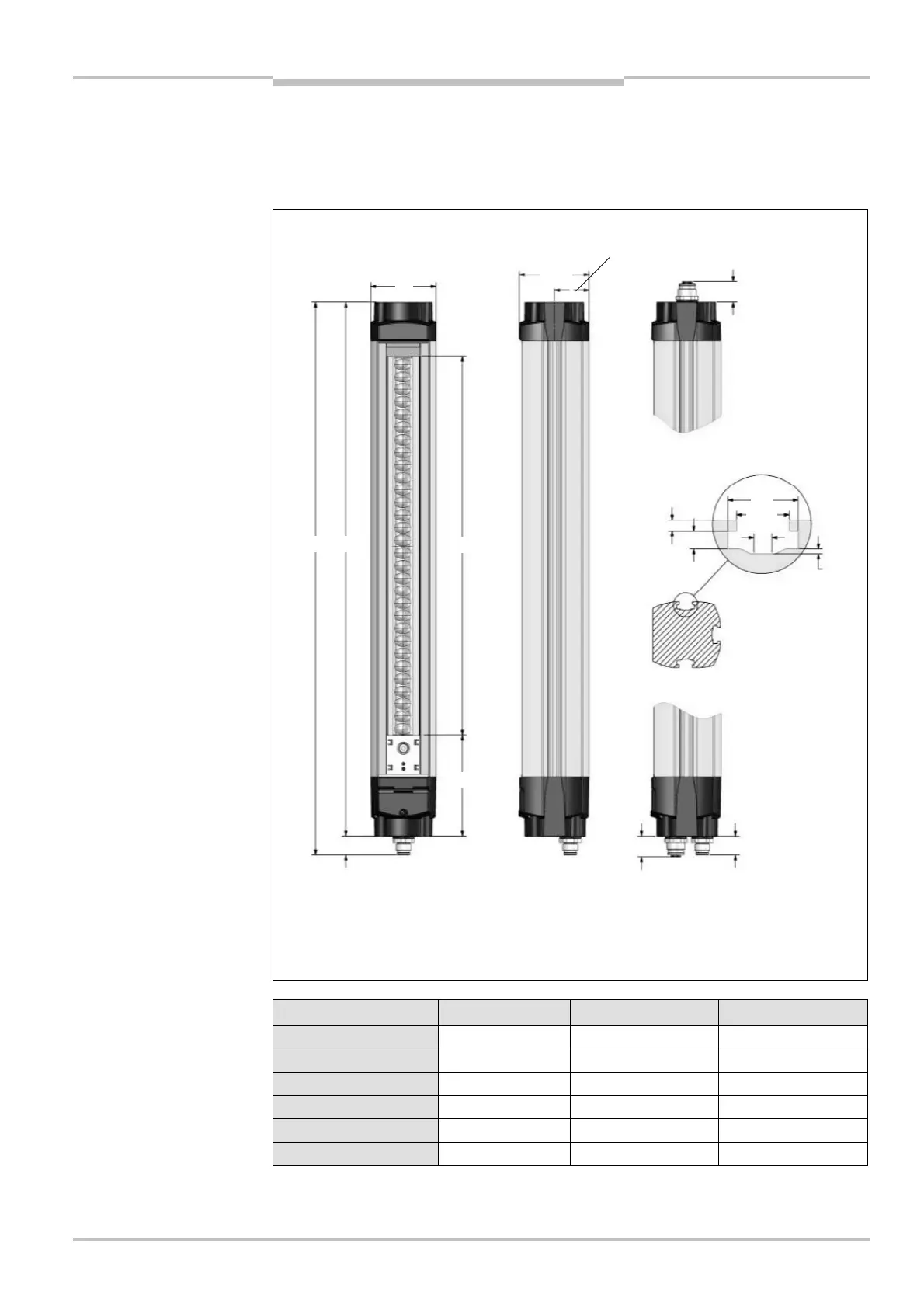

Fig.
35
:
Dimensional drawing
C4000 Select sender (mm)
Tab.
41
:
Dimensions depen-
dent on the protective field
height, C4000 Select sender
(typical)
2.2
10.5
3.6
1
3.5
14
L3
L2
L1
55.5
52
27.5
16
16
15
15
80.4

SICK C4000 Select Specifications

General

Type	Safety Light Curtain
Safety Integrity Level	SIL3
Performance Level	PL e
Enclosure Rating	IP65
Category	Category 4
Light Source	Infrared LED
Operating Voltage	24 V DC
Protection Class	III
Resolution	14 mm, 30 mm
Protective Field Height	300 mm to 1800 mm
Operating Range	0.5m to 9m
Supply Voltage	24 V DC
Operating Temperature	-30 °C to +55 °C
Synchronization	Optical, via cable
Beam Divergence	2.5°
Housing Material	Aluminum
Ambient Temperature Range	-25 °C ... +55 °C
Output Type	PNP
