SICK C4000 Select User Manual

Chapter 11 Operating Instructions
C4000 Select
68 © SICK AG • Industrial Safety Systems • Germany • All rights reserved 8012247/RI61/2007-11-30
Technical specifications
11.4.6 Deflector mirror PNS75
Mirror height
S [mm]
Dimension
L1 [mm]
Dimension
L2 [mm]
Dimension
L3 [mm]
Dimension
A [mm]
340 372 396 460 440
640 672 696 760 740
940 972 996 1060 1040
1240 1272 1296 1360 1340
1540 1572 1596 1660 1640
1840 1872 1896 1960 1940
When using deflector mirrors, the effective scanning range is reduced (see Tab. 13 on
page 26).
Do not use deflector mirrors if the formation of droplets or heavy contamination of the
deflector mirrors is to be expected!
The formation of droplets of heavy contamination can be detrimental to the reflection
behavior. The protective function of the system will be affected and the system will thus
become unsafe. This would mean that the operator is at risk.

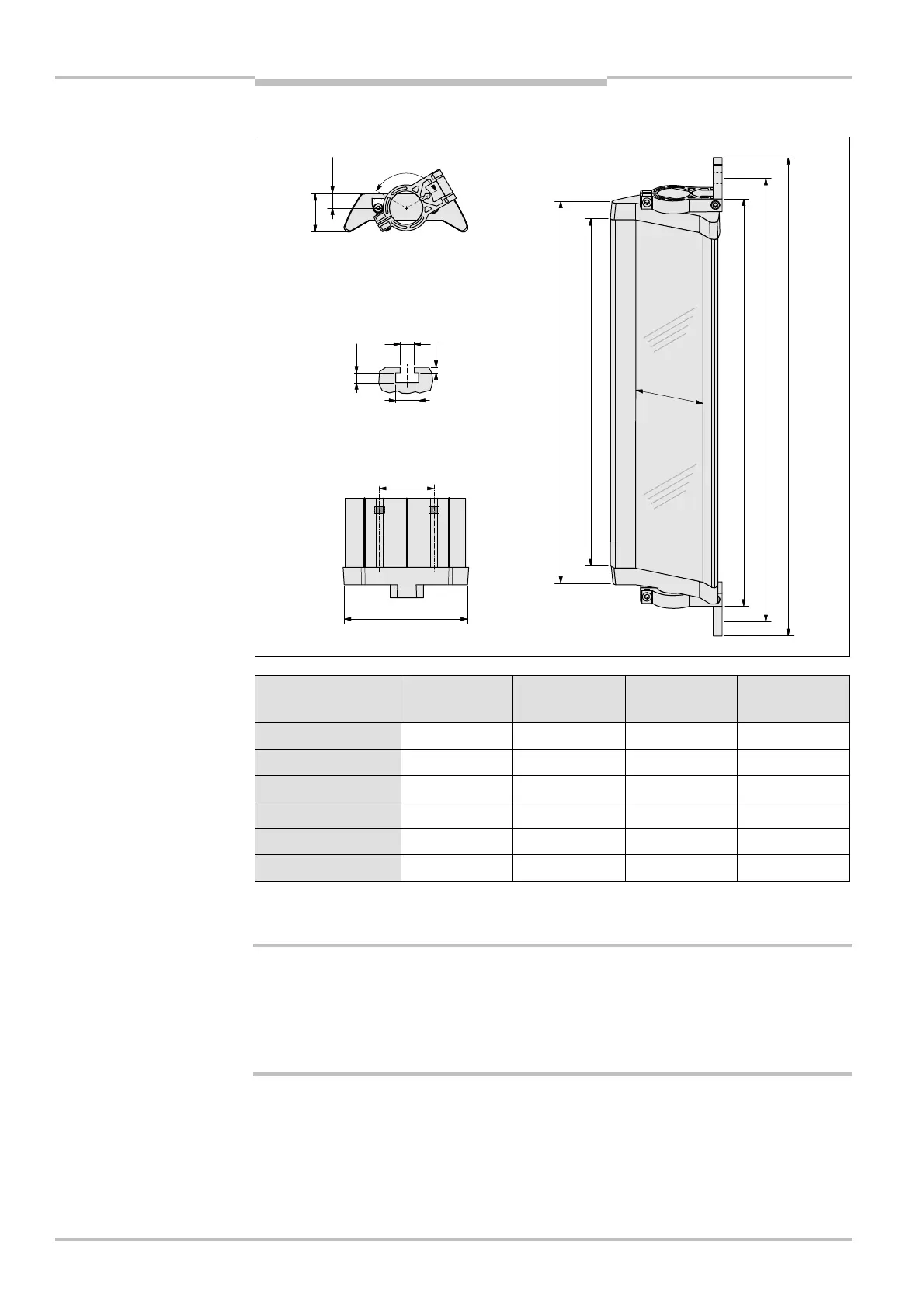

Fig.
39
:
Dimensional drawing
deflector mirror PNS75 (mm)
Tab.
42
:
Dimensions for the
deflector mirror PNS75
dependent on the mirror
height
Note

WARNING
10.5
50
S
35
13.3
±60°
2.5
114
6.5
L1
L2
A
L3
4.5
Sliding nut groove for
side mounting
Mounting with
swivel mount bracket
73

SICK C4000 Select Specifications

General

Type	Safety Light Curtain
Safety Integrity Level	SIL3
Performance Level	PL e
Enclosure Rating	IP65
Category	Category 4
Light Source	Infrared LED
Operating Voltage	24 V DC
Protection Class	III
Resolution	14 mm, 30 mm
Protective Field Height	300 mm to 1800 mm
Operating Range	0.5m to 9m
Supply Voltage	24 V DC
Operating Temperature	-30 °C to +55 °C
Synchronization	Optical, via cable
Beam Divergence	2.5°
Housing Material	Aluminum
Ambient Temperature Range	-25 °C ... +55 °C
Output Type	PNP
