Chapter 5 Operating Instructions

C4000 Select

Installation and mounting

5.2.2 Mounting with side bracket

The side bracket is made of die cast zinc ZP 0400. It is enamelled in black. The side

bracket will be covered by the device after mounting. It provides adjustment so that the

vertical alignment of sender and receiver can be corrected by ±2.5° after mounting.

 Attach the bolts of the side bracket with a torque of between 5 and 6 Nm. Higher

torques can damage the bracket; lower torques provide inadequate protection against

vibration.

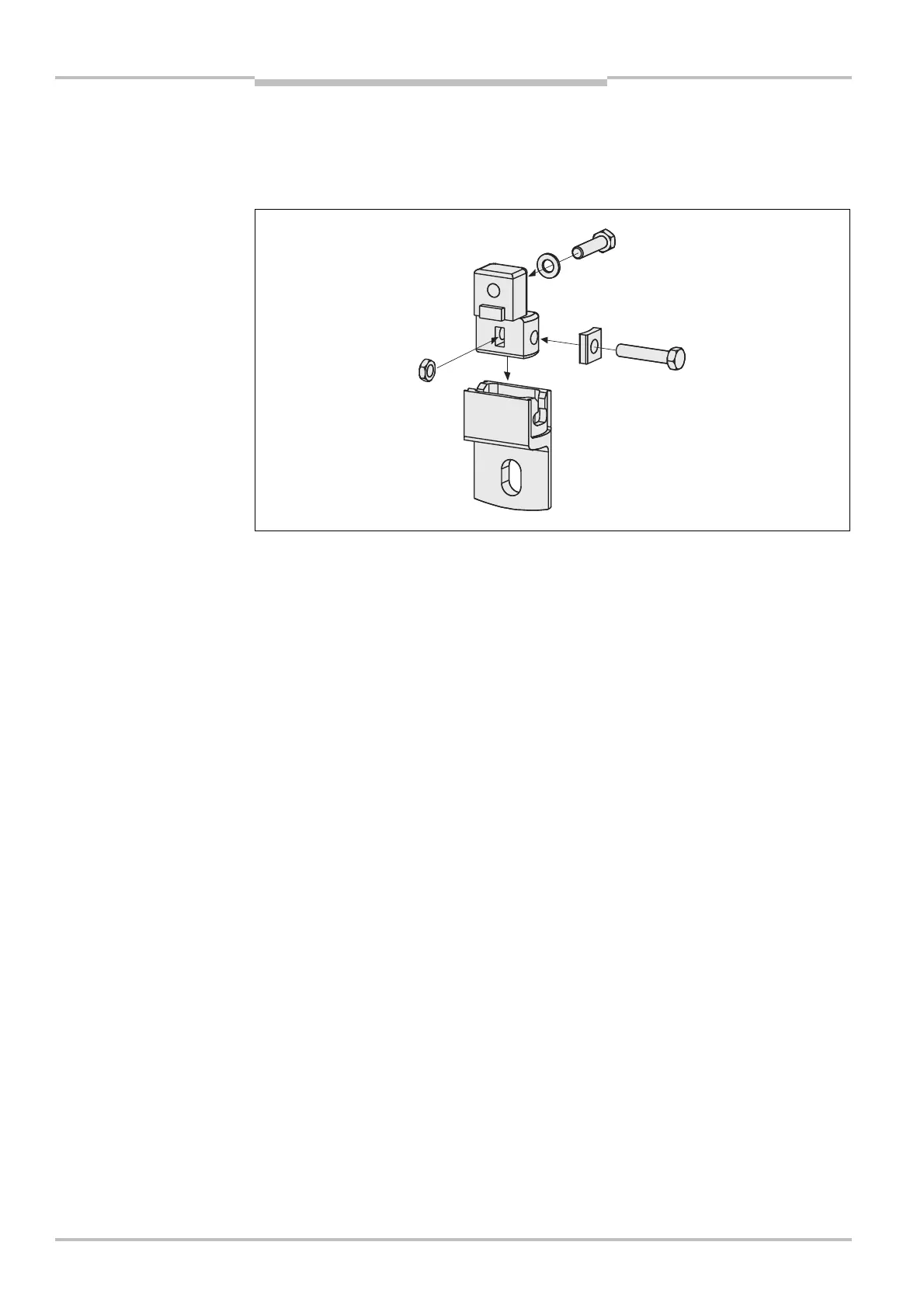

Fig.

Composition of the

side bracket

Notes

Part No. 2019506
