Installation and mounting
The minimum safety distance is defined by several parameters, including:
 stopping/run-down time of the machine or system
(
the stopping/run-down time is shown in the machine documentation or must be
measured under worst case conditions.)
 response time of the protective device (see chapter 11.2 “Response time” on page 58)

reach or approach speed
 resolution of the safety light curtain
 other parameters that are stipulated by applicable standards and regulations
5.1.2 Hazard approach
The minimum safety distance changes based on the implementation of the protective
device. Most applications use a perpendicular (e.g. vertical as shown below) mounting of a
safety light curtain. However, it may be necessary to install the safety light curtain in a
horizontal or angular orientation. The following figure provides examples of perpendicular
(vertical), horizontal and angular implementations of a safety light curtain.

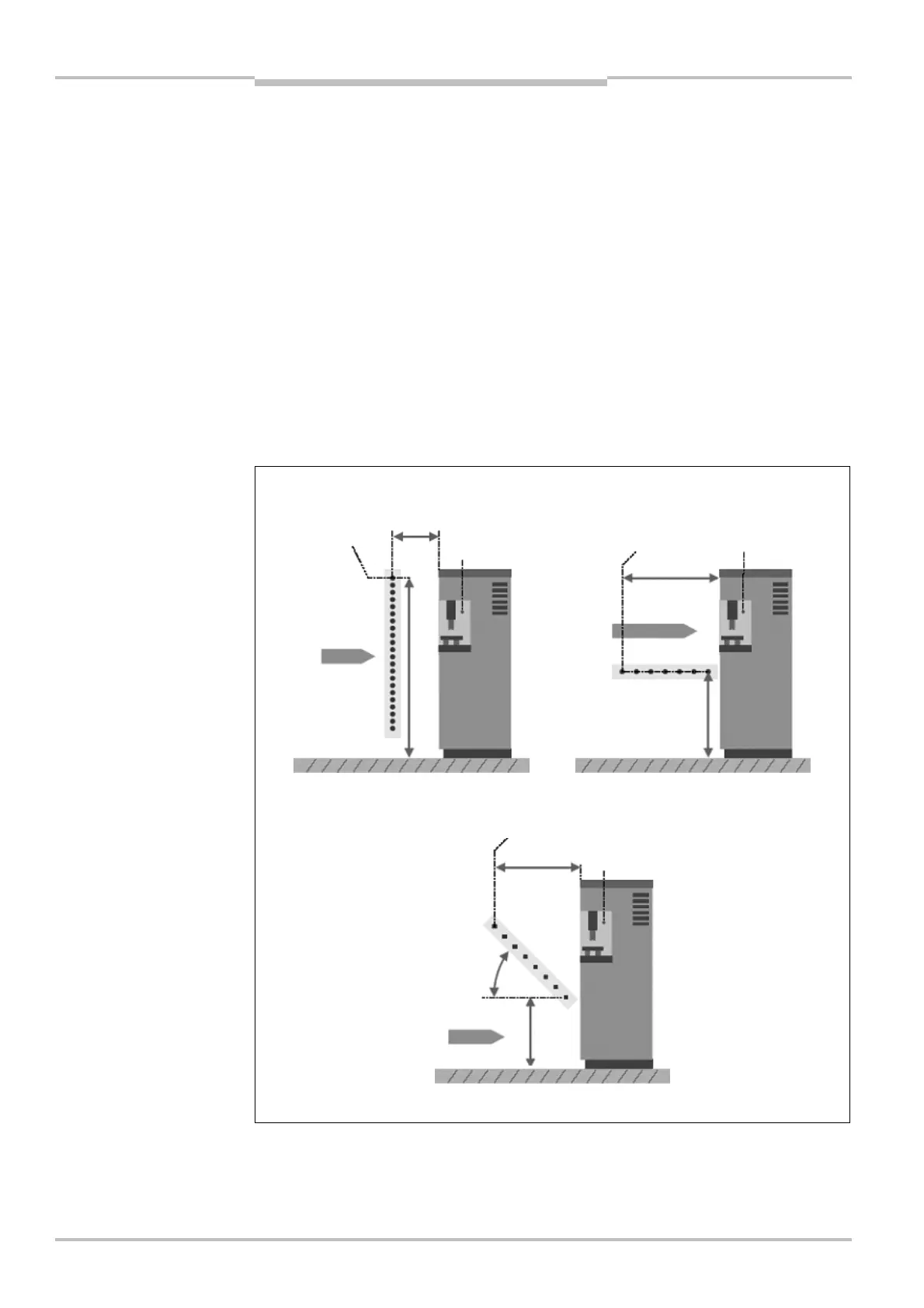

Fig.
18
:
Installation approach
considerations for minimum
safety distance calculation
Limit of
protective
field
Hazardous
area
Direction of
penetration
Floor
D
S
H
AOPD
Limit of
protective field
Hazardous
area
Direction of
penetration
Floor
D
S
H
AOPD
Limit of
protective field
Hazardous
area
Direction of
penetration
Floor
D
S
H
AOPD
?
Perpendicular Horizontal
Angular

SICK C4000 Select Specifications

General

Type	Safety Light Curtain
Safety Integrity Level	SIL3
Performance Level	PL e
Enclosure Rating	IP65
Category	Category 4
Light Source	Infrared LED
Operating Voltage	24 V DC
Protection Class	III
Resolution	14 mm, 30 mm
Protective Field Height	300 mm to 1800 mm
Operating Range	0.5m to 9m
Supply Voltage	24 V DC
Operating Temperature	-30 °C to +55 °C
Synchronization	Optical, via cable
Beam Divergence	2.5°
Housing Material	Aluminum
Ambient Temperature Range	-25 °C ... +55 °C
Output Type	PNP
