Chapter 11 Operating Instructions
C4000 Select
64 © SICK AG • Industrial Safety Systems • Germany • All rights reserved 8012247/RI61/2007-11-30
Technical specifications
11.4 Dimensional drawings
11.4.1 C4000 Select receiver (all variants)
C4000 Select receiver dimensions for front and side views, with system connection, with
system connection and top extension connection, with system and extension connection
on bottom and with top end cap LED; units in mm. Values are typical; consult SICK for
engineering.
Protective field height L1 L2 L3
300 302 425 440
600 602 725 740
900 902 1025 1040
1200 1202 1325 1340
1500 1502 1625 1640
1800 1802 1925 1940

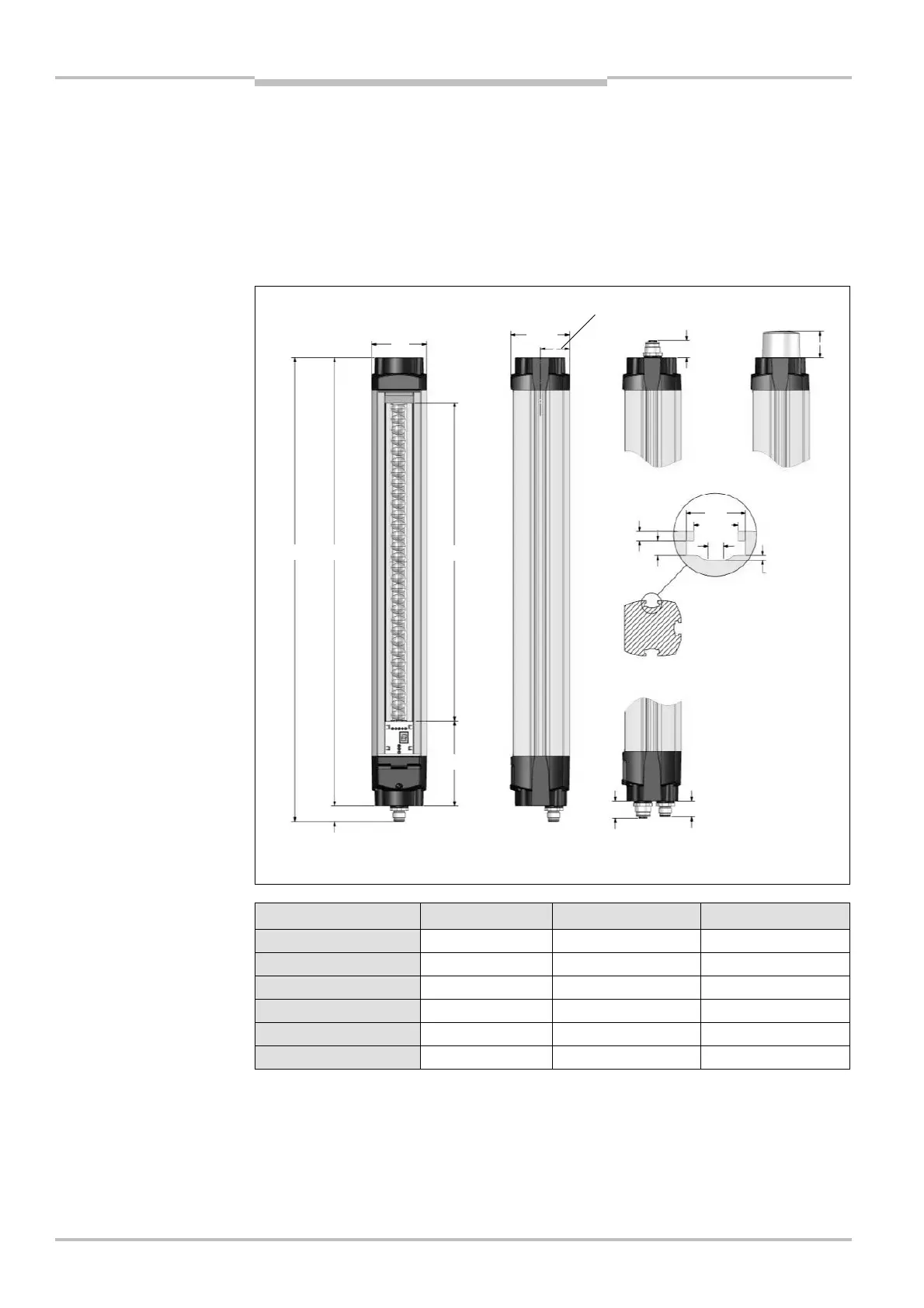

Fig.
34
:
Dimensional drawing
C4000 Select receiver (mm)
Tab.
40
:
Dimensions depen-
dent on the protective field
height, C4000 Select receiver
(typical)
L3
L2
L1
55.5
52
27.5
16
25
2.2
16
15
10.5
3.6
1
3.5
14
15
80.4
