Chapter 5 Operating Instructions

C4000 Select

Installation and mounting

Sender and receiver can be mounted in four different ways:

 mounting with swivel mount bracket

 mounting with side bracket

 mounting with rigid mounting bracket

 mounting with pivoting mounting bracket

5.2.1 Mounting with swivel mount bracket

The swivel mount bracket is made of high-strength black plastic. The bracket is designed

such that sender and receiver can still be accurately aligned even after the bracket has

been mounted.

Attach the screws of the swivel mount bracket with a torque of between 2.5 and 3 Nm.

Higher torques can damage the bracket; lower torques provide inadequate protection

against vibration.

Note

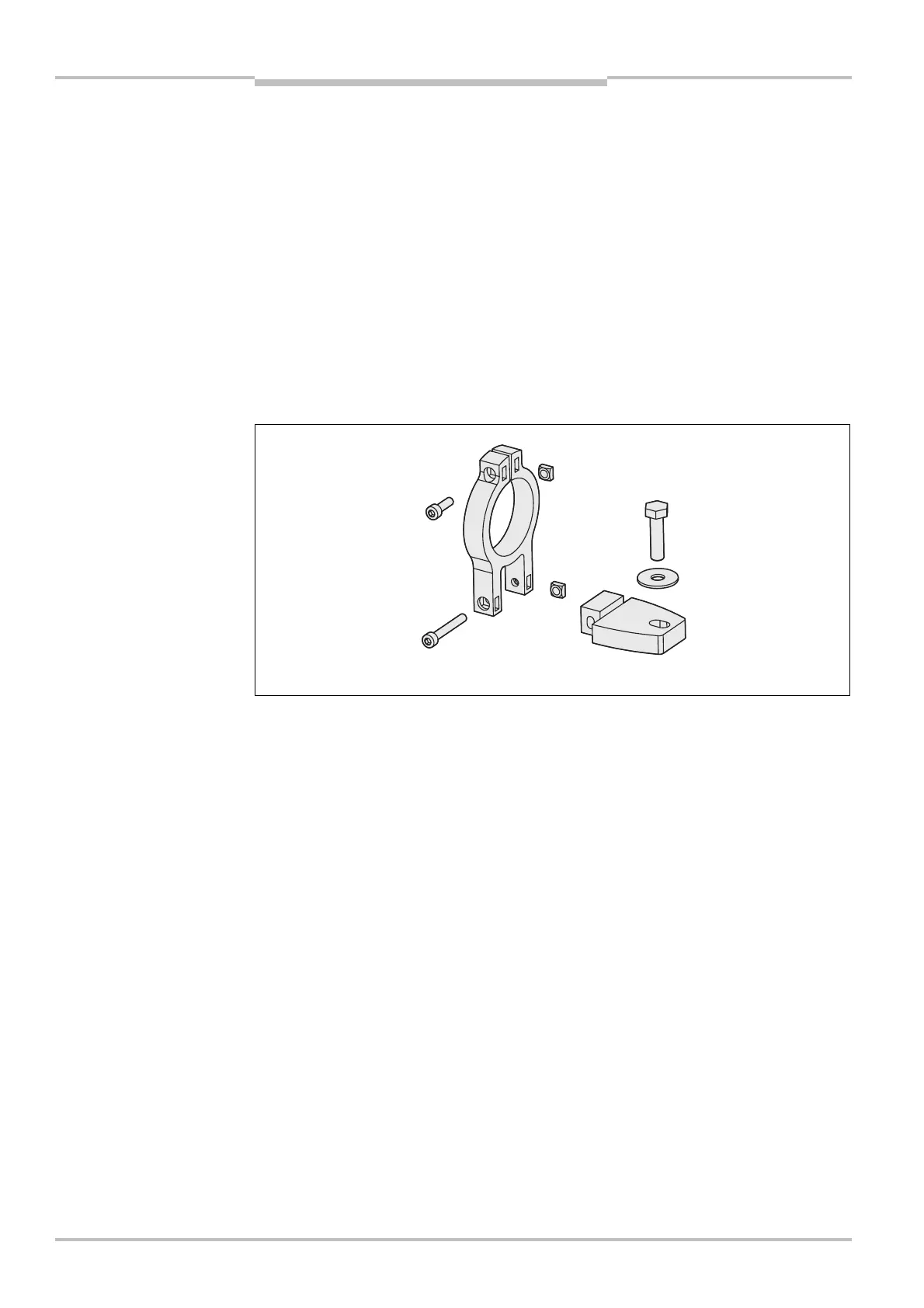

Fig.

Composition of the

swivel mount bracket

Part No.

2030510
