Operating Instructions Chapter 3

C4000 Select

Product description

3.3 Examples of range of use

The C4000 Select safety light curtain operates correctly as a protective device only if the

following conditions are met:

 The control of the machine must be electrical.

 The dangerous state of the machine must be transferable at any time into a safe state.

 Sender and receiver unit must be mounted so that objects penetrating the hazardous

area are safely identified by the C4000 Select.

 An external reset/restart function (e.g. button) must be fitted outside the hazardous

area such that it cannot be operated by a person working inside the hazardous area.

When operating the reset button, the operator must have full visual command of the

hazardous area.

 The statutory and local rules and regulations must be observed when installing and

using the device.

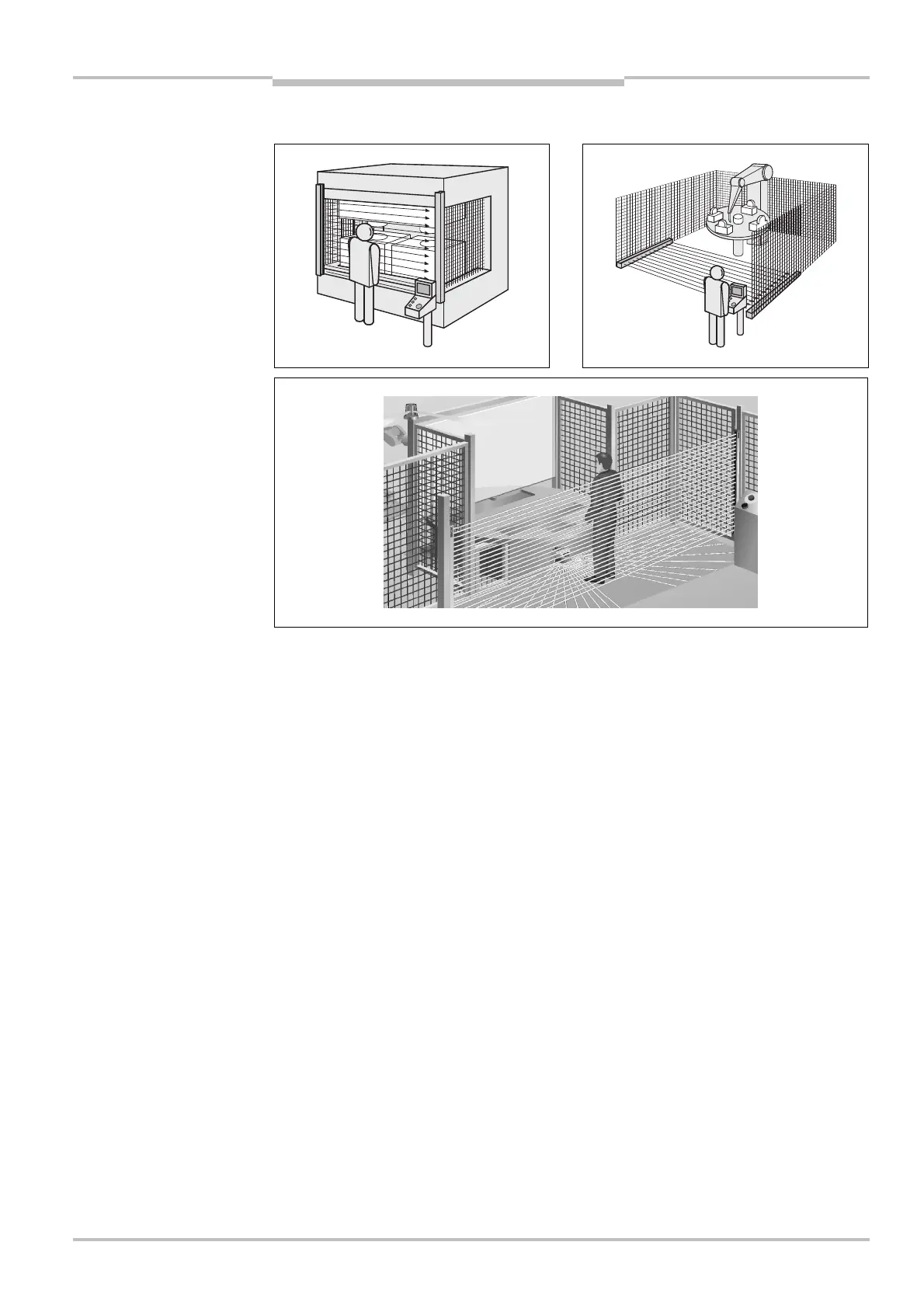

Fig.

Hazardous point pro-

tection using a C4000 Select

safety light curtain

(left)

Fig. 7: Hazardous area pro-

tection using a C4000 Select

safety light curtain

(right)

Fig.

Access protection

using a C4000 Select safety

light curtain cascaded with

an S3000 safety laser

scanner
