Product description
Cascade of C4000 Select and SICK S300/S3000 safety laser scanner
The C4000 Select supports the cascade of a single SICK S300 or S3000 safety laser scan-
n
er. Connection of the S300 or S3000 occurs on the extended I/O connection to provide
both power and connection of safety relevant signals (i.e. safety outputs from the safety
scanner). The extended I/O connection may be located on either the top end cap or with
the system connection on the bottom end cap of the C4000 Select.

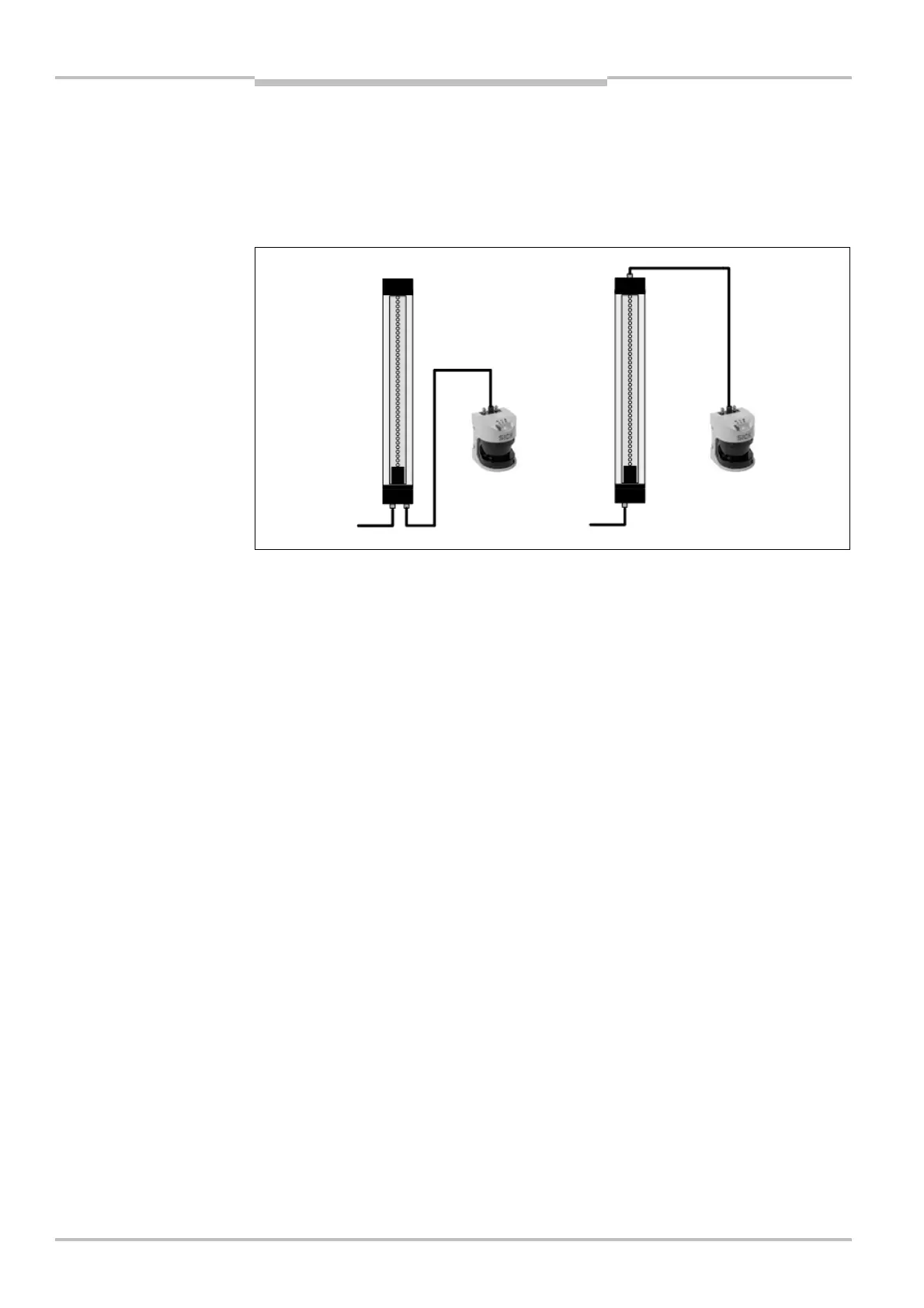

Fig.
5
:
C4000 Select
receiver
with extended I/O connection
(shown on top end cap and
with system connection) used
to cascade a SICK S3000
safety laser scanner
