Maintenance
Subject to change without notice

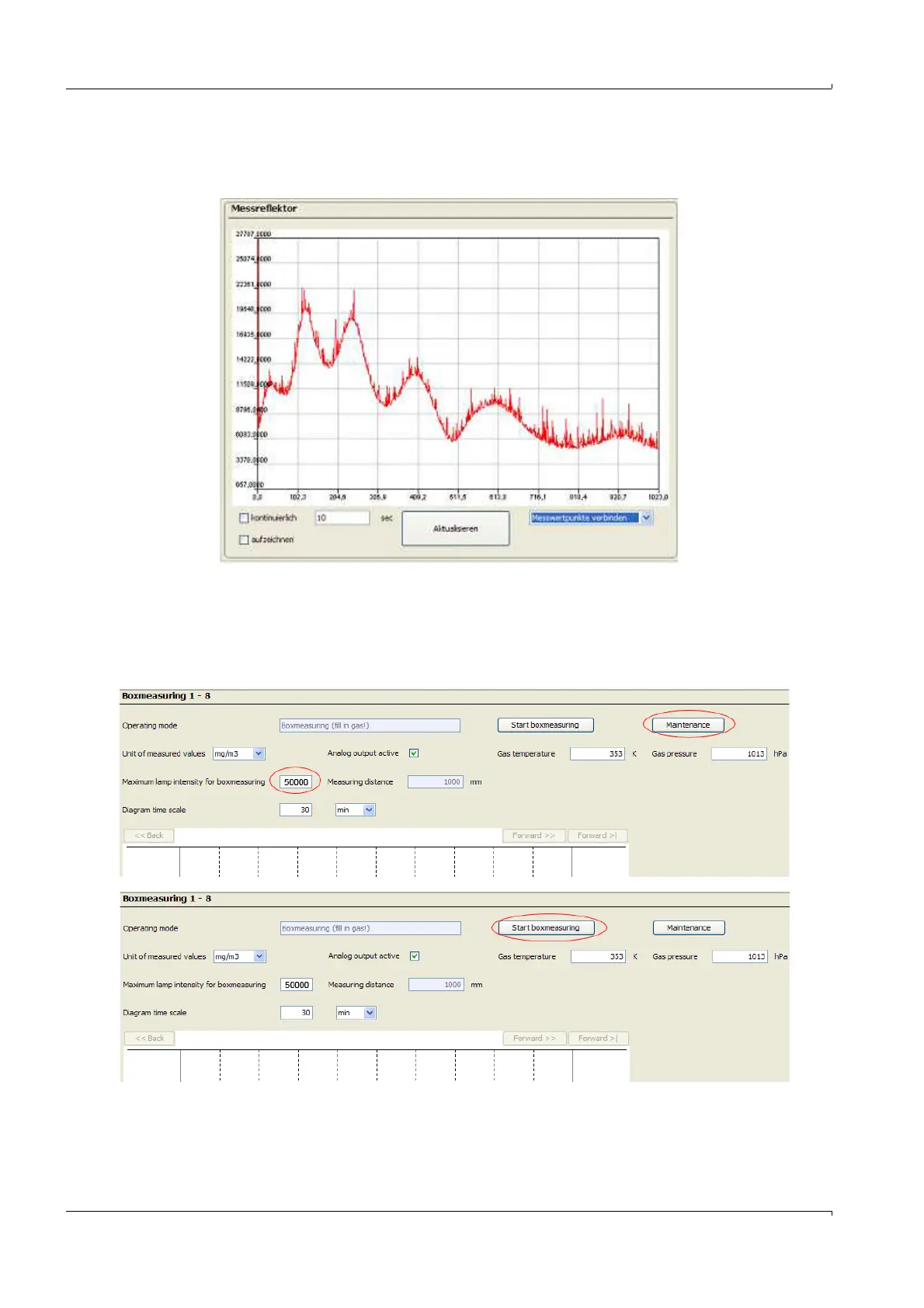

11 SOPAS ET menu Diagnosis  Sensor values  Spectra  Measurement reflector
(
 p. 51)
The maximum must be between 30000 and 50000.
If this is not the case:
– Experiment with the value for the “Maximum lamp intensity for boxmeasuring”.
Click “Maintenance” after changing the value.
Change the lamp intensity (maximum 50000) for the filter box accordingly and
repeat “Start boxmeasuring”.
12 SOPAS ET menu Diagnosis  Sensor values  Spectra  Absorption (
 p. 53).
Measurement signal must be approximately at zero and be straight as average value.
